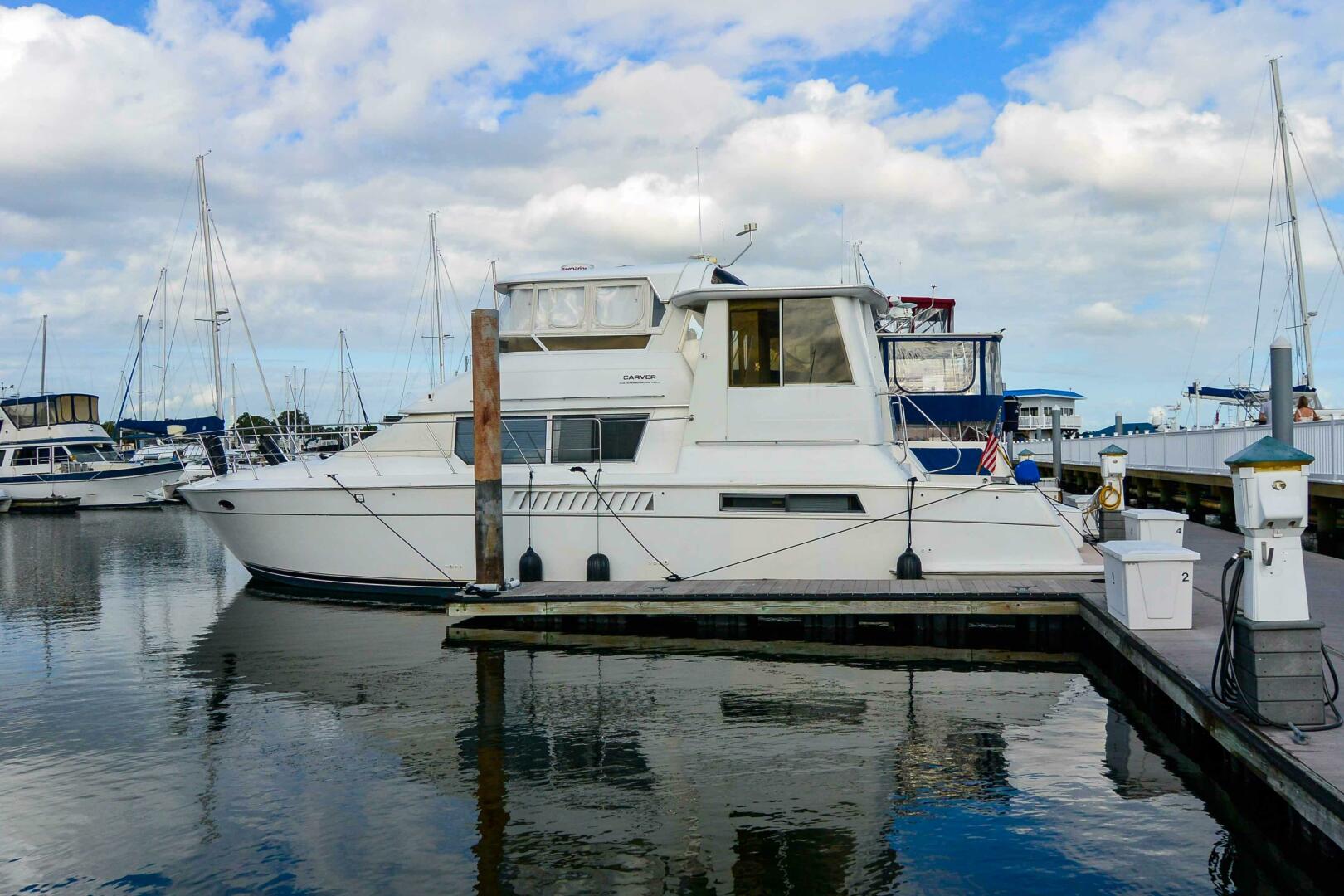

An extremely popular model, the Carver 500 Cockpit MY (called the Carver 504 in 1999–2000) is a cockpit version of the Carver 455/456 Aft Cabin with additional fuel. The interior is maple which provides a warm but bright interior. The galley is aft in the salon rather than forward as it is in most motor yachts this size. This floorplan makes it easier to access the galley from the aft deck and bridge, while at the same time pushing the salon seating and entertainment areas forward. A sliding door in the aft master stateroom opens to the cockpit with its molded boarding steps and walk-thru transom door. The large U-shaped galley features Marvel refrigeration, convection microwave oven, granite counters, and tons of storage. Additional features include a washer/dryer cabinet in the forward stateroom which has a full head and walk in shower with dual access form solon or stateroom. The aft deck has an integrated swim platform and Seadek flooring. Stairs to large sundeck with tempered glass enclosure panels aft, port, starboard wing doors to side decks with hard top and a large flybridge helm both airconditioned.  The salon, staterooms, sundeck and flybridge floors/decks are carpeted.   Low hour, Cummins 450hp diesels provide cruise at approximately 18 knots.

Accommodations

Two large luxurious staterooms with private full bathrooms and enclosed showers. The forward stateroom is large with an Island queen berth, washer and dryer cabinet and ample courter tops with storage. The aft master stateroom is full beam with access to the aft deck. Walkaround queen, pullout make up draw with mirror, large full bath to starboard with split enclosed shower and head. Abundant storage.

Salon

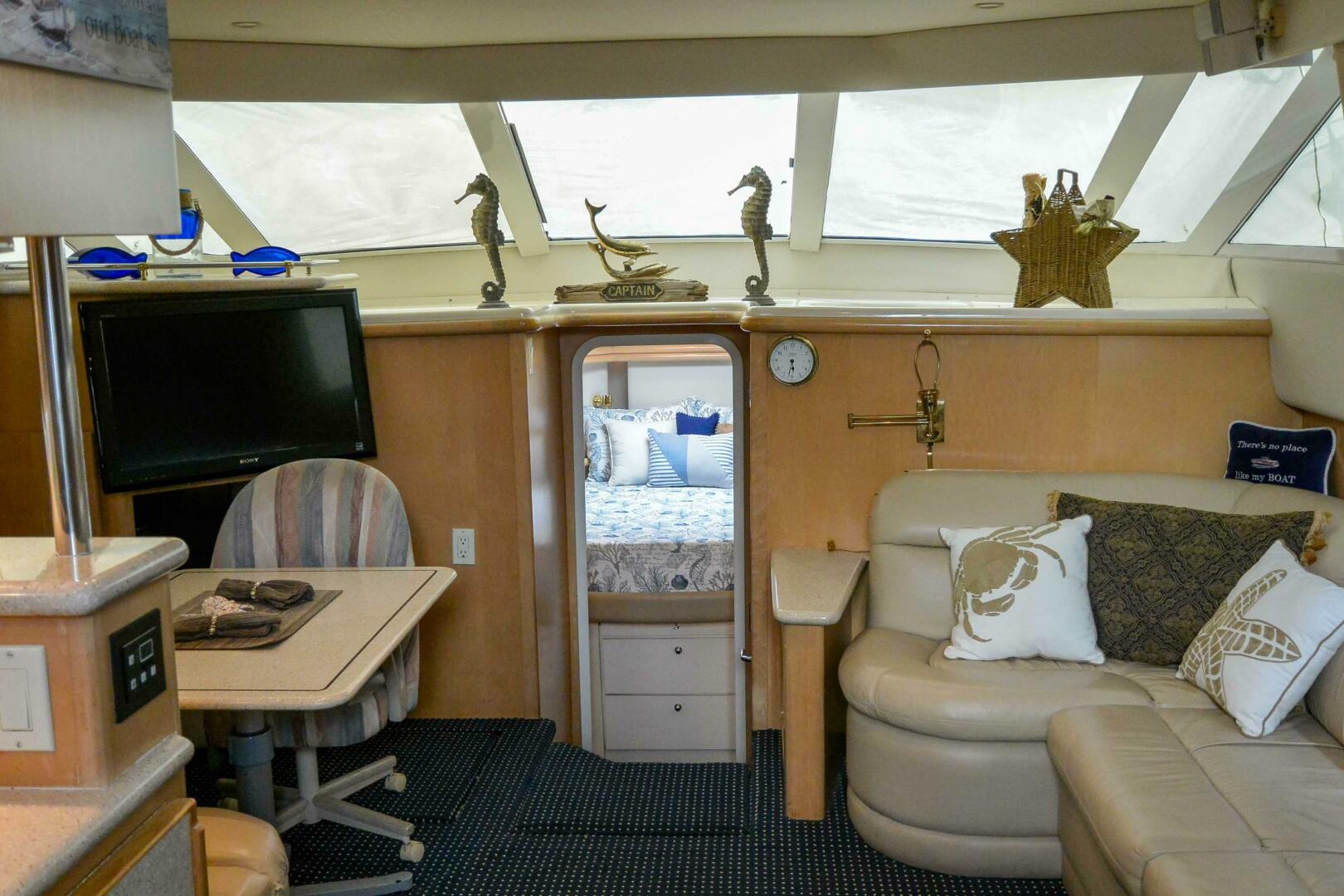

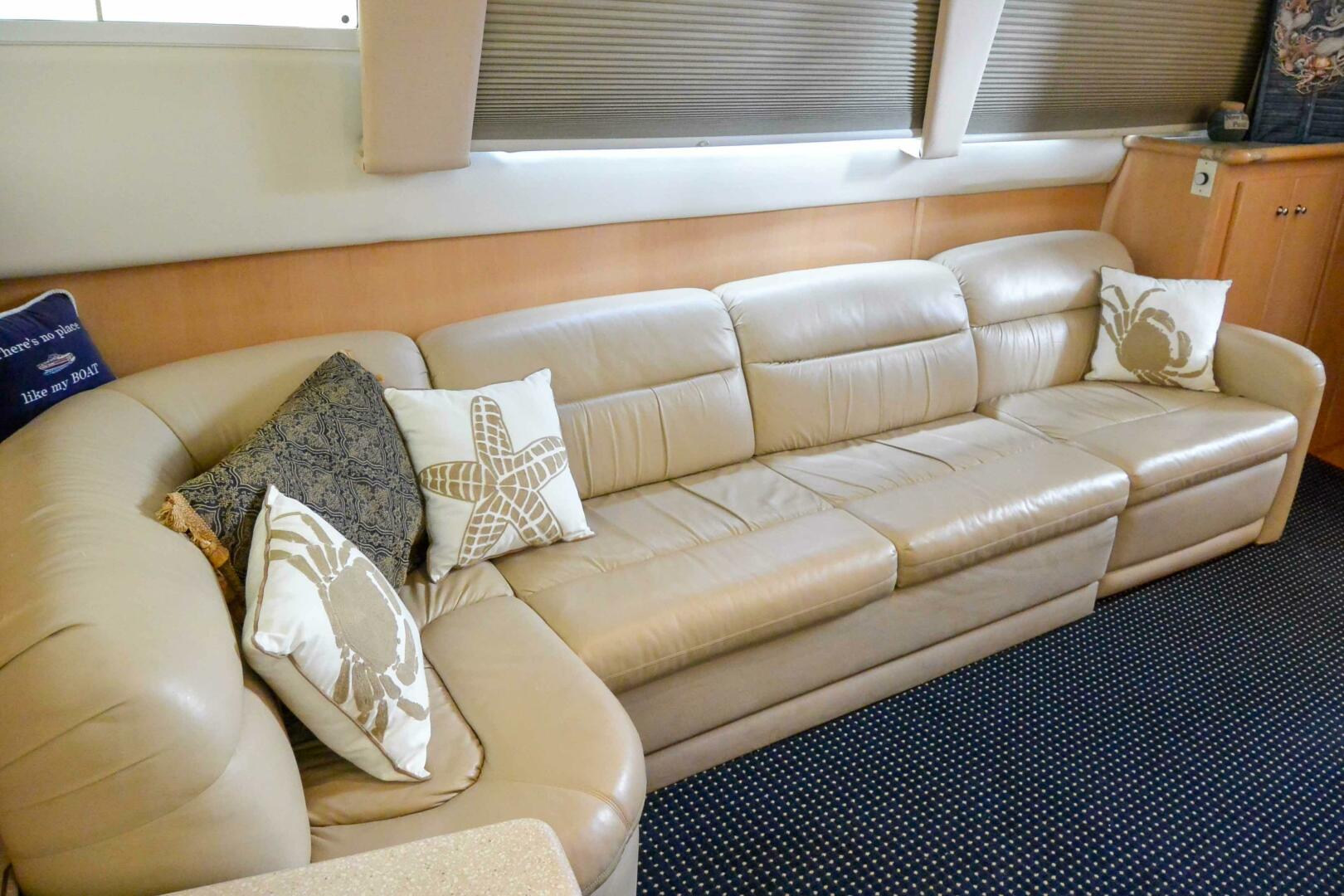

Upon entering down 3 stairs from aft decks sunroom the spacious and elegant maple finished solon has gally to port, forward of the galley is a large dining area with L shaped bench seating table and chair. To starboard solon is a very large L shaped sofa with storage under. The electrical panel is concealed in a cabinet to the starboard aft of sofa. The solon has wra- around windows port, forward and starboard. With exterior sunscreen on the forward window and window treatments on port and starboard with blackout shades that raise out of site behind window treatments. The interior is tastefully decorated with a nautical theme.

Galley

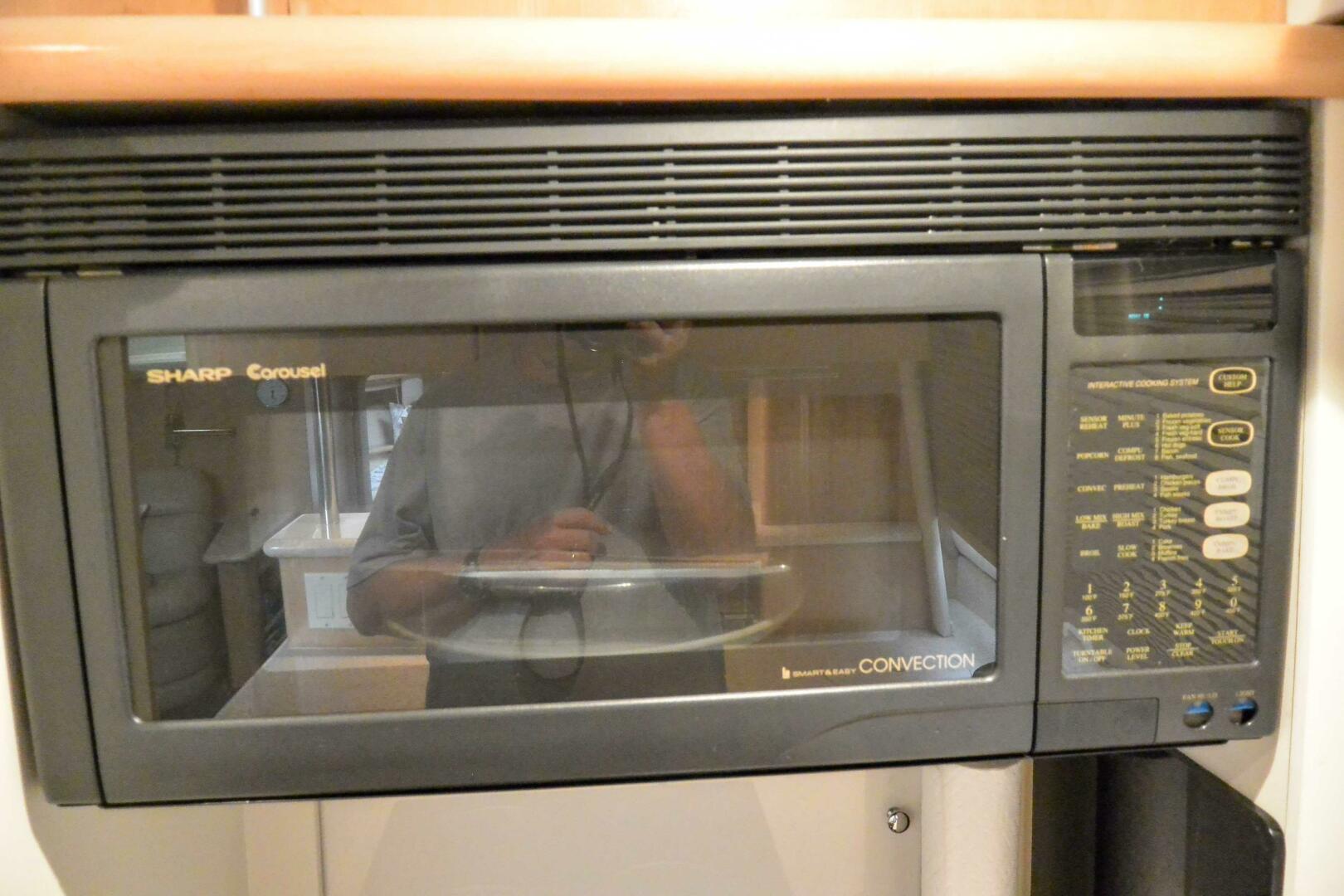

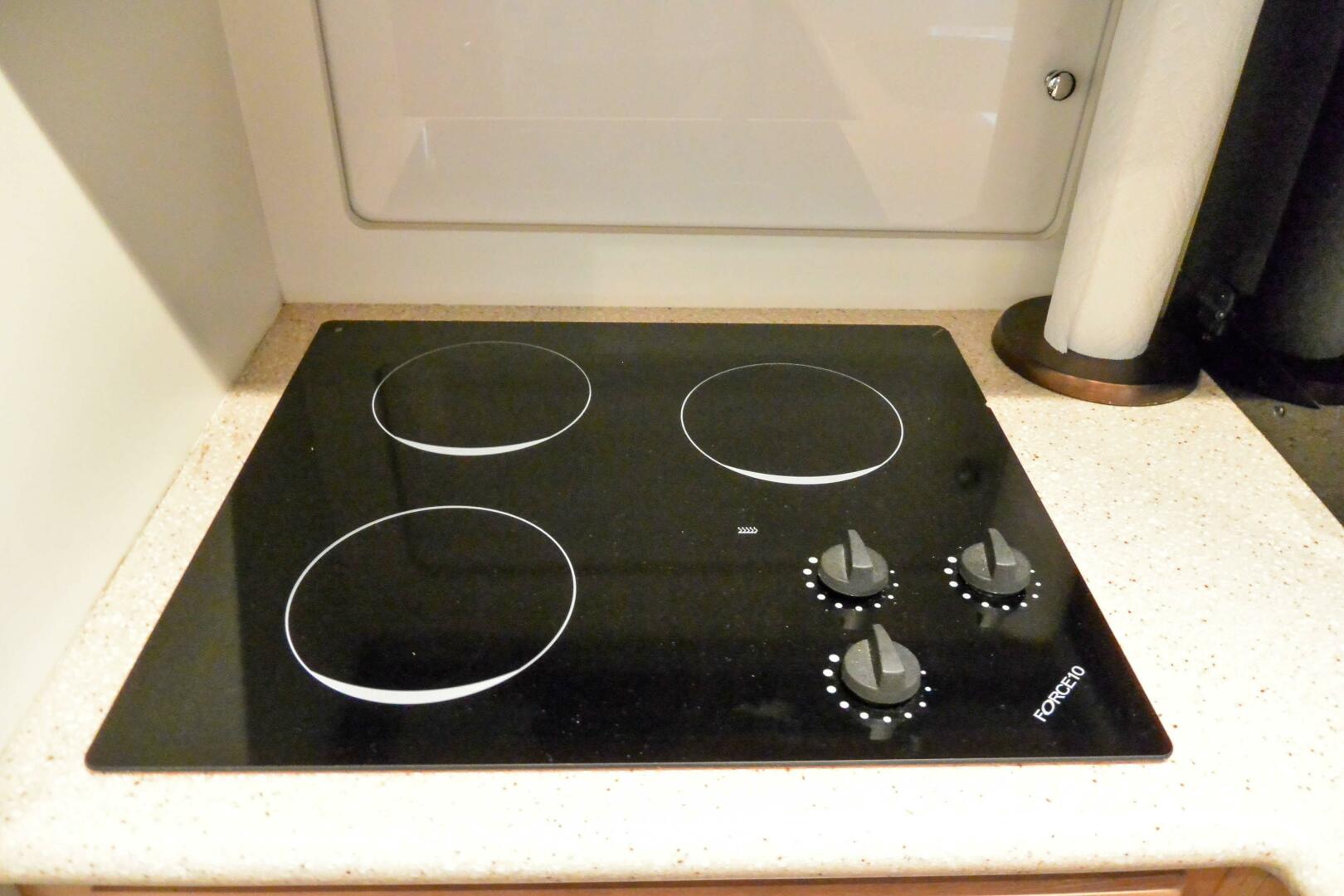

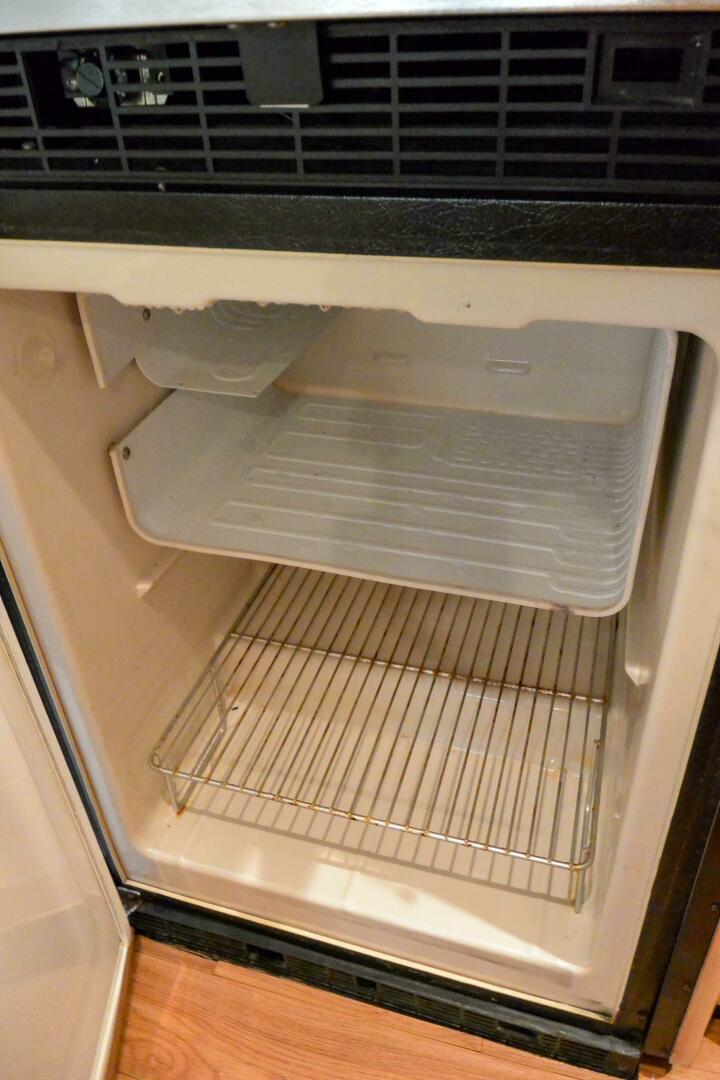

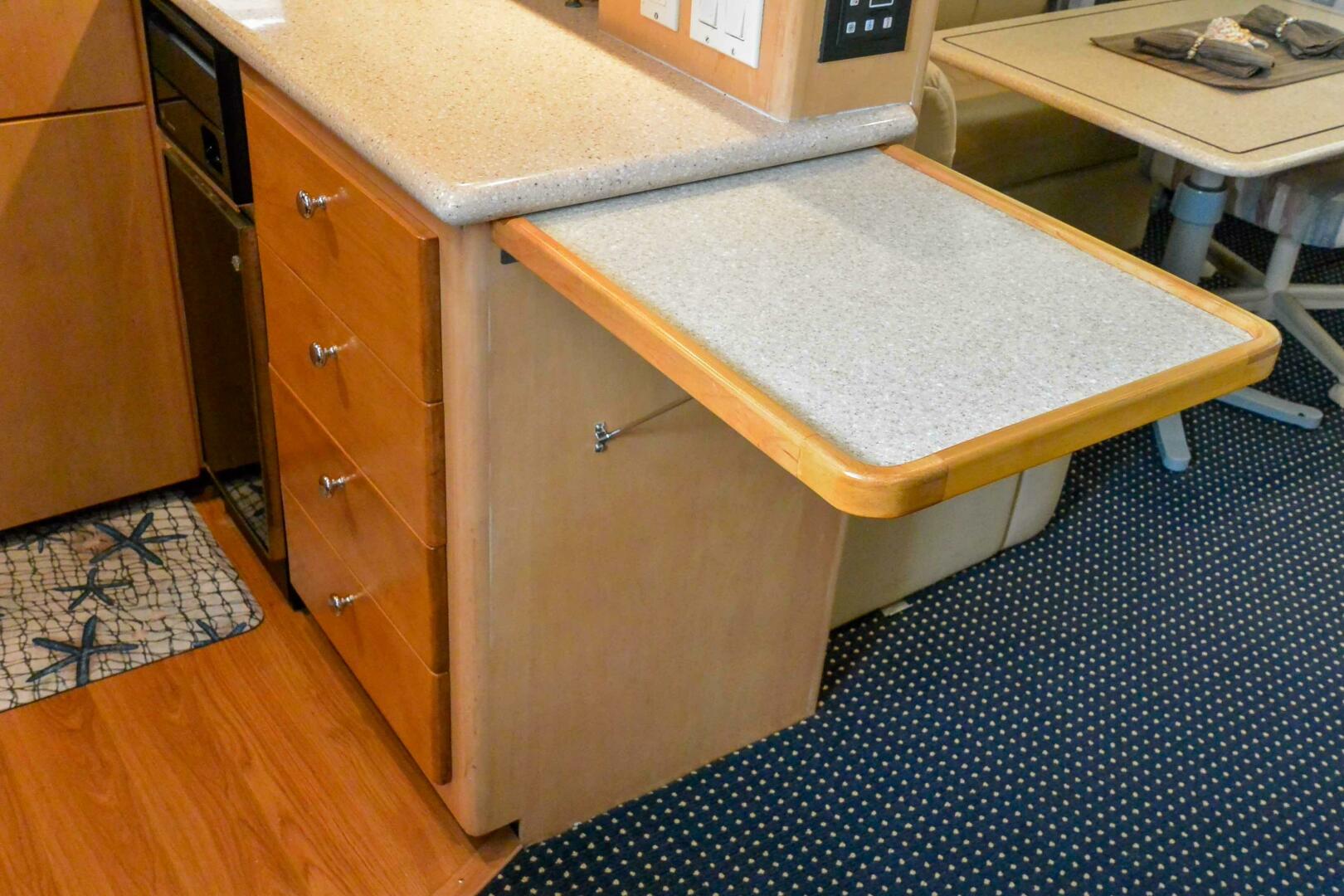

The galley is to port and has appliances on the aft bulkhead double sink to port, and counter with overhead cabinets forward in the U-shaped arrangement that is open to the solon. A custom fold up counter extension provides additional preparation counter space. Appliances are a Marvel apartment size refrigerator/ freezer 115V; Stove top 3 burner Force 10; Convection Microwave Sharp Carousel Model R-1850; GE Compactall trash compactor; double molded counter sinks with single facet pull out spray optional. Maple flooring.

Dinning

The dining area is elegant with a U-shaped seating (storage under) a movable table and side chair. The sundeck could also offer a alfresco dining area.

Master Stateroom

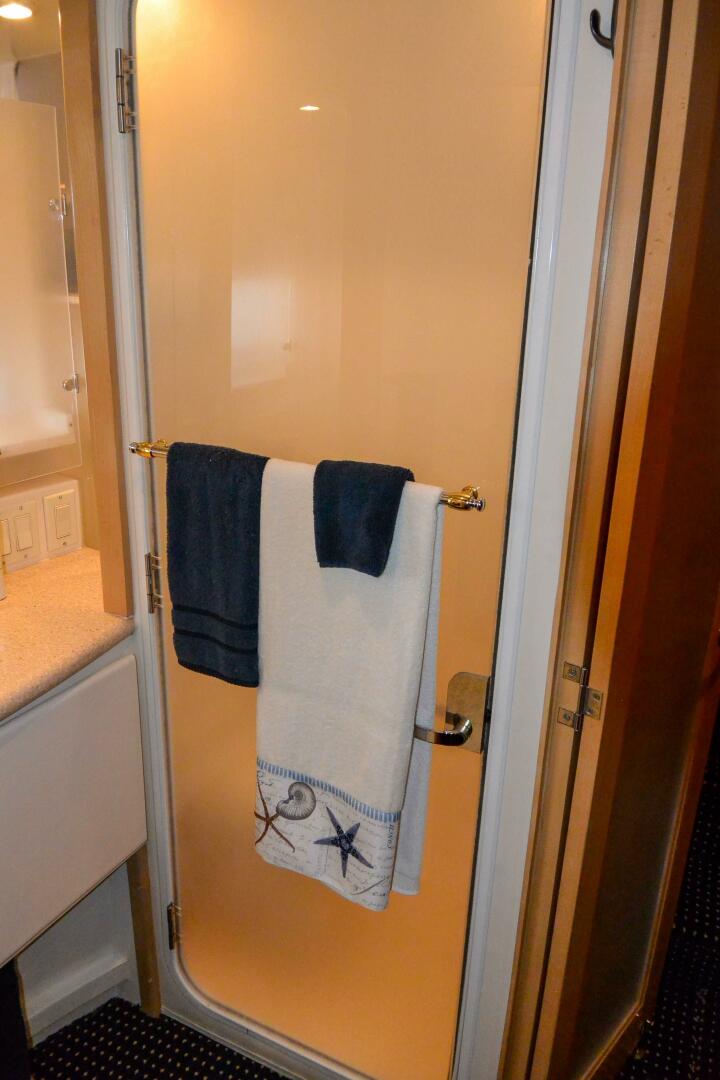

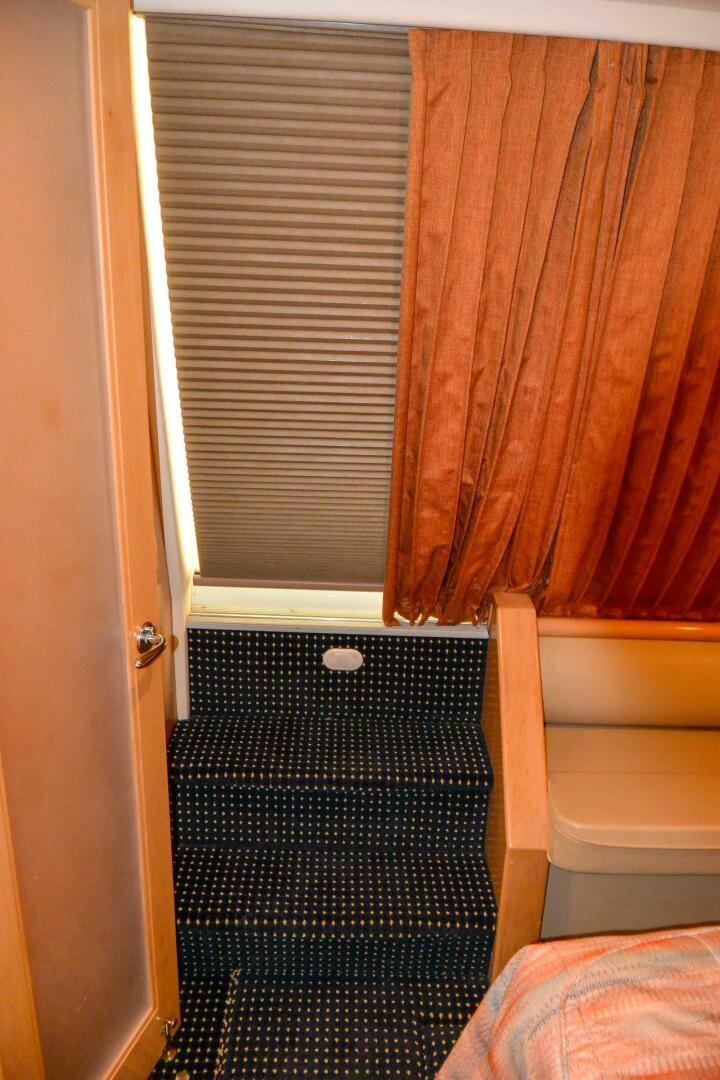

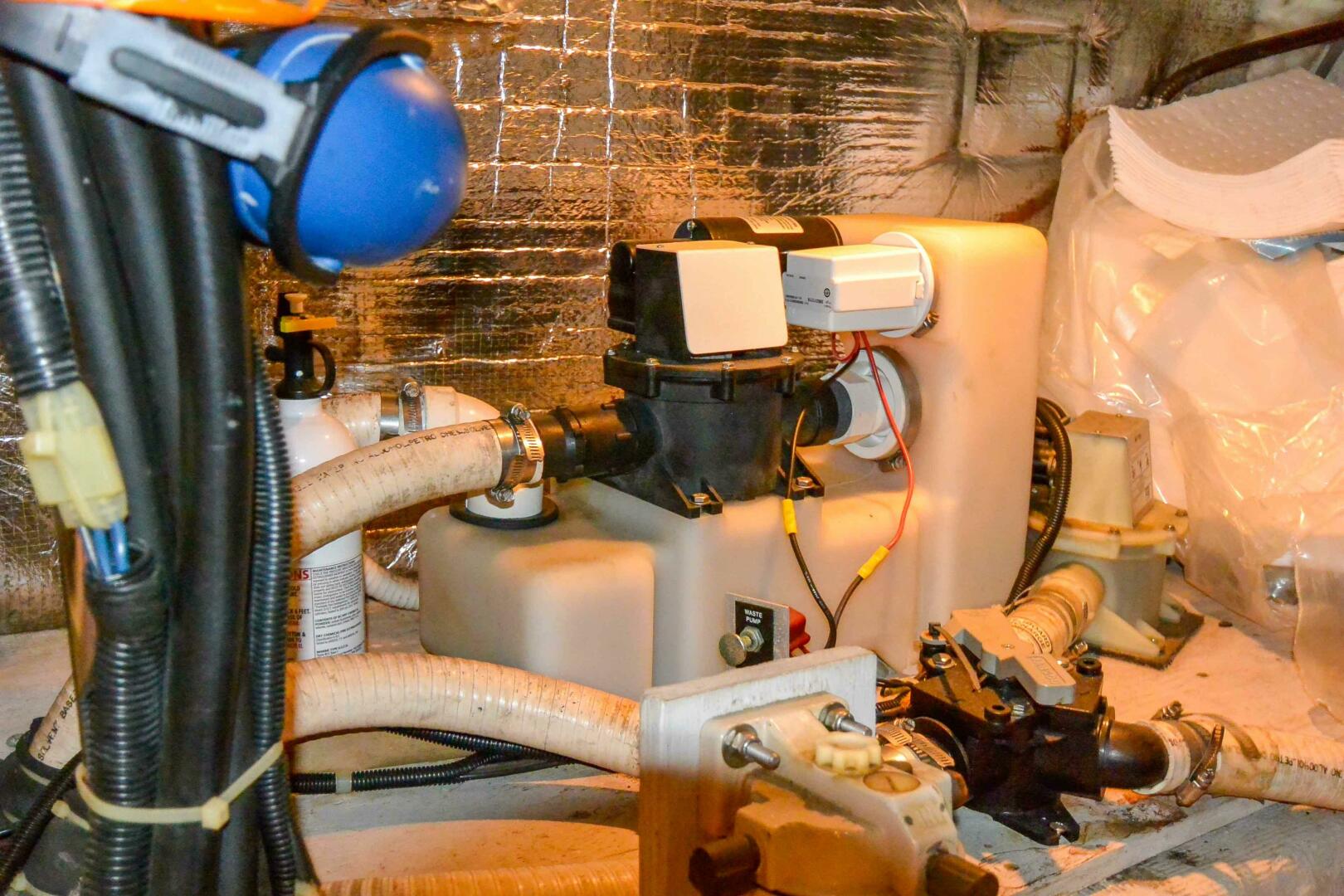

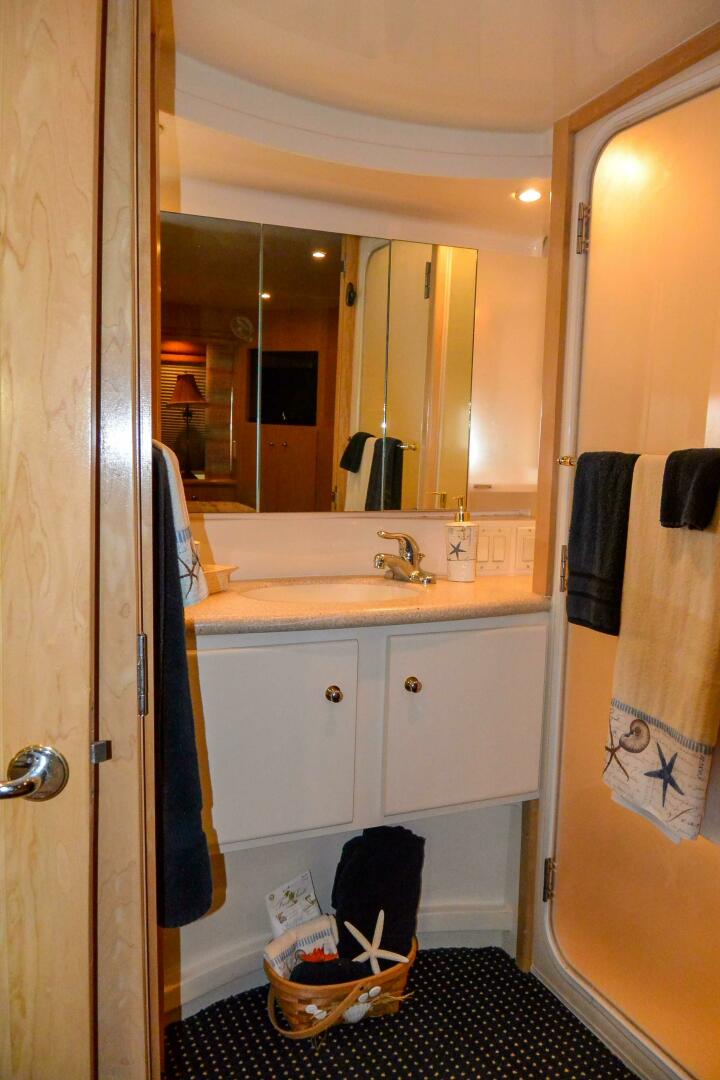

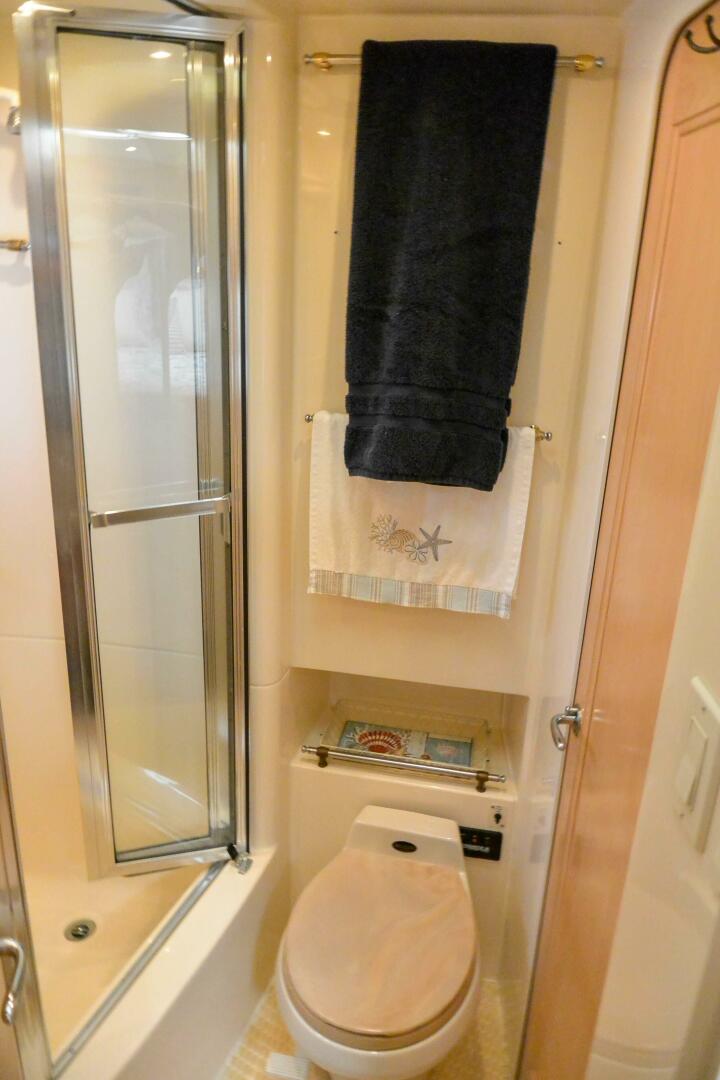

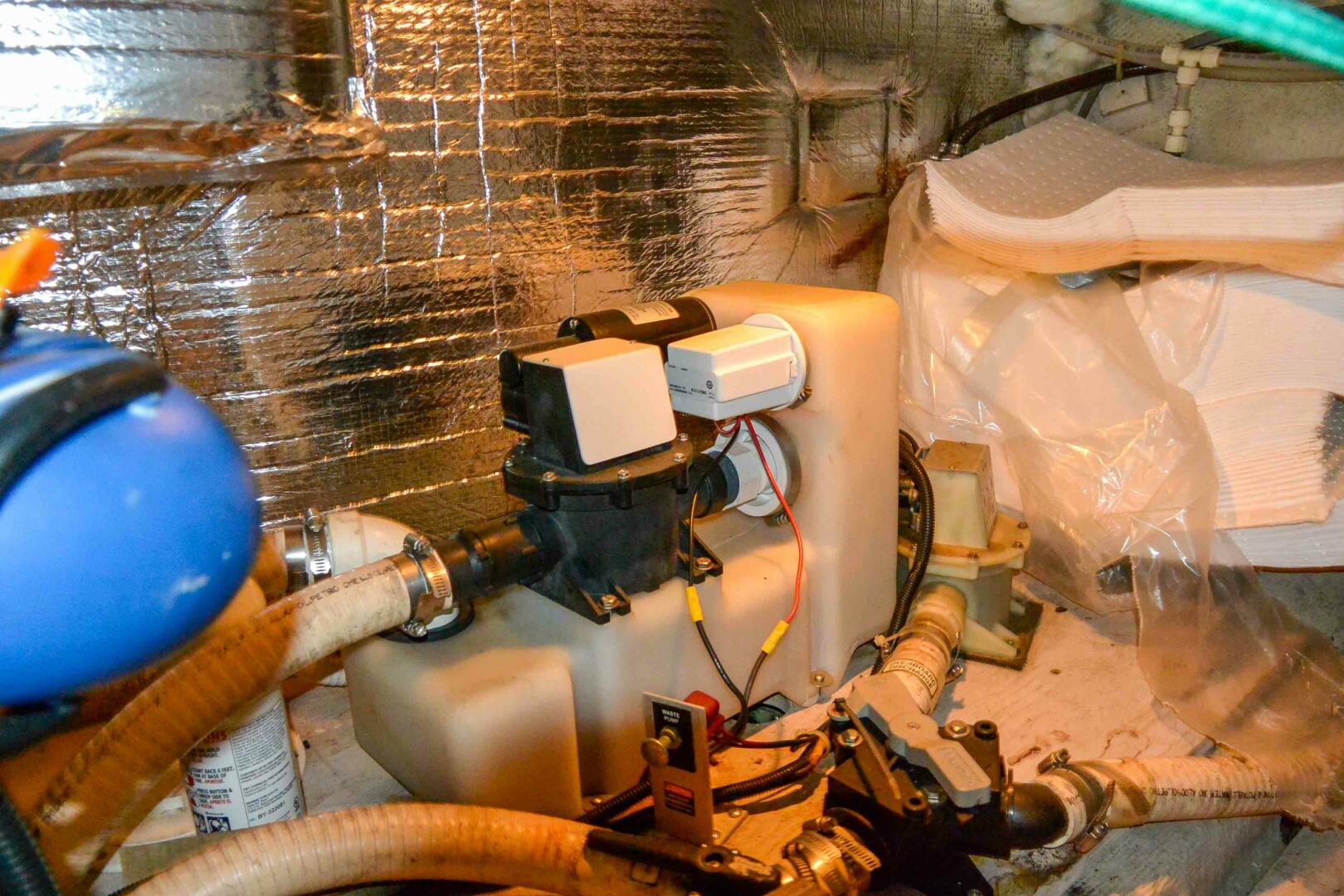

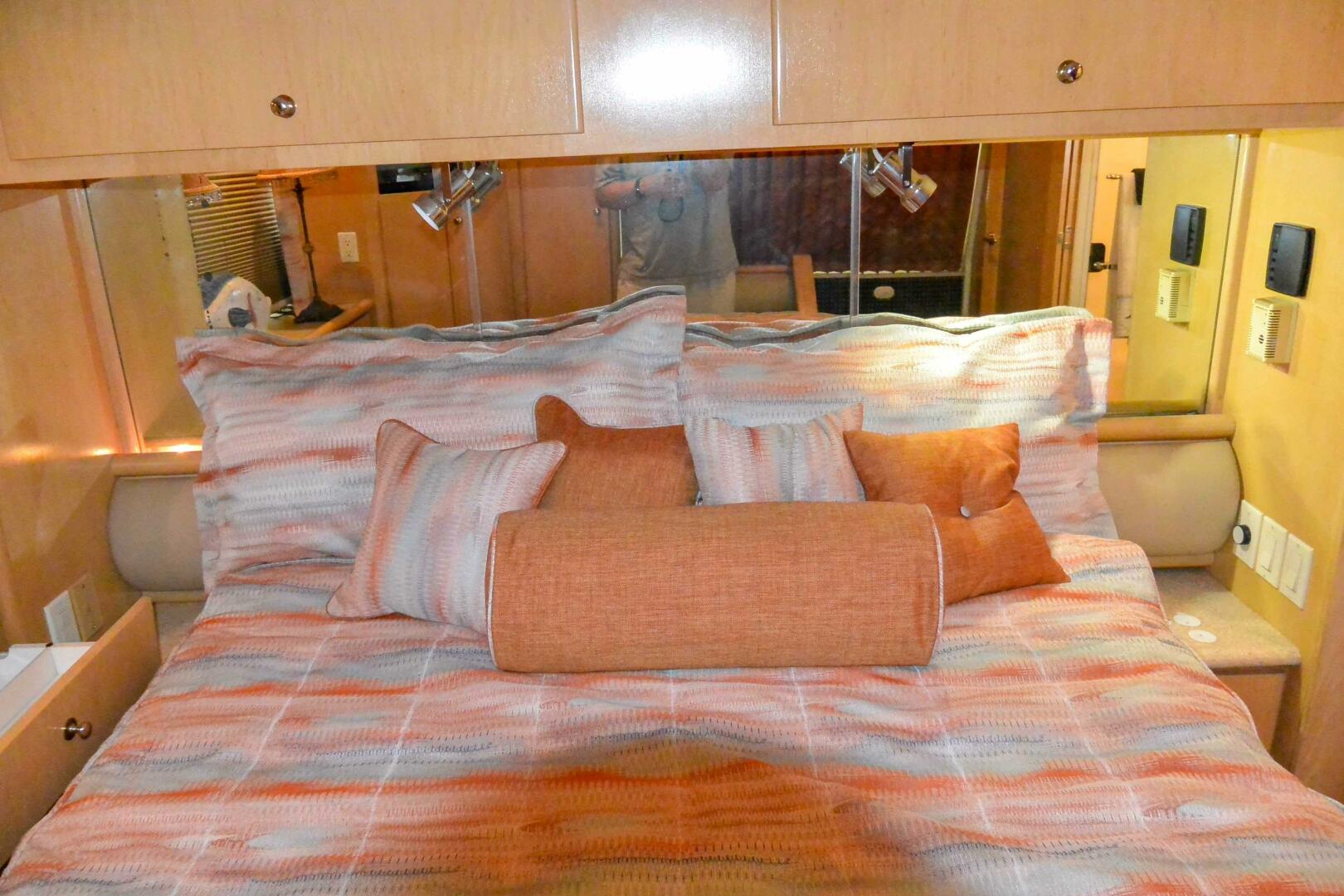

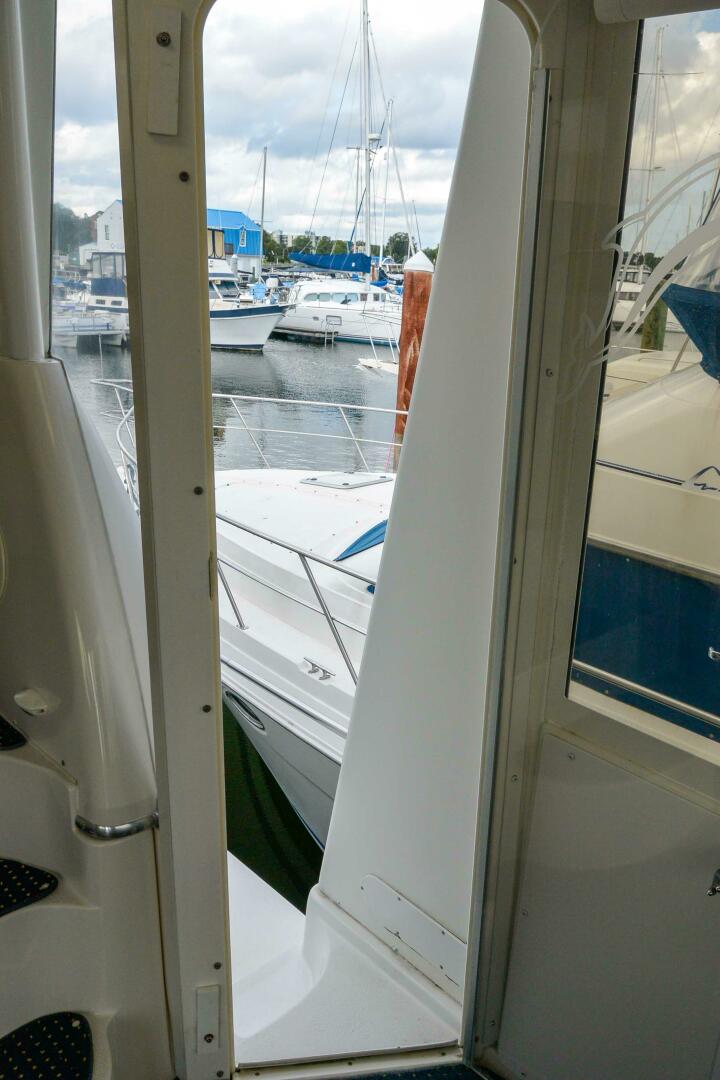

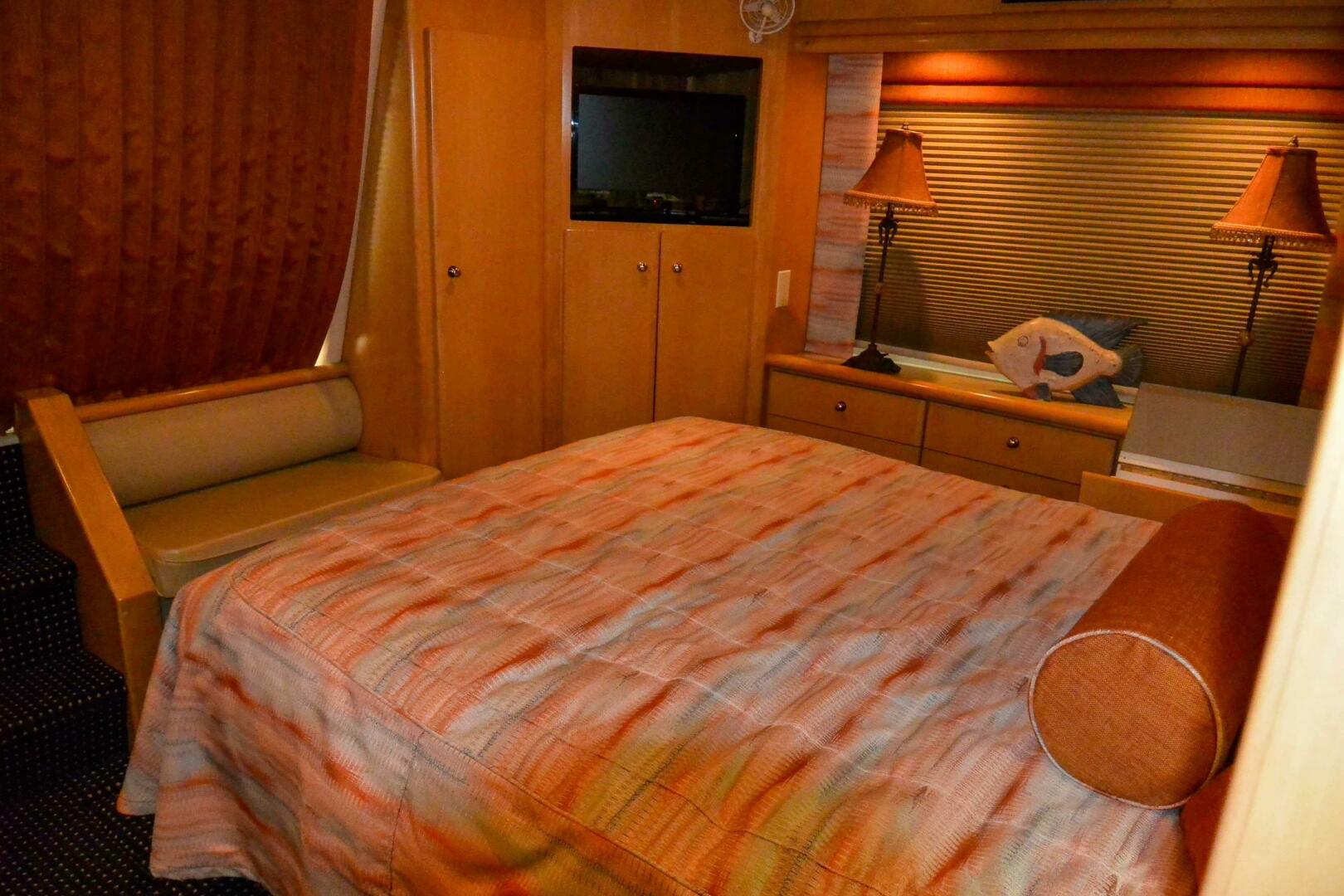

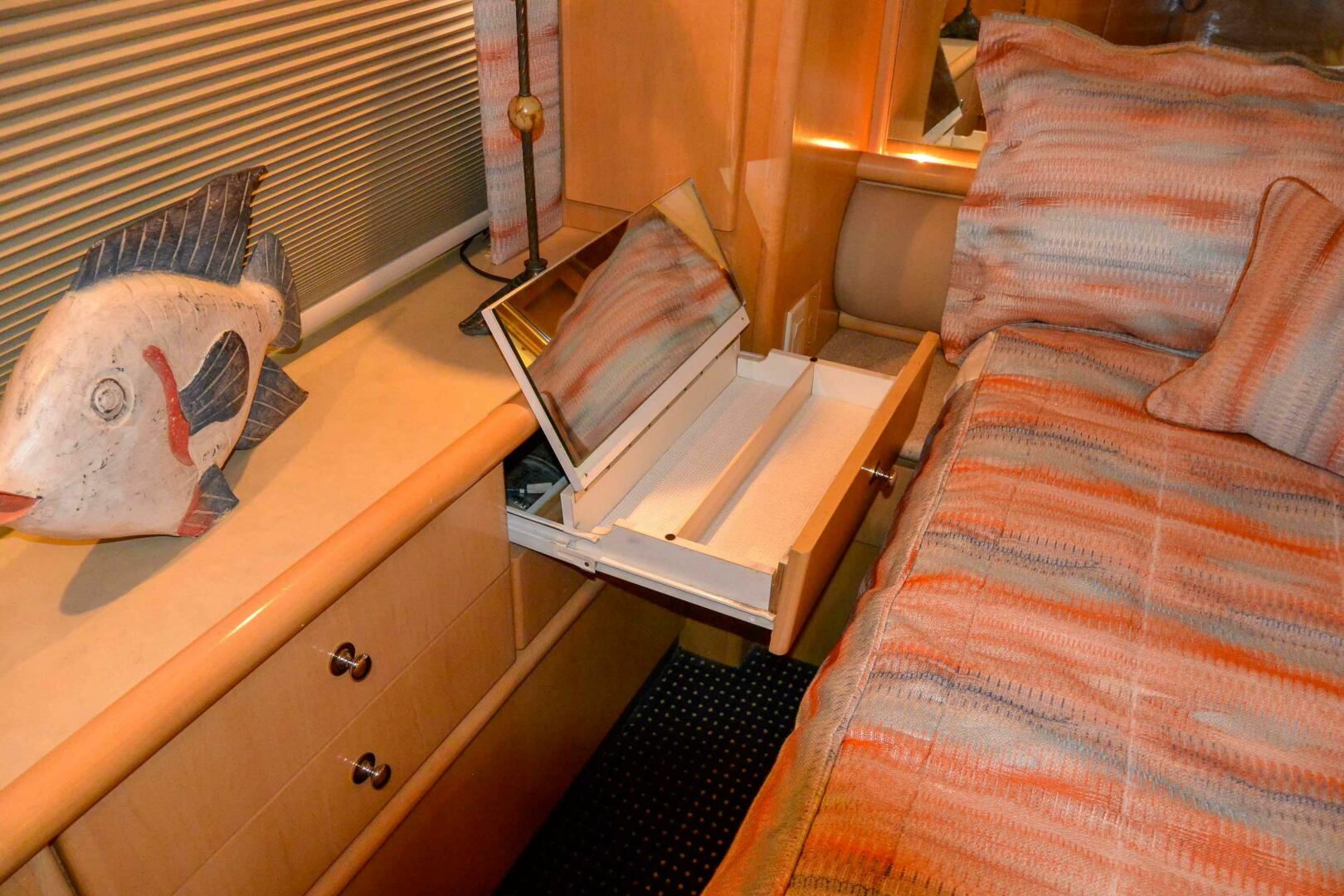

A full aft beam master stateroom is a sought-after motor yacht feature and this one is roomy, and so functional with queen walkaround bed, lots of cabinet storage, make up draw with mirror, large bath with vanity and separate shower and head with doors. Sea Land Vacu-Flush head. Access to cockpit through sliding door with inside window treatment and outside canvas covering when not in use.

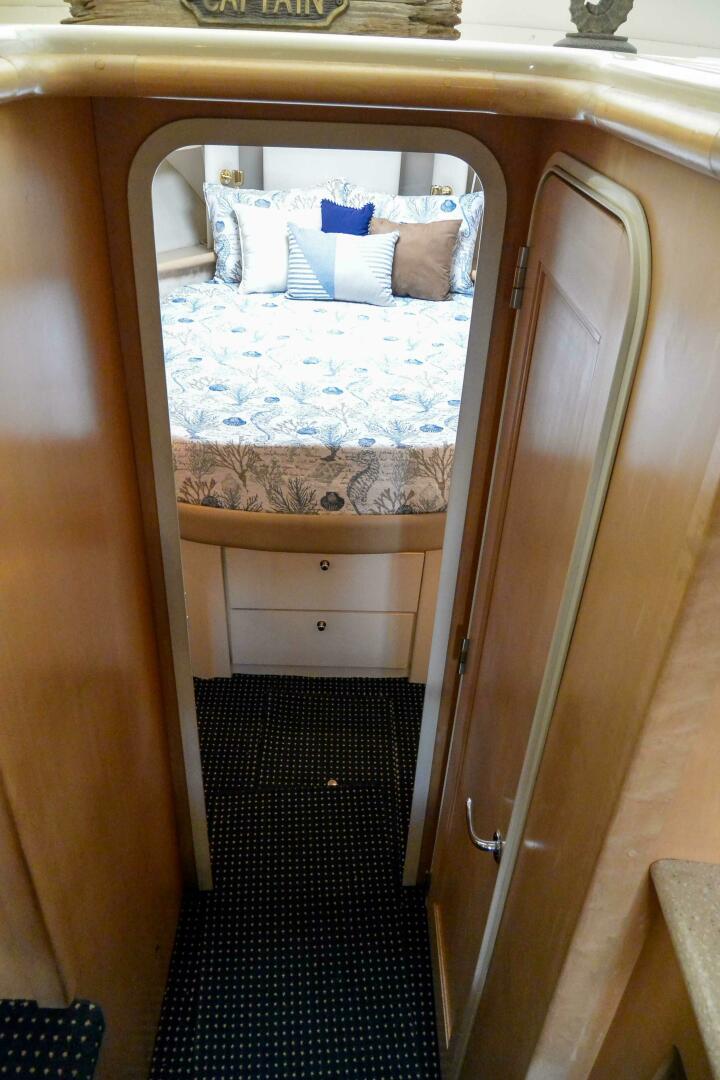

Forward VIP Stateroom

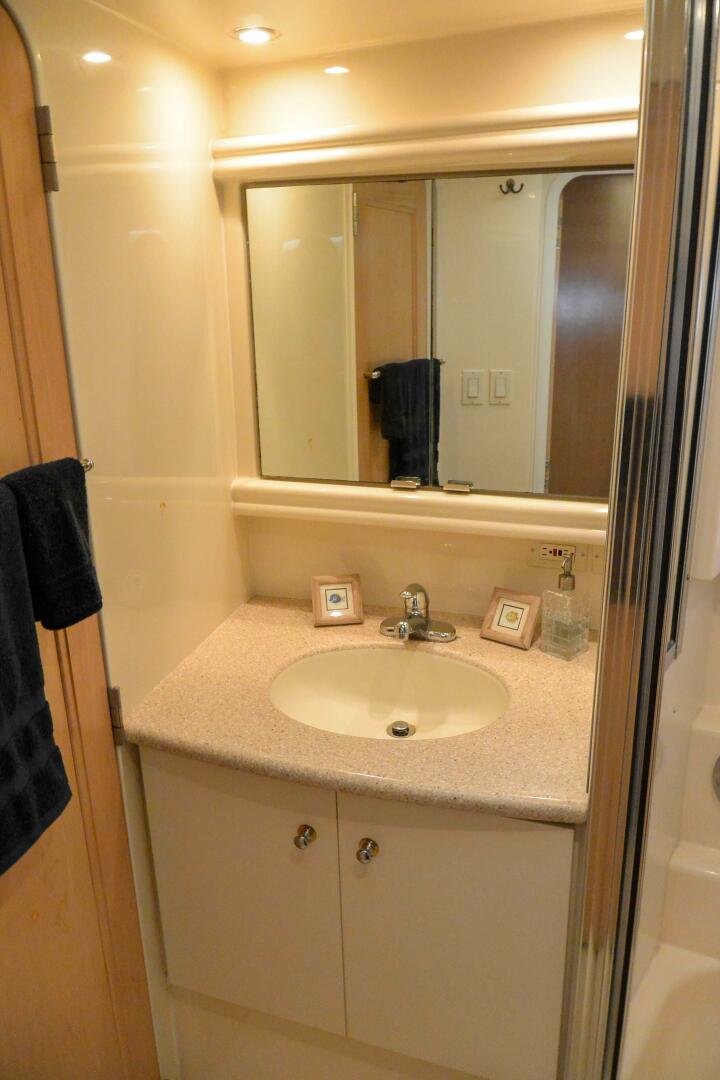

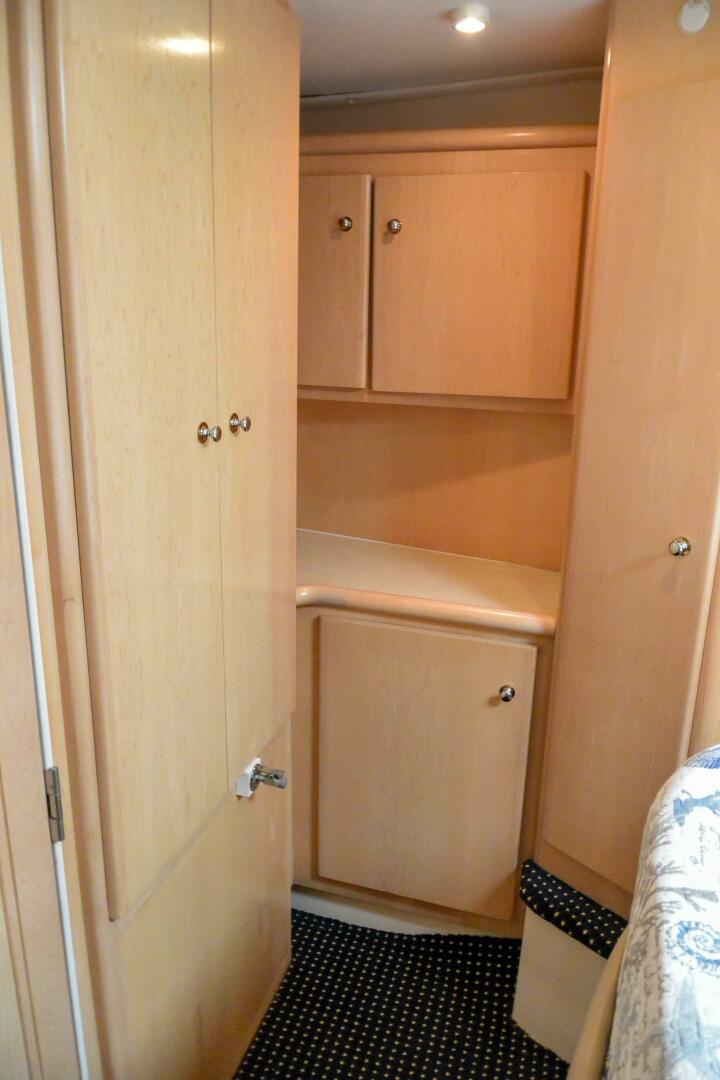

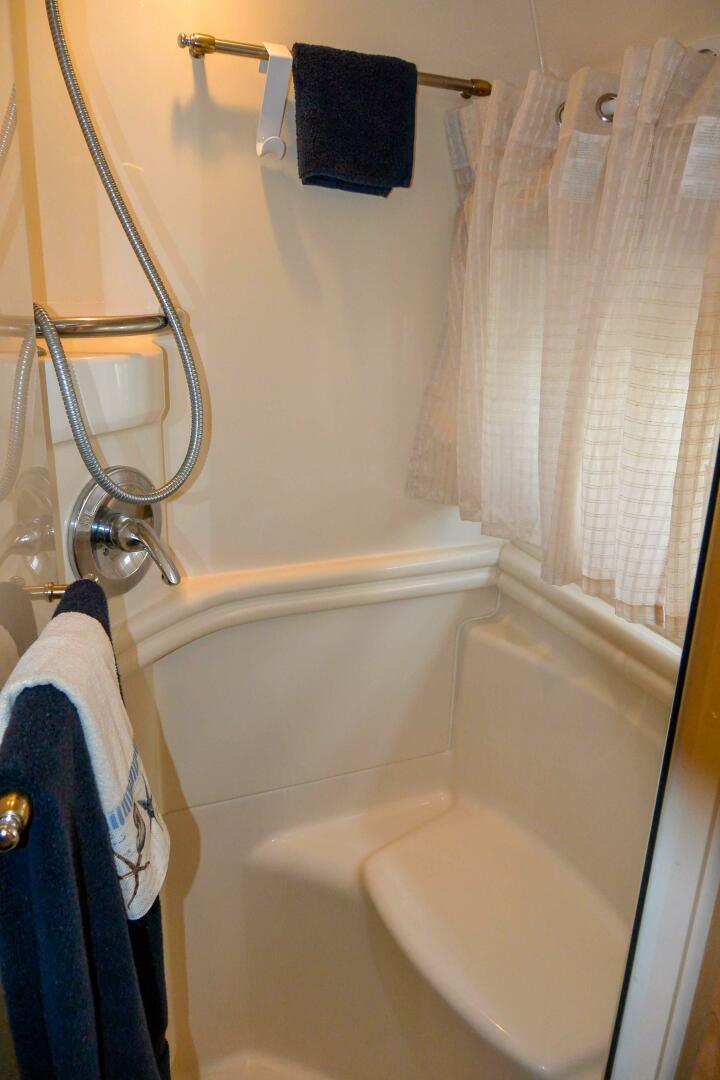

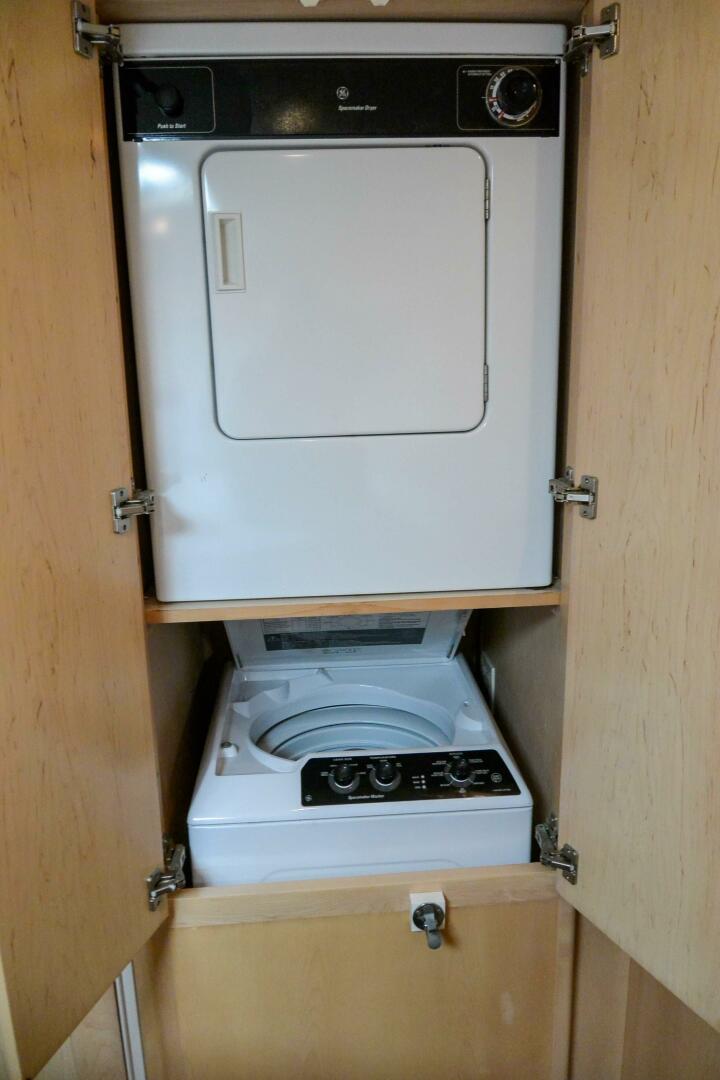

Forward is a spacious stateroom with full bath enclosed tub / shower, Sea Land Vacu-Flush head. Island queen bed, overhead hatches provide a warm bright space, that has a large dressing area with storage and washer and dryer concealed in cabinet. Access to head if from stateroom and salon passageway.

Aft Deck Cockpit

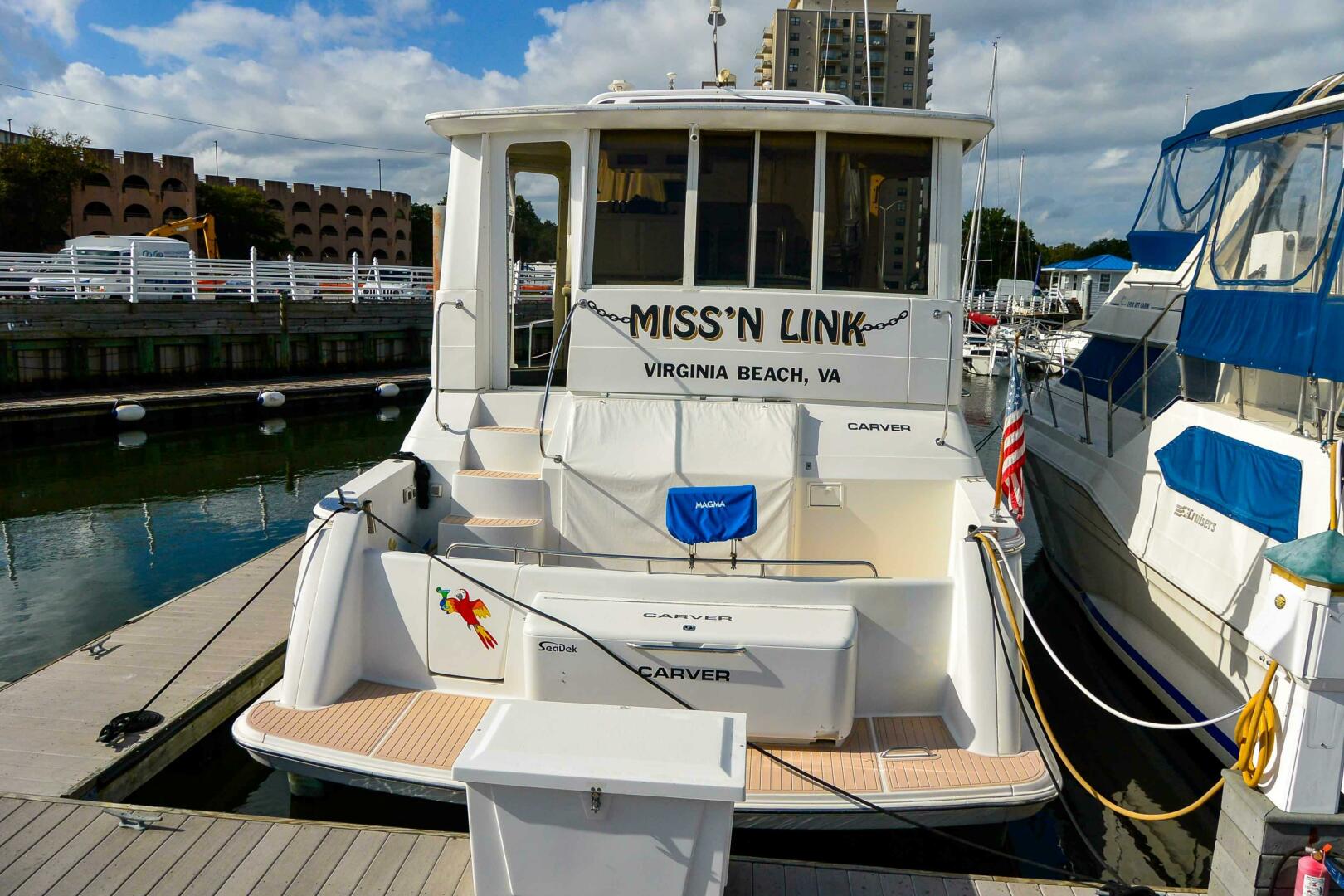

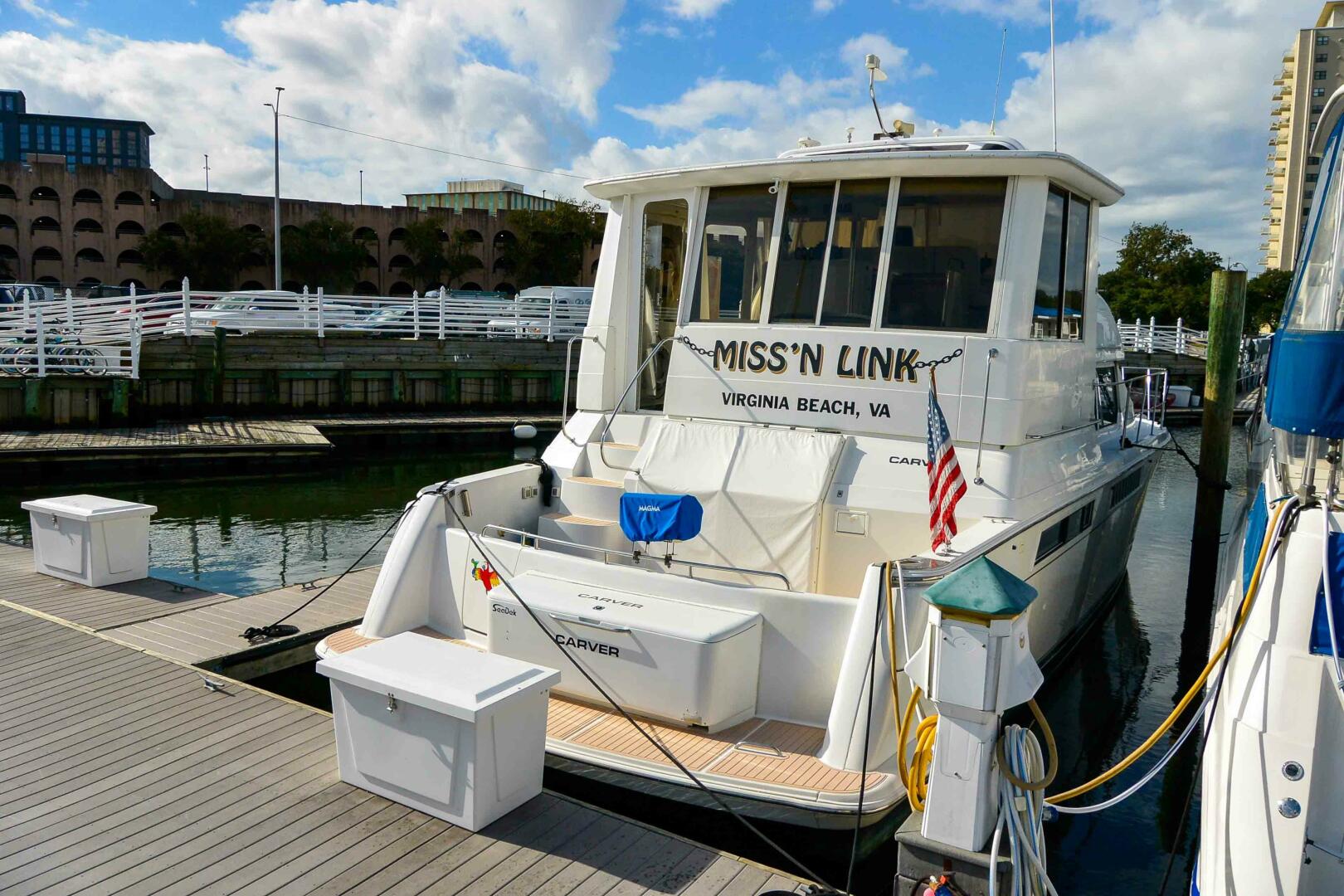

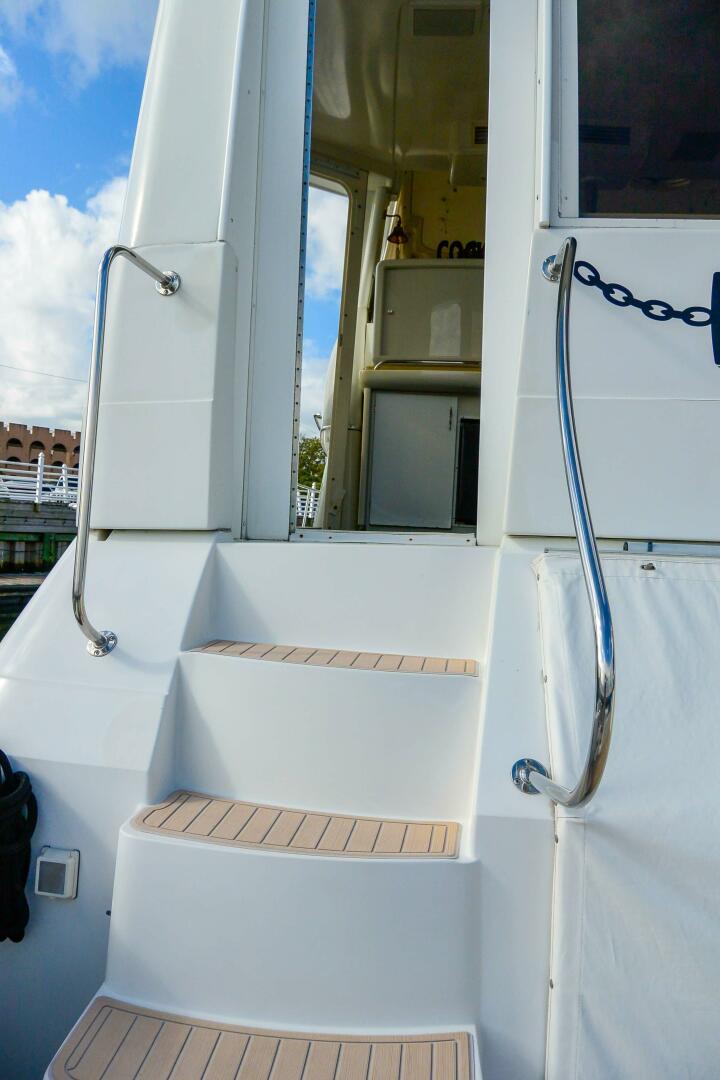

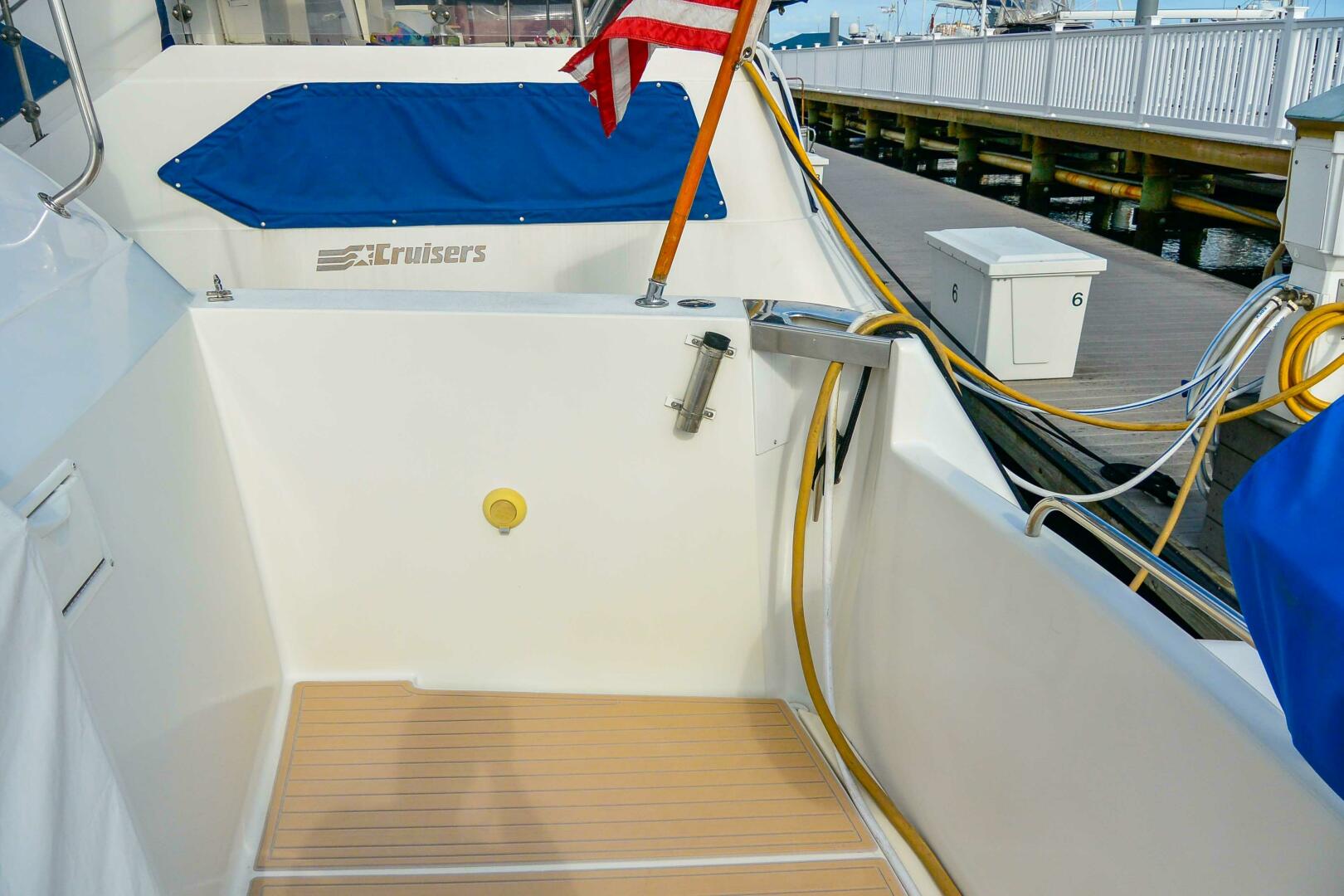

Boarding is by integrated swim platform that has large built in storage box and Seadek flooring swinging transom door enters the cockpit with Seadek flooring, outdoor shower H&D fresh water, freshwater hose bib, rod holders, lazarette access floor hatch, sliding door to master stateroom, 50 amp power cord connection to port, auto power cord deployment and retravel, circuit breakers for shore power, molded stairs three steps with stainless handrails to sundeck. This cockpit provides excellent line handling abilities and high freeboard.

Sunroom / Flybridge Helm

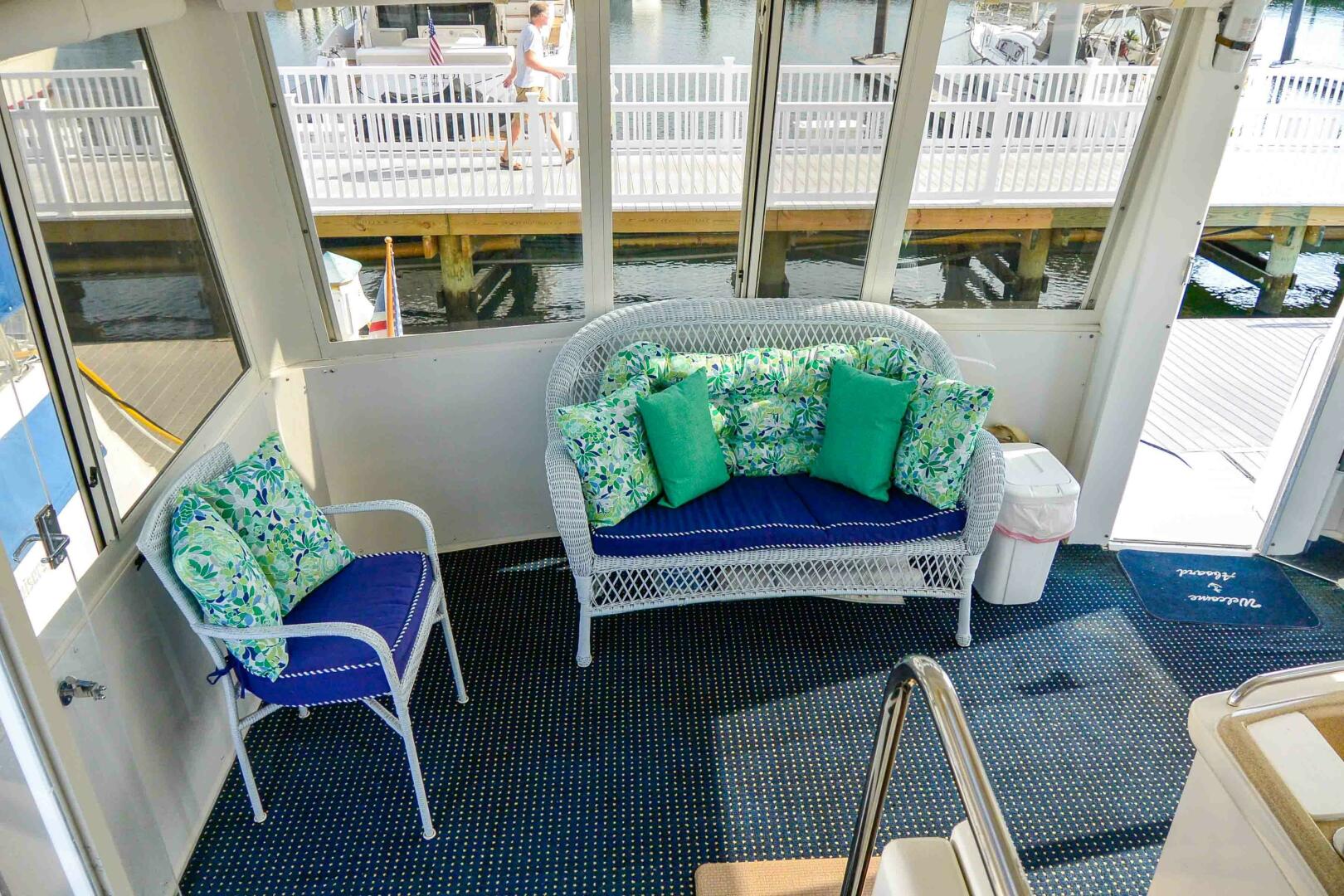

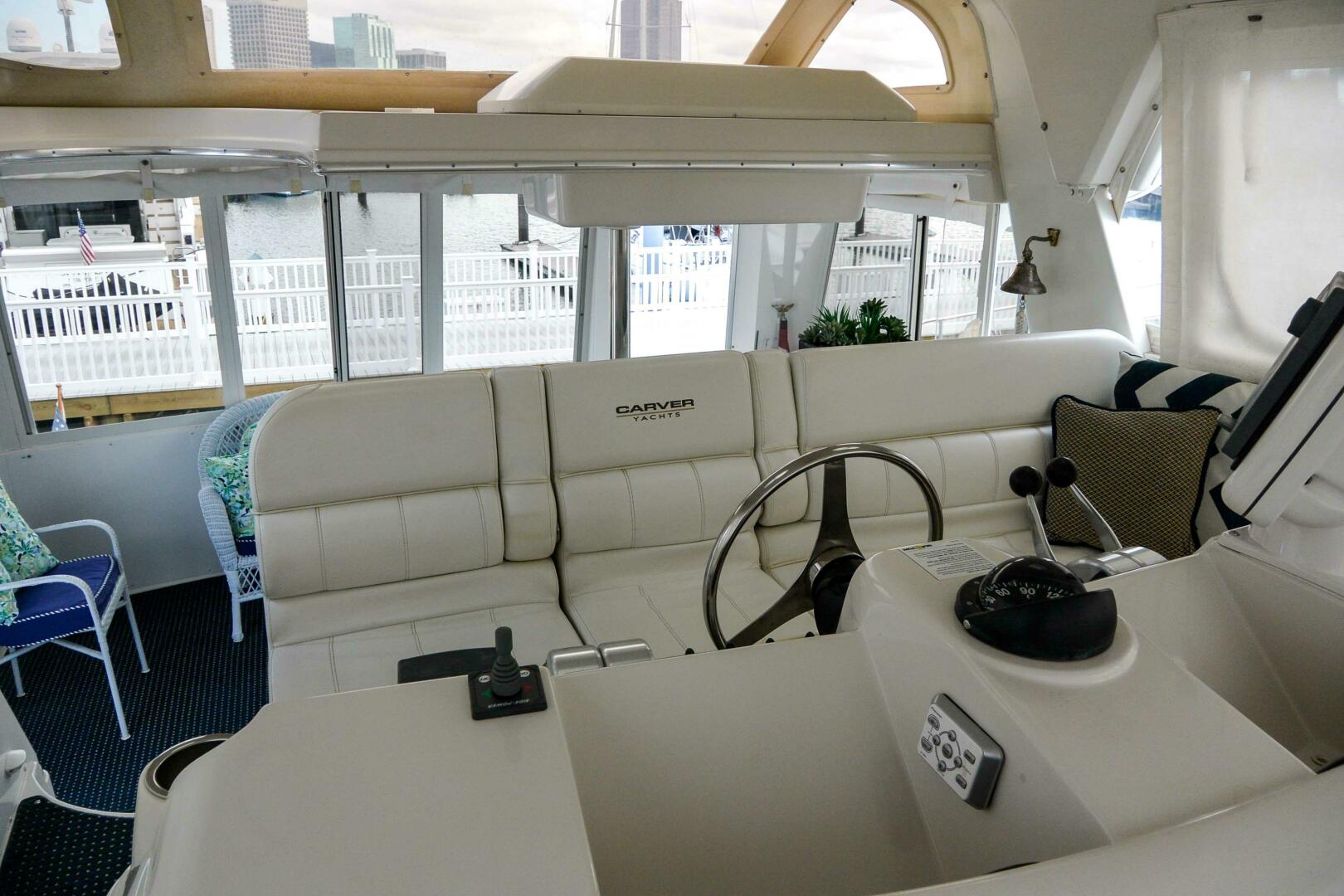

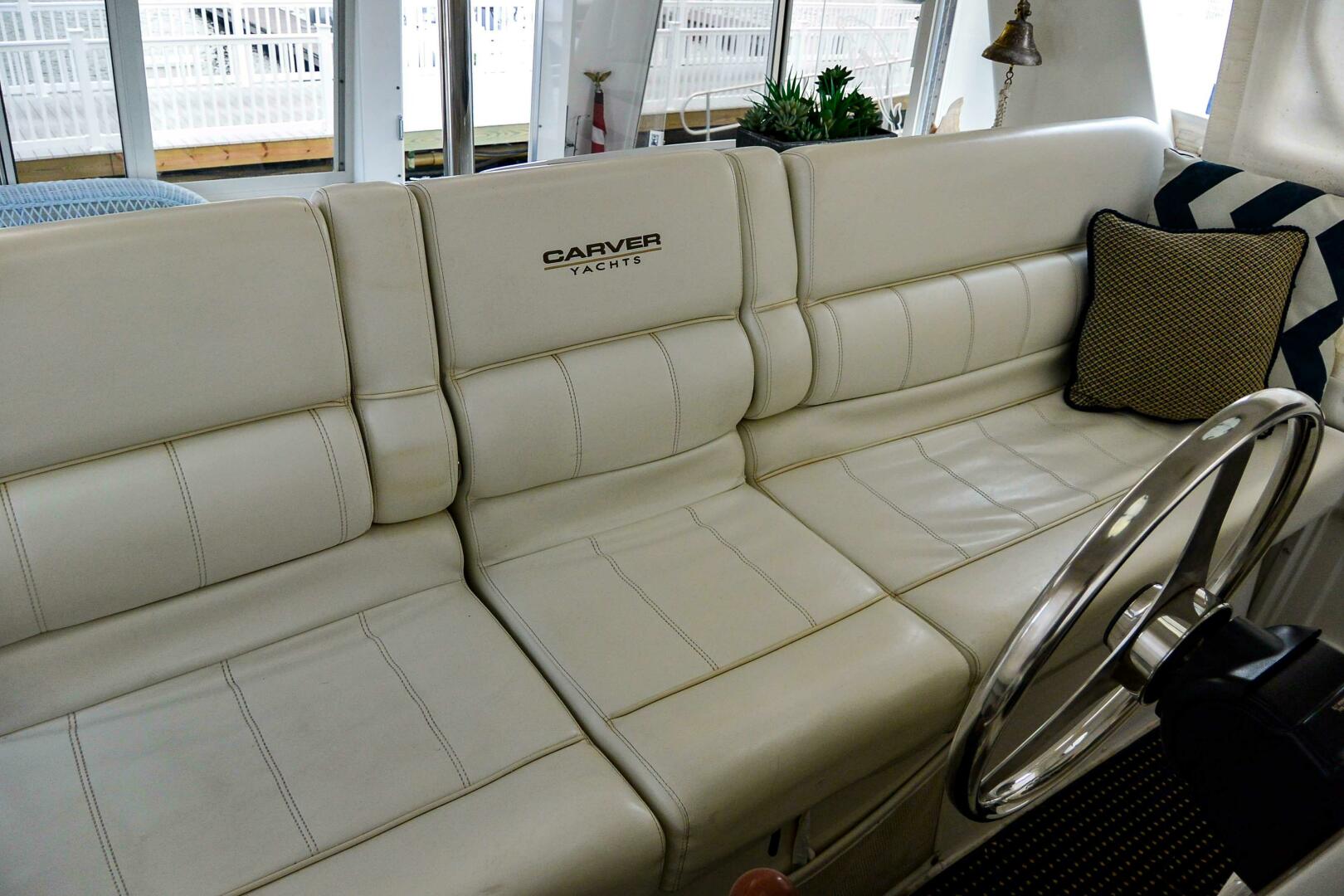

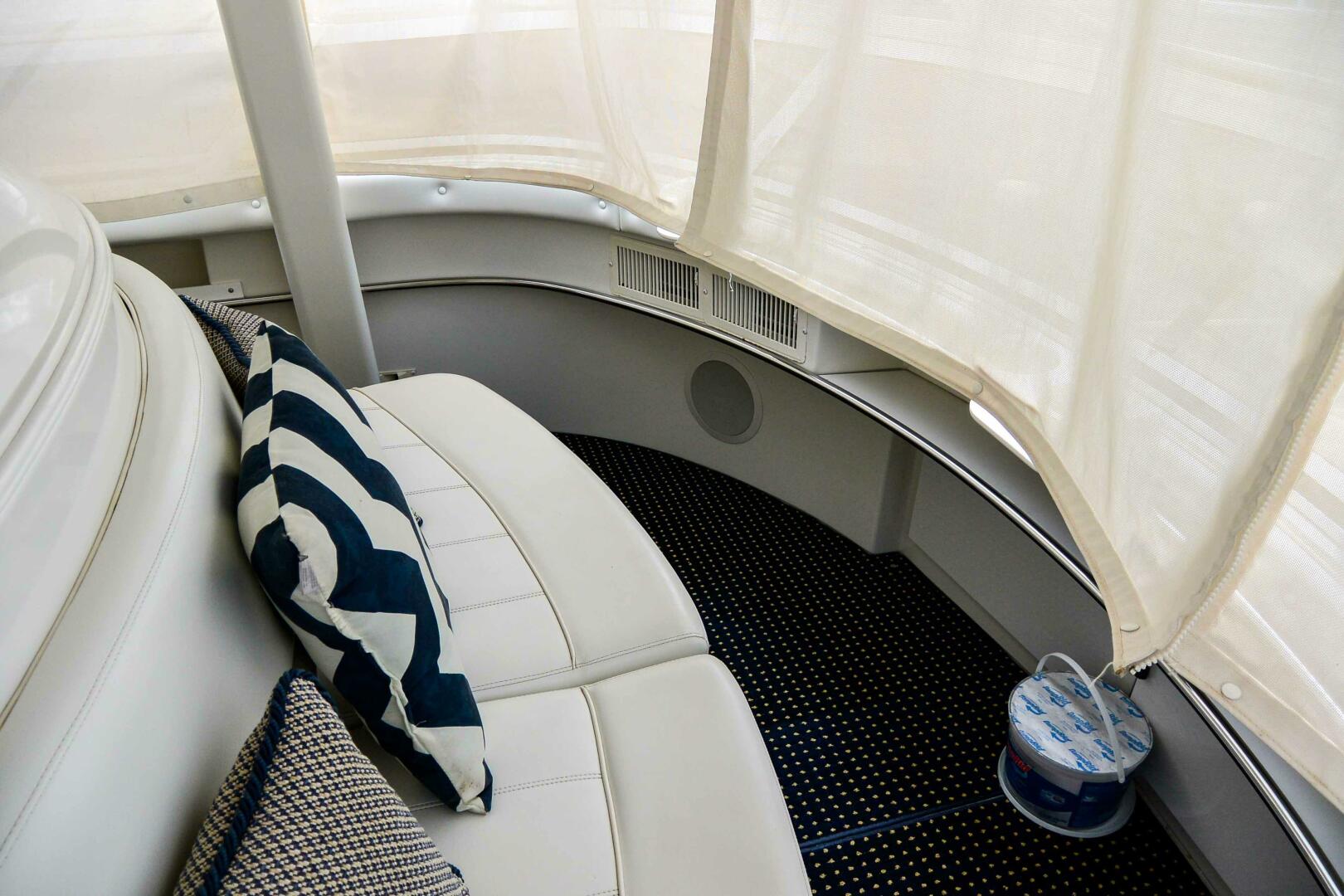

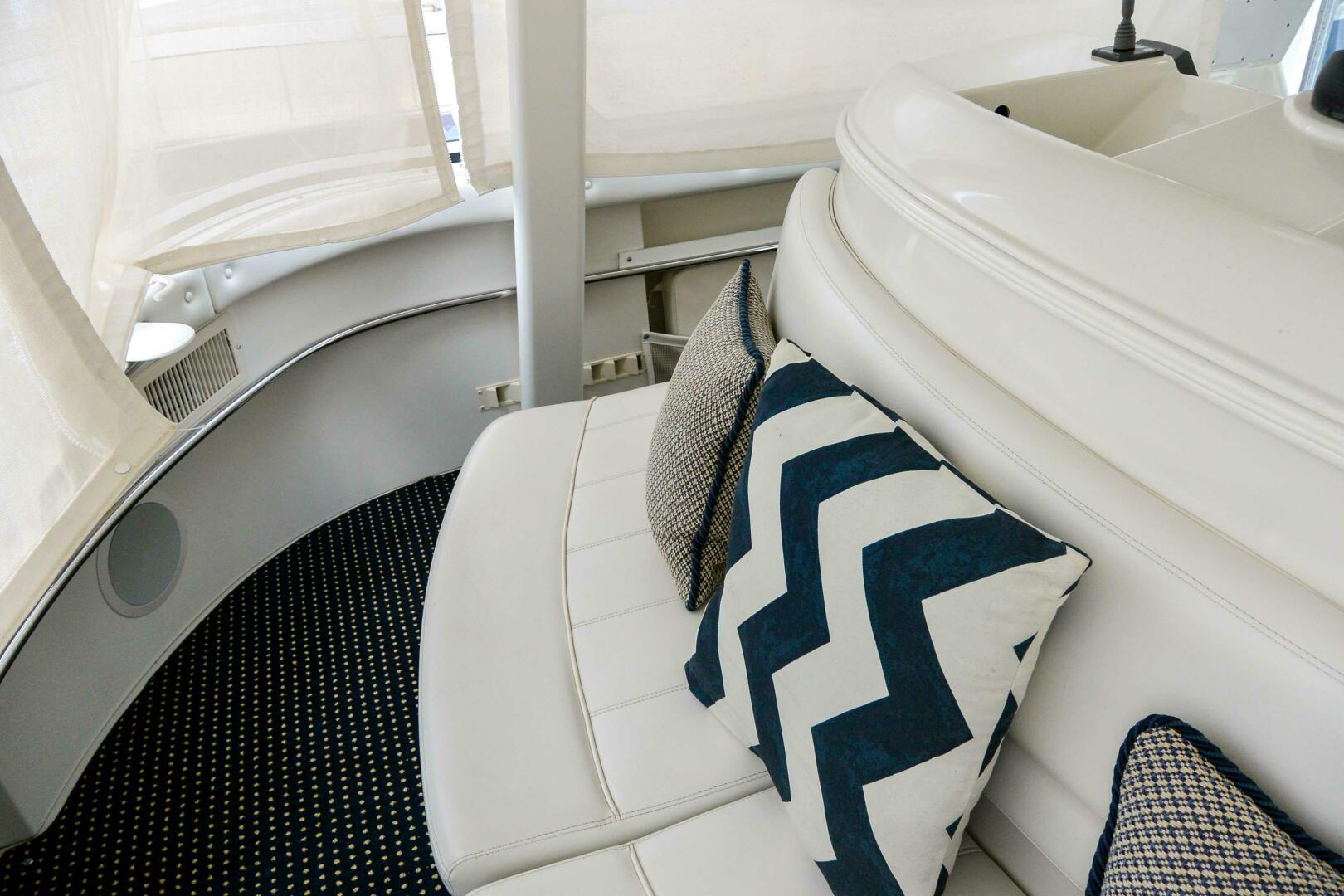

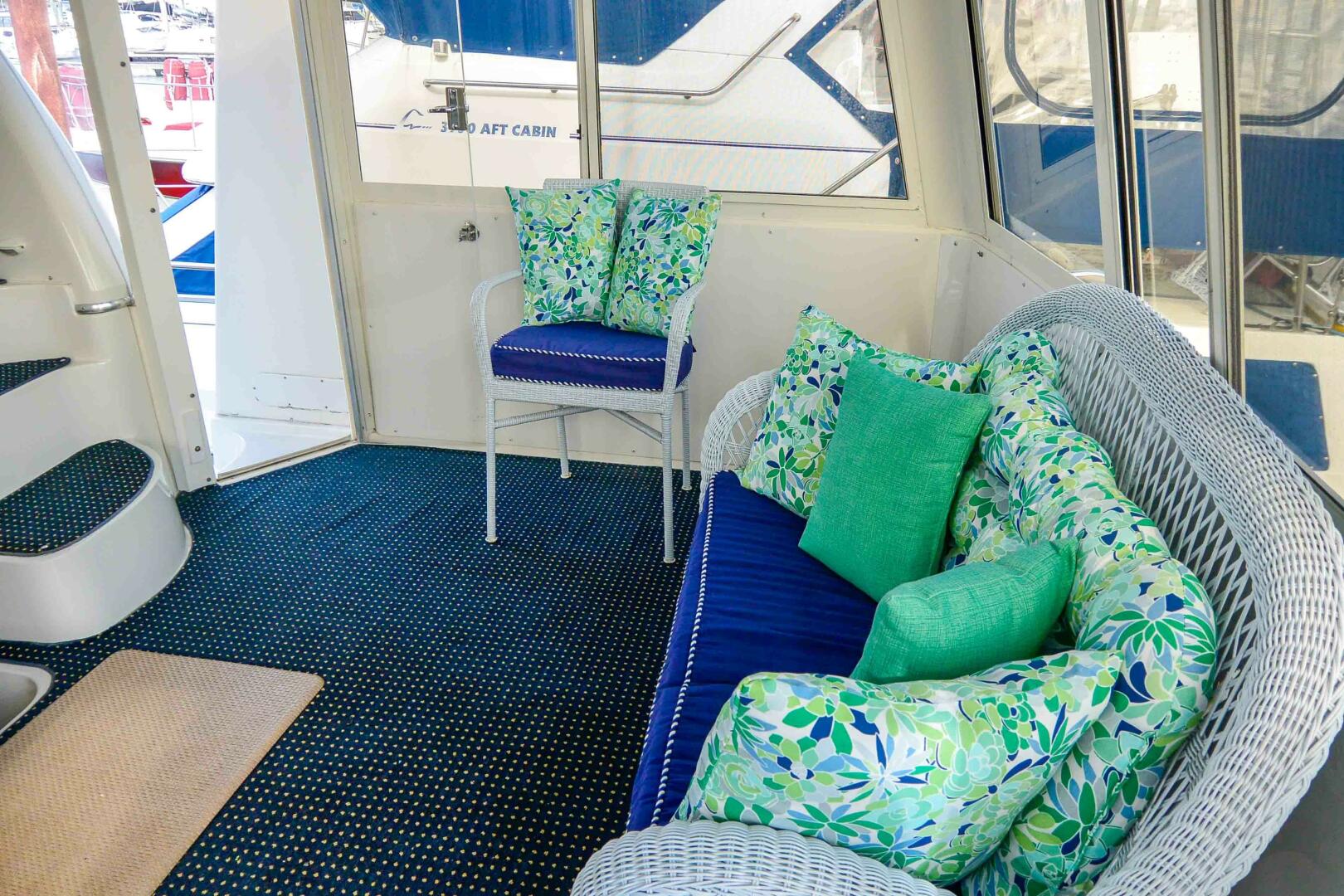

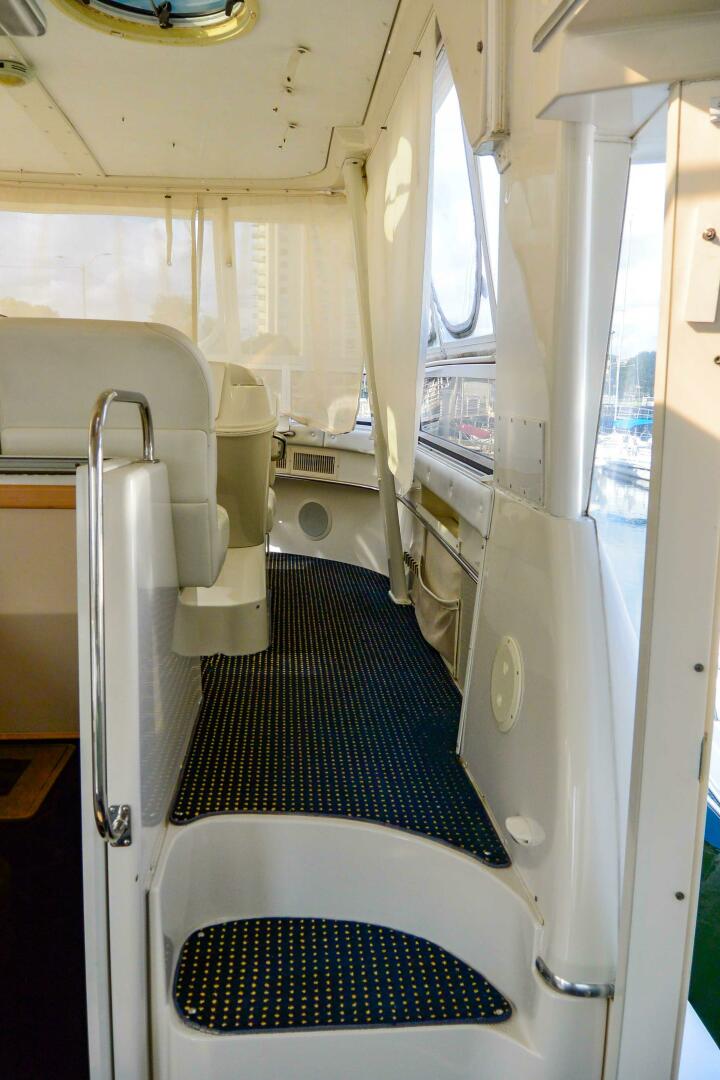

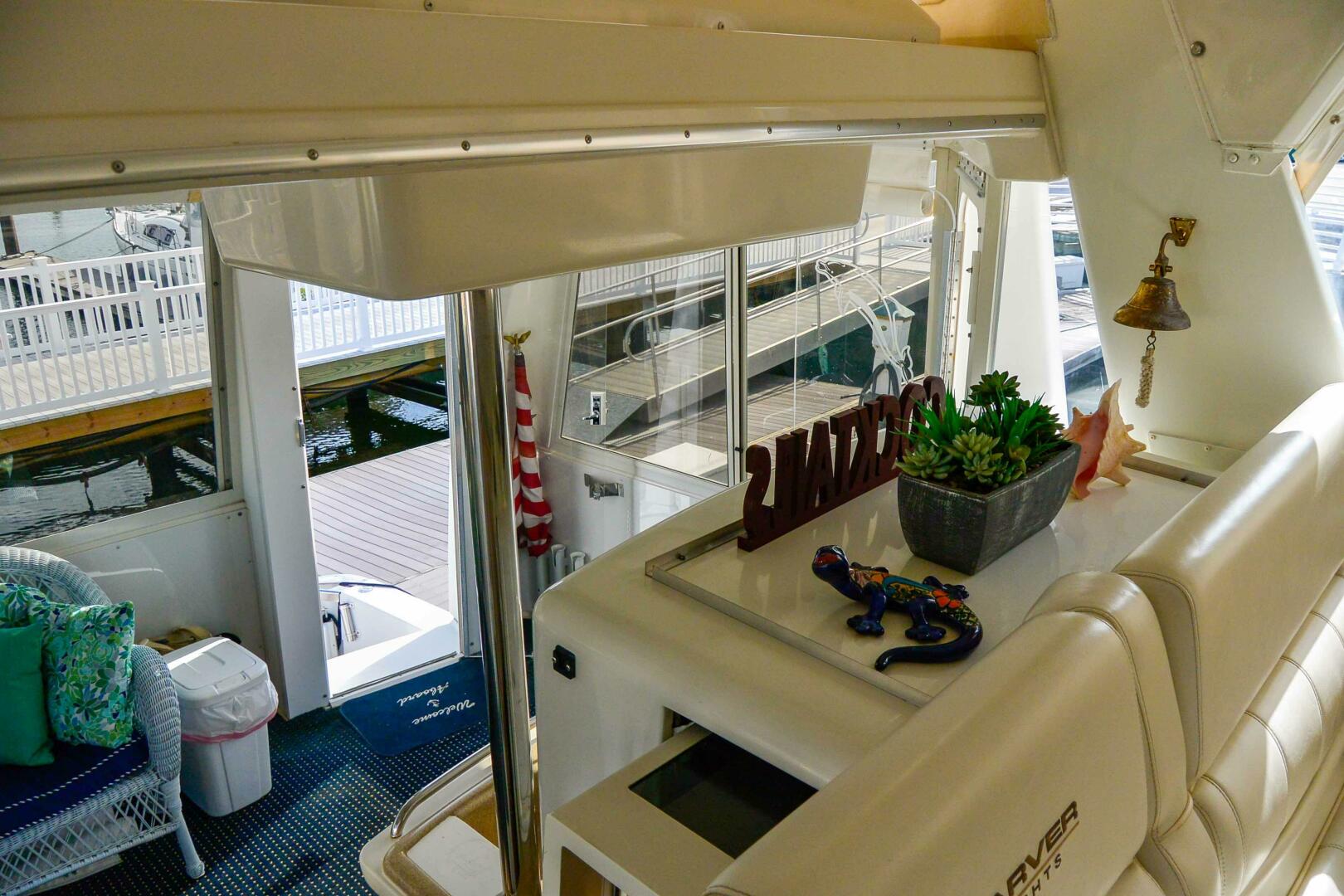

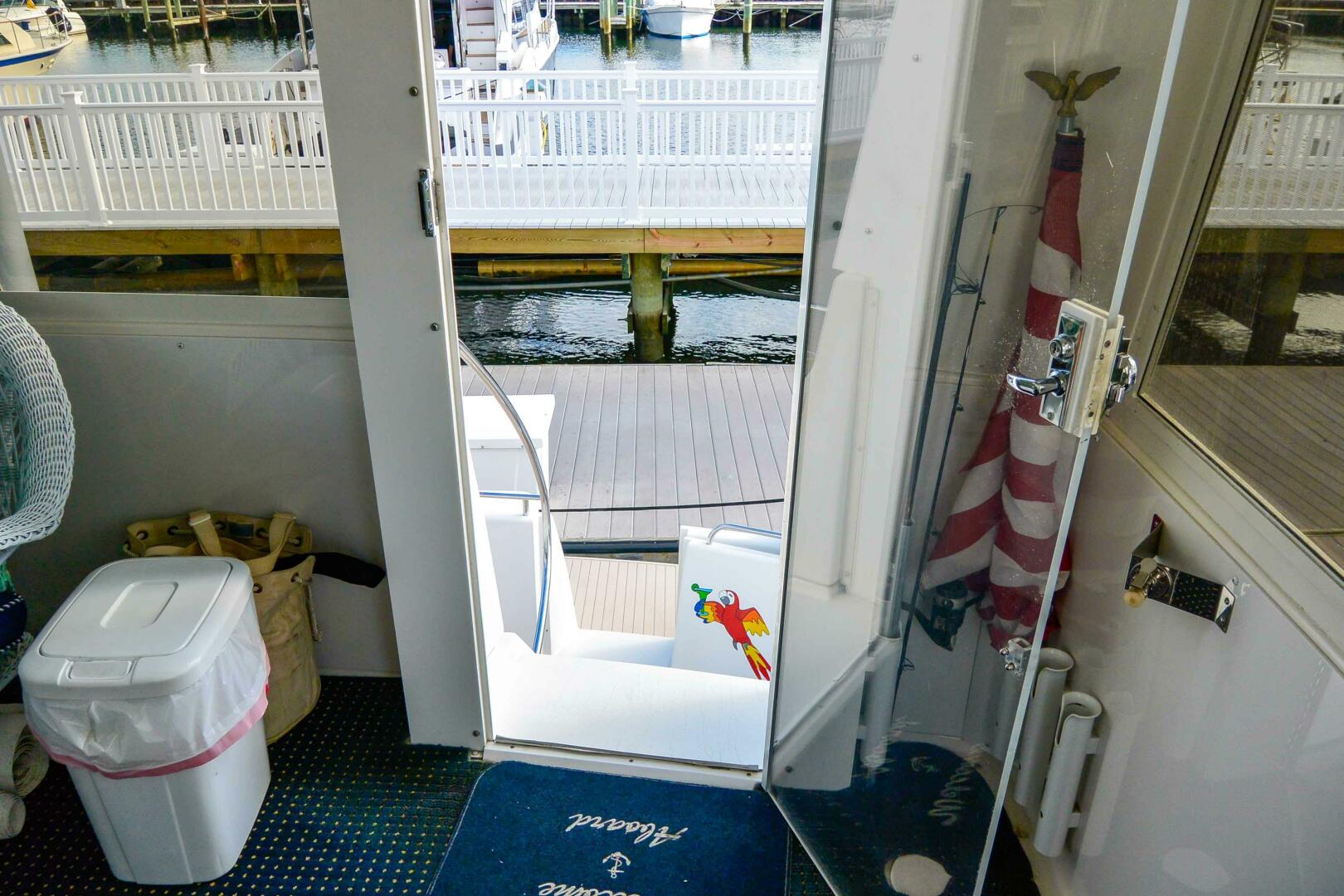

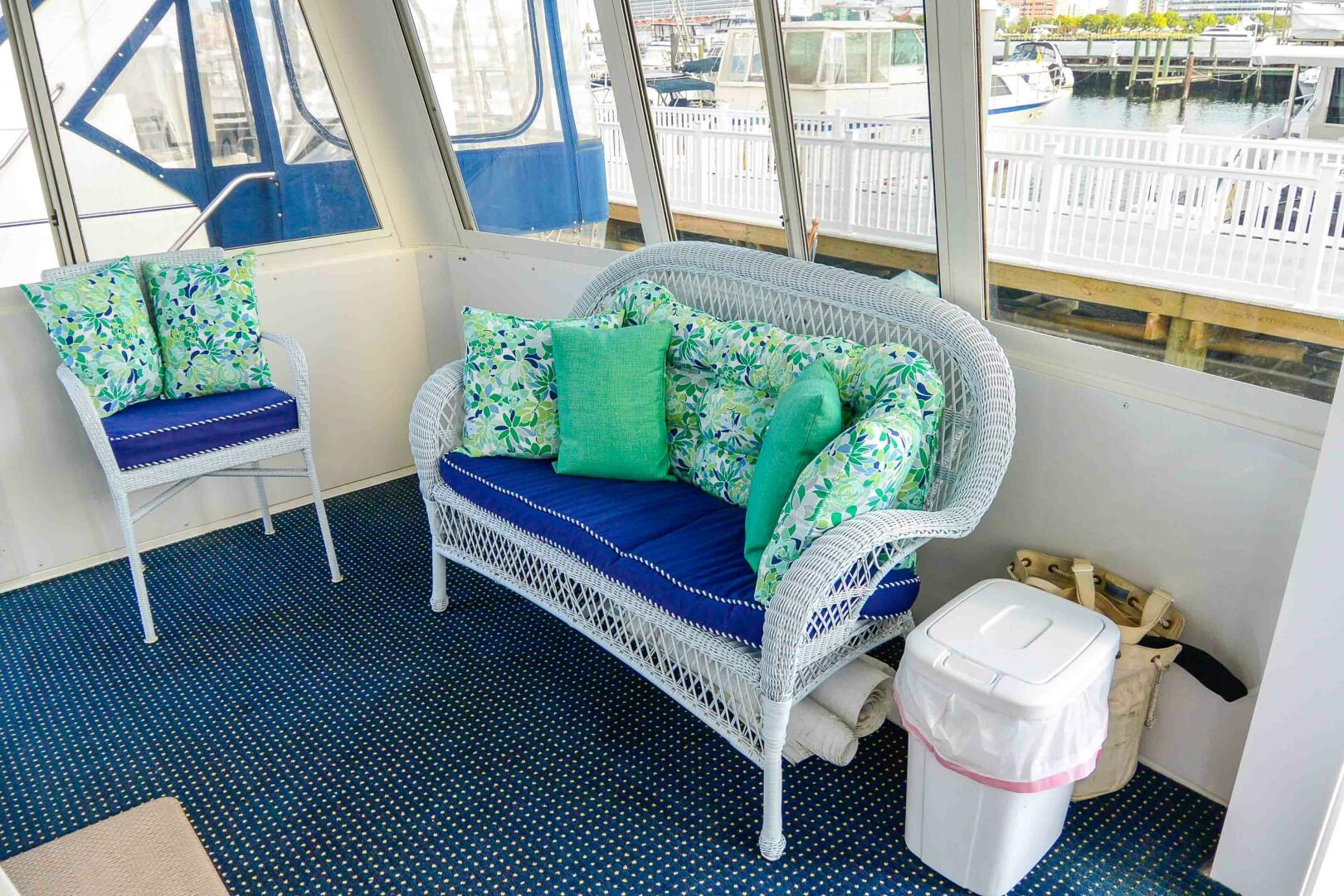

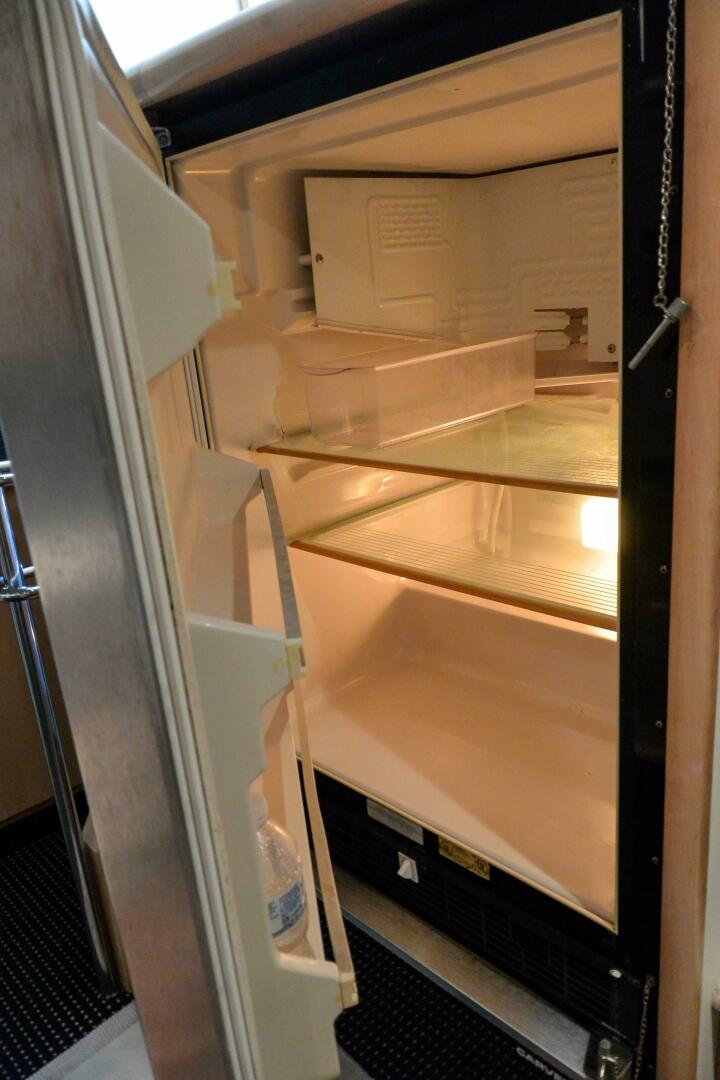

This is where the Carver 500 really shines. Enclosed sundeck 3 steps up from cockpit has tempered glass enclosure, hardtop, wing doors to side decks, wicker furniture, carpet, wet bar with bar refrigerator (Haier). Two steps up to spacious full enclosure flybridge helm with wrap-around seating. Hardtop with full enclosure and sun curtains.

Electronics and Navigation Equipment

VHF – Standard Horizon mode Spectrum w Ram-mic in salon

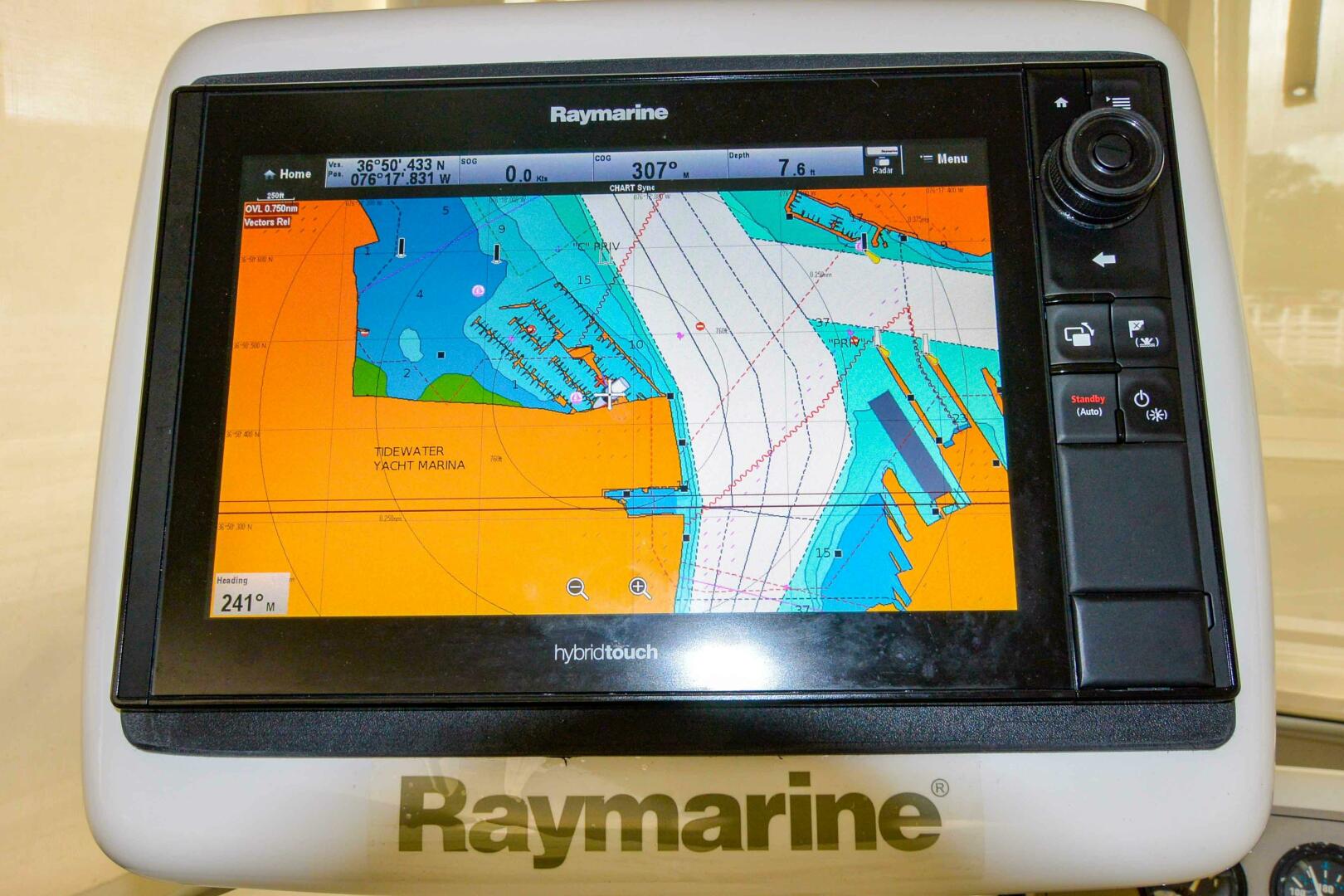

GPS/Plotter/Radar/Sounder – Raymarine model C120

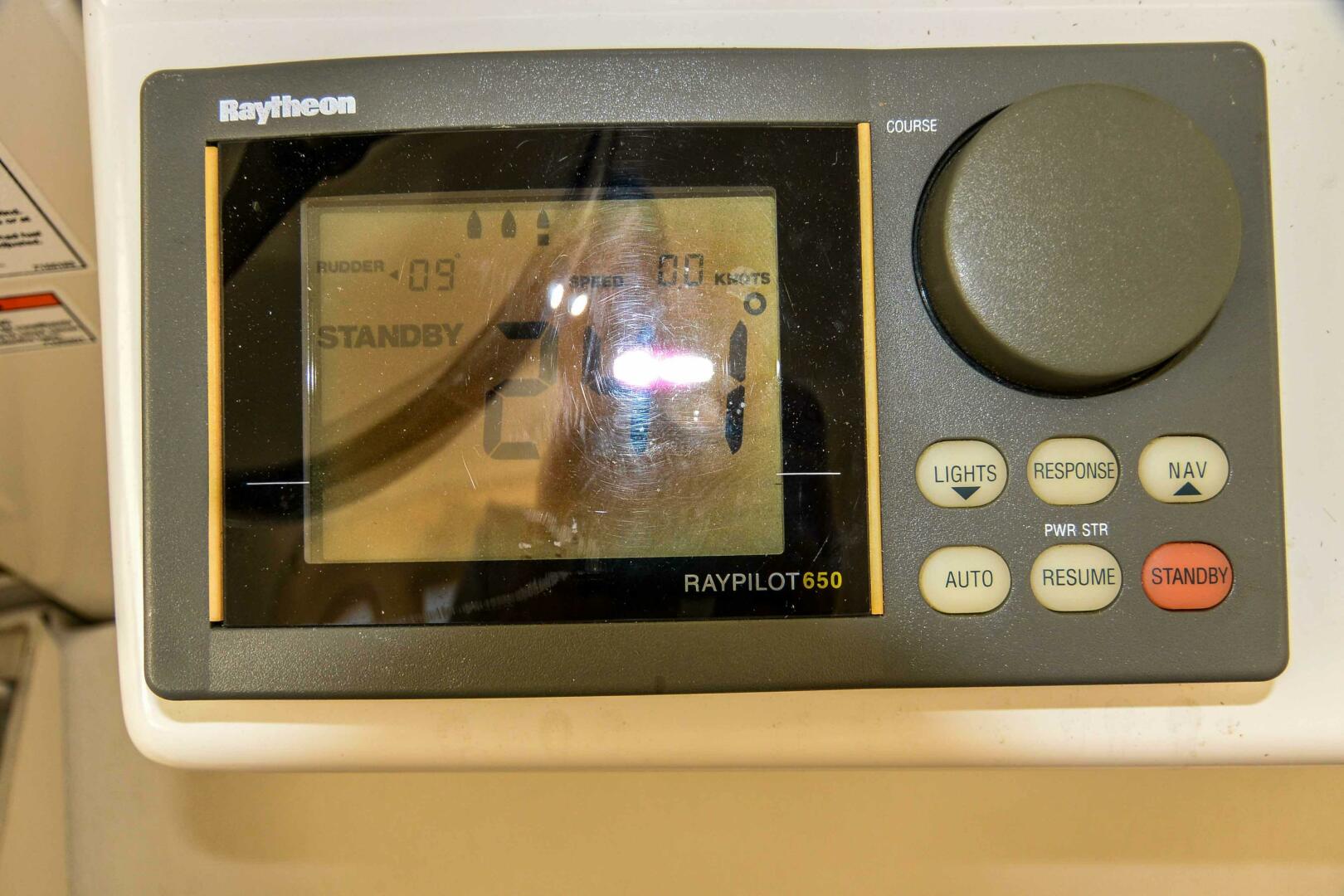

Autopilot- Raytheon model RAYPILOT 650

Speed log/depth – Raytheon model RAYDATA

Depth Sounder – Lowrance model 3500

Compass- Richie Powerdamp

Antennas well mounted and serviceable

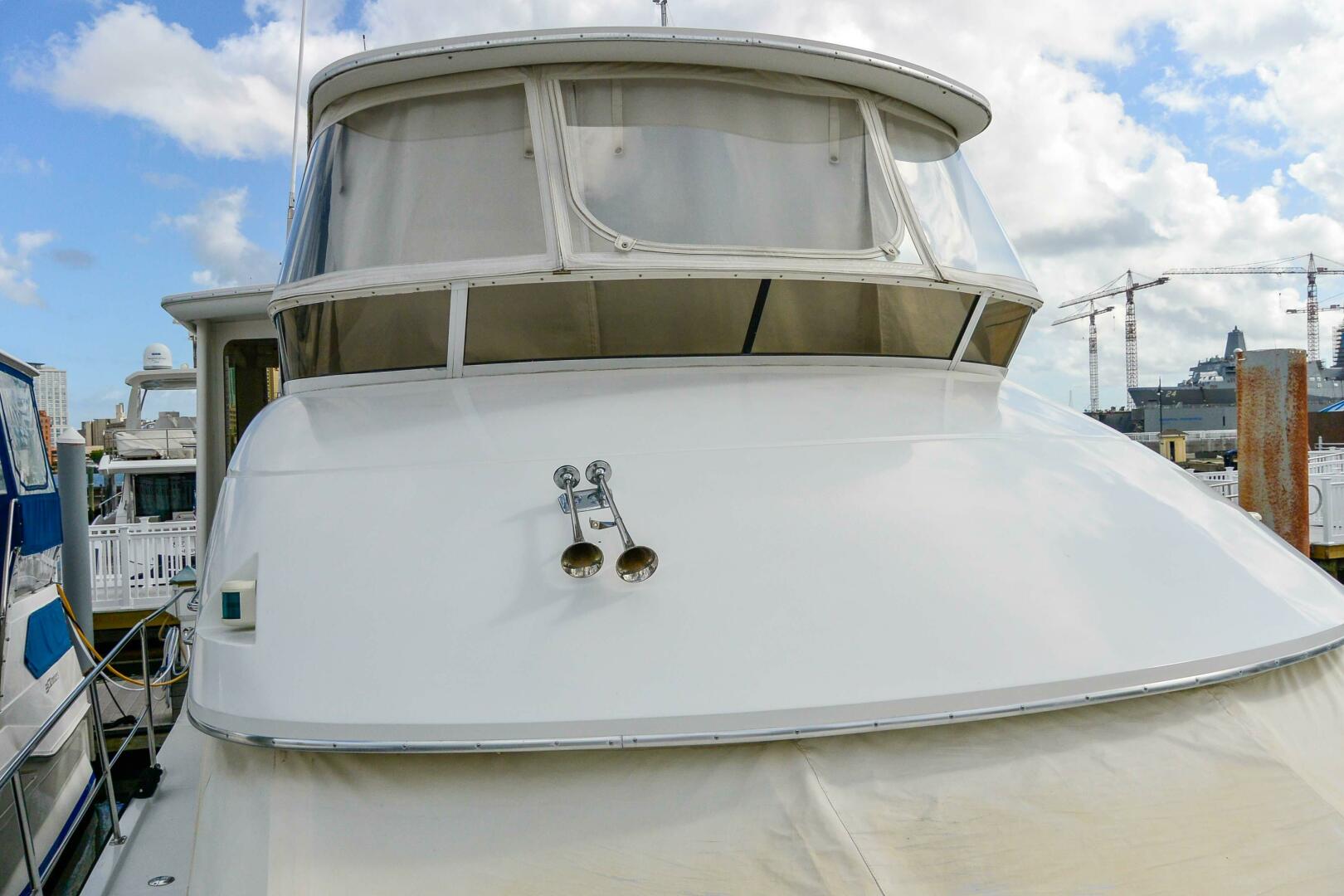

Horn- 12VDC dual trumpet

Trim Tabs- Bennett hydraulic

Spotlight- Jabsco 12 VDC remote operated

Bow Thruster- SIdepower 24 volt - 2 model 8A27M batteries has its own battery charger.

Electrical Systems

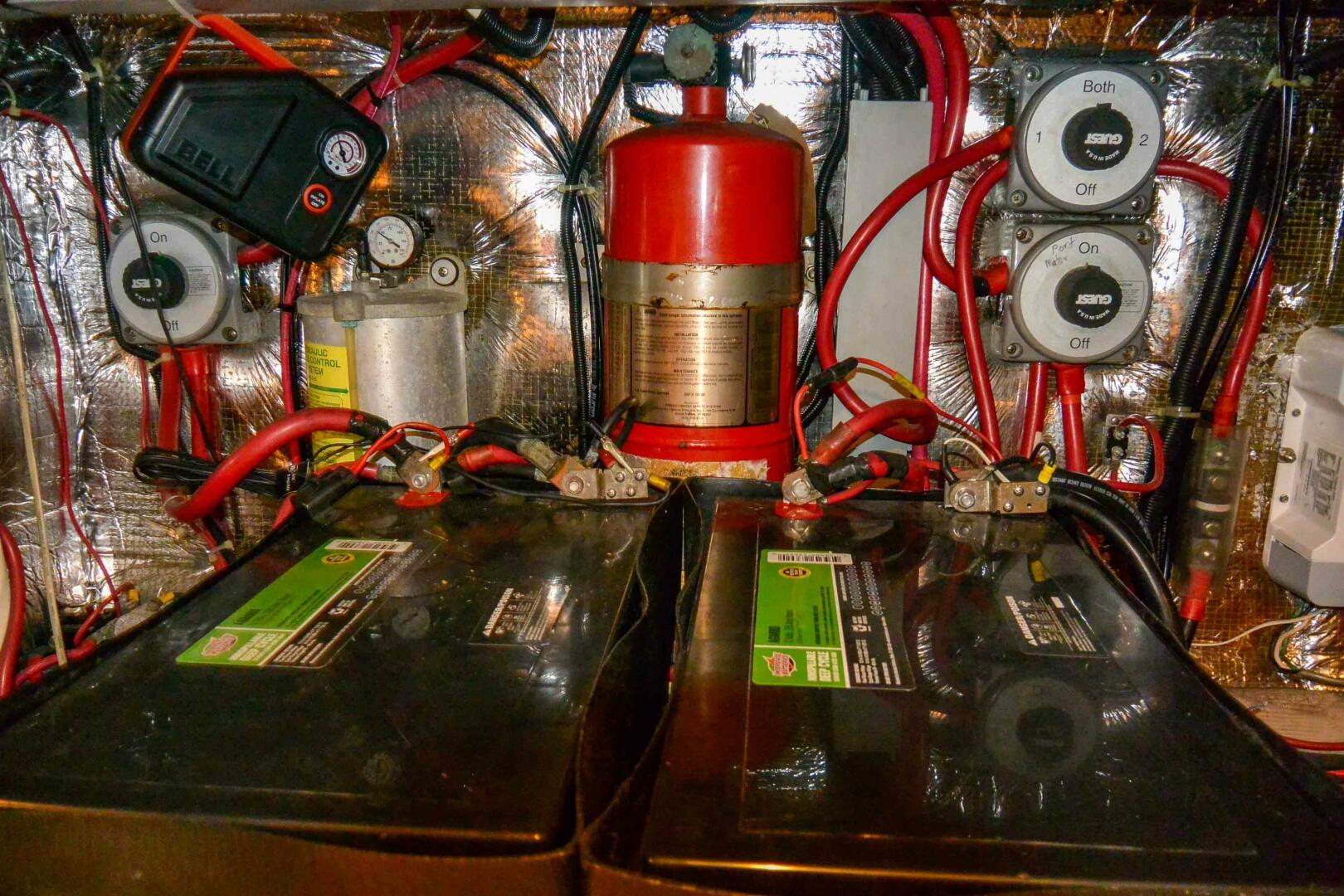

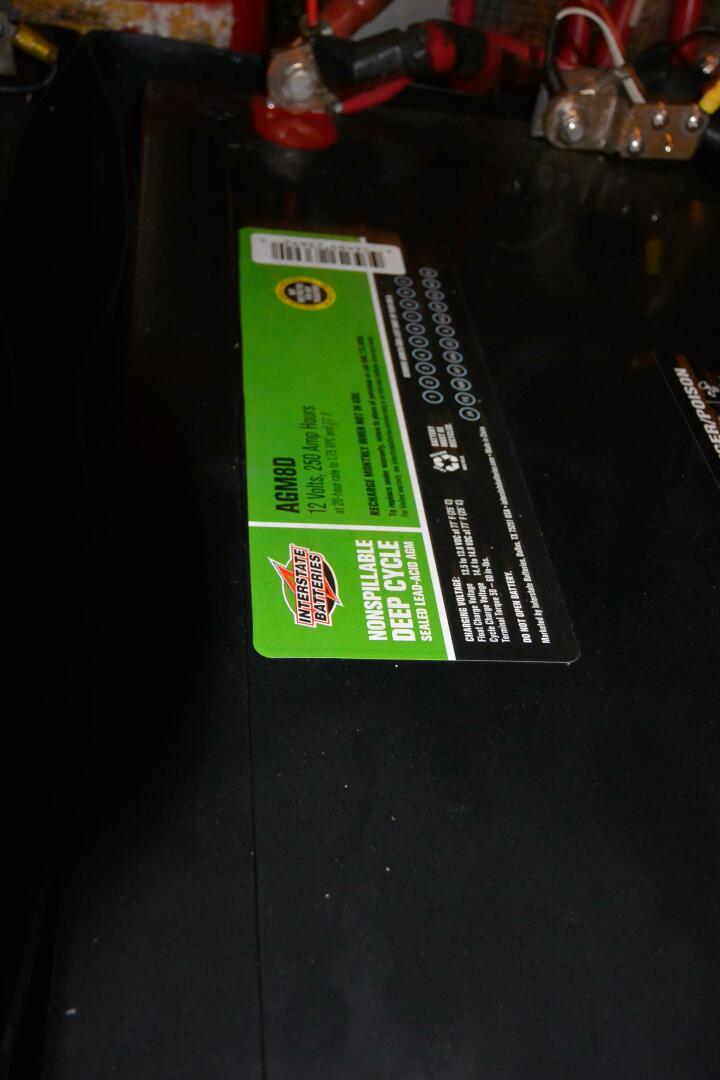

Batteries- Main 2 8-D Interstate (2019) ; Generator 1 group 24; Bow Truster 2 model 8A27M batteries (2018)

Battery Banks Switches - Main 2; Generator 1; Bow Truster 2 (2018) House 1; Parallel 1

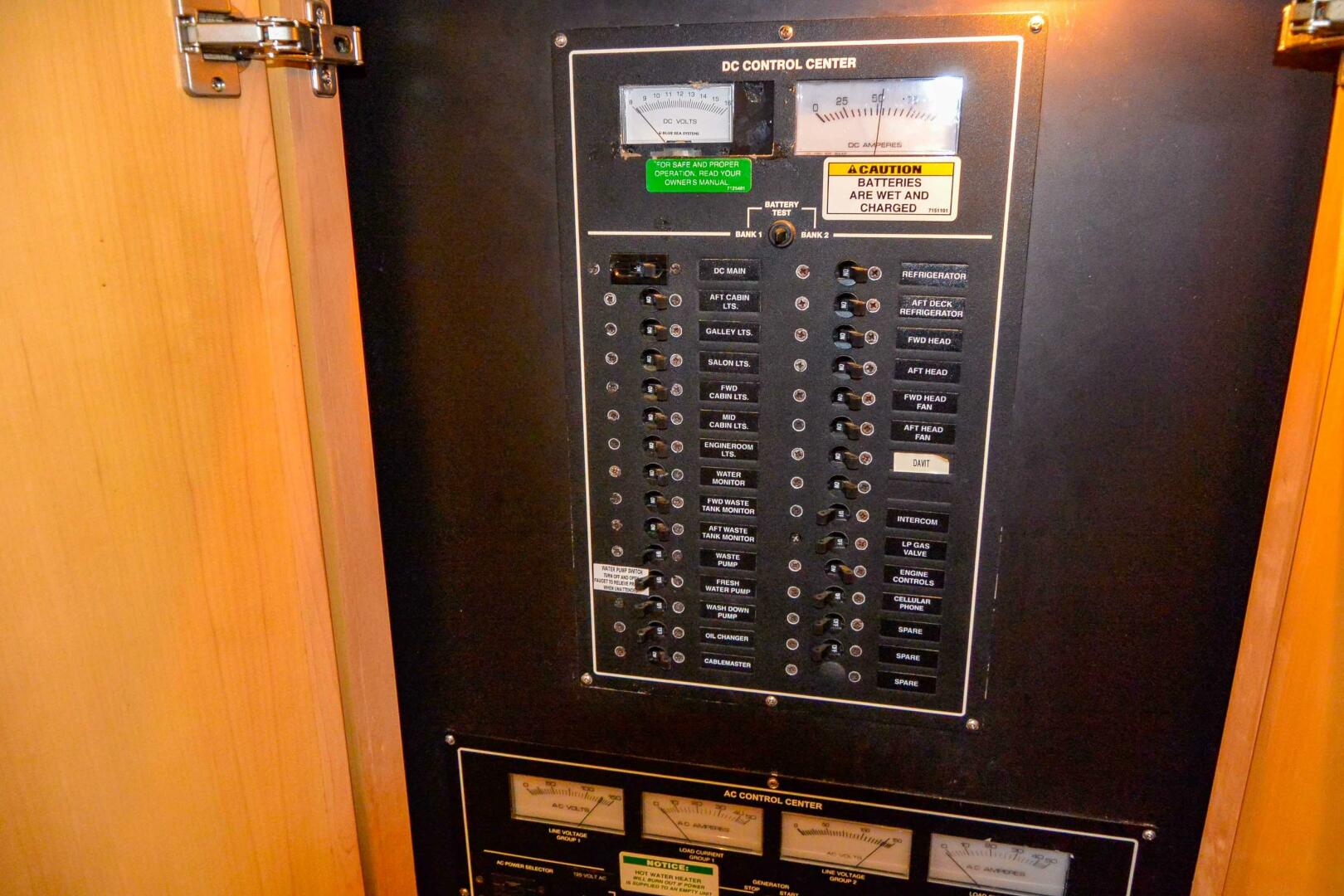

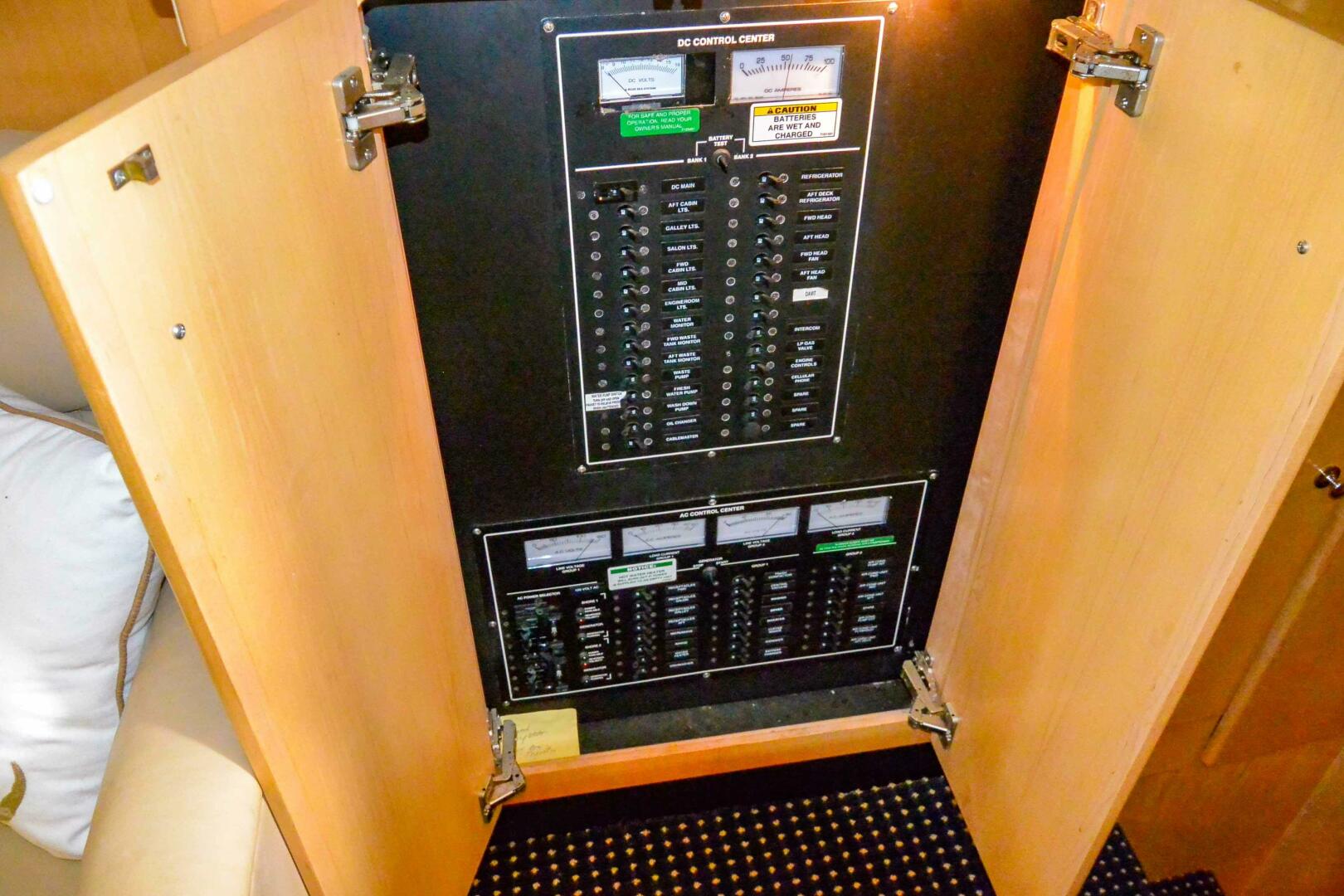

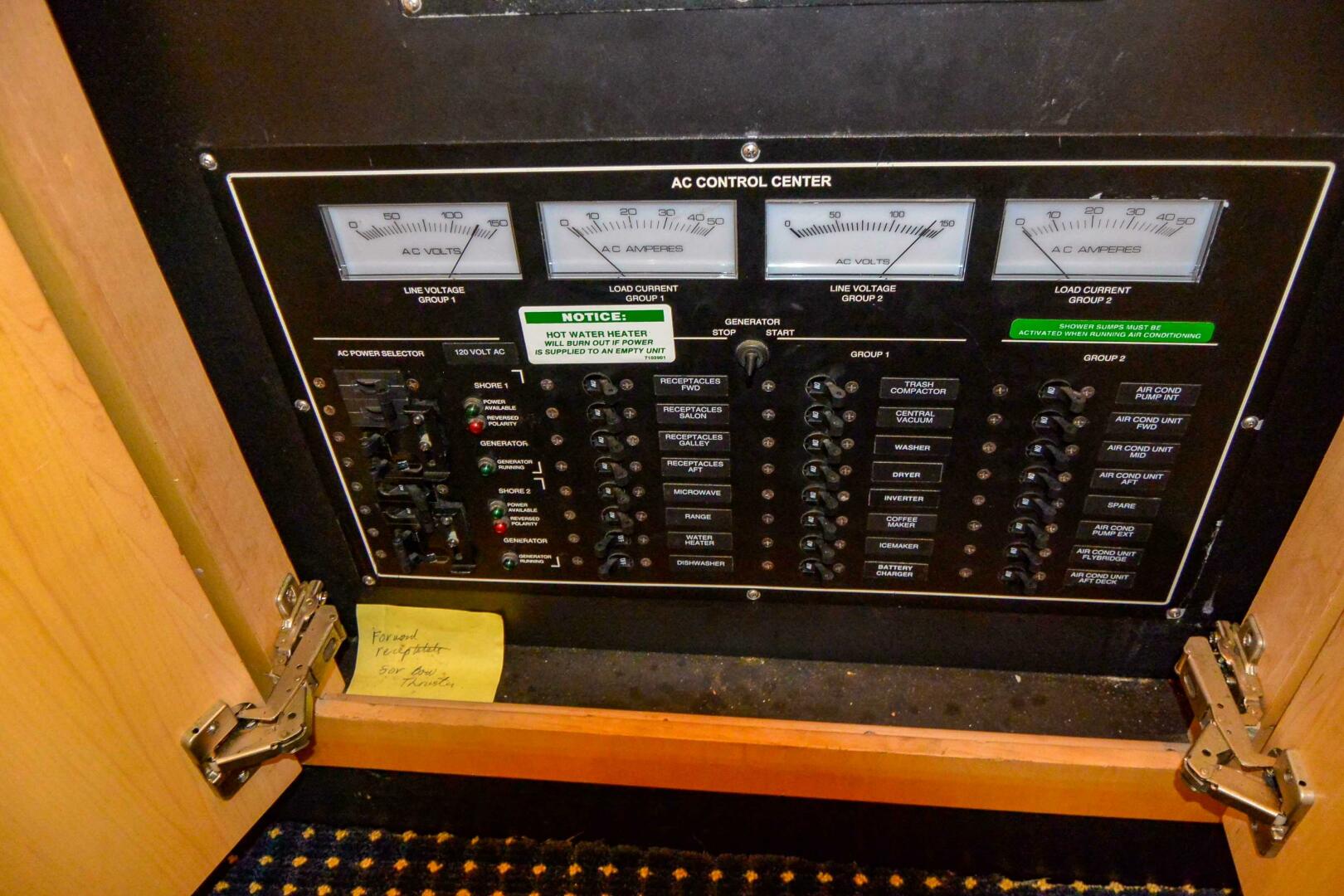

Electrical panels- Main 12/120 volt panel in solon; Auxiliary panel for helm at flybridge

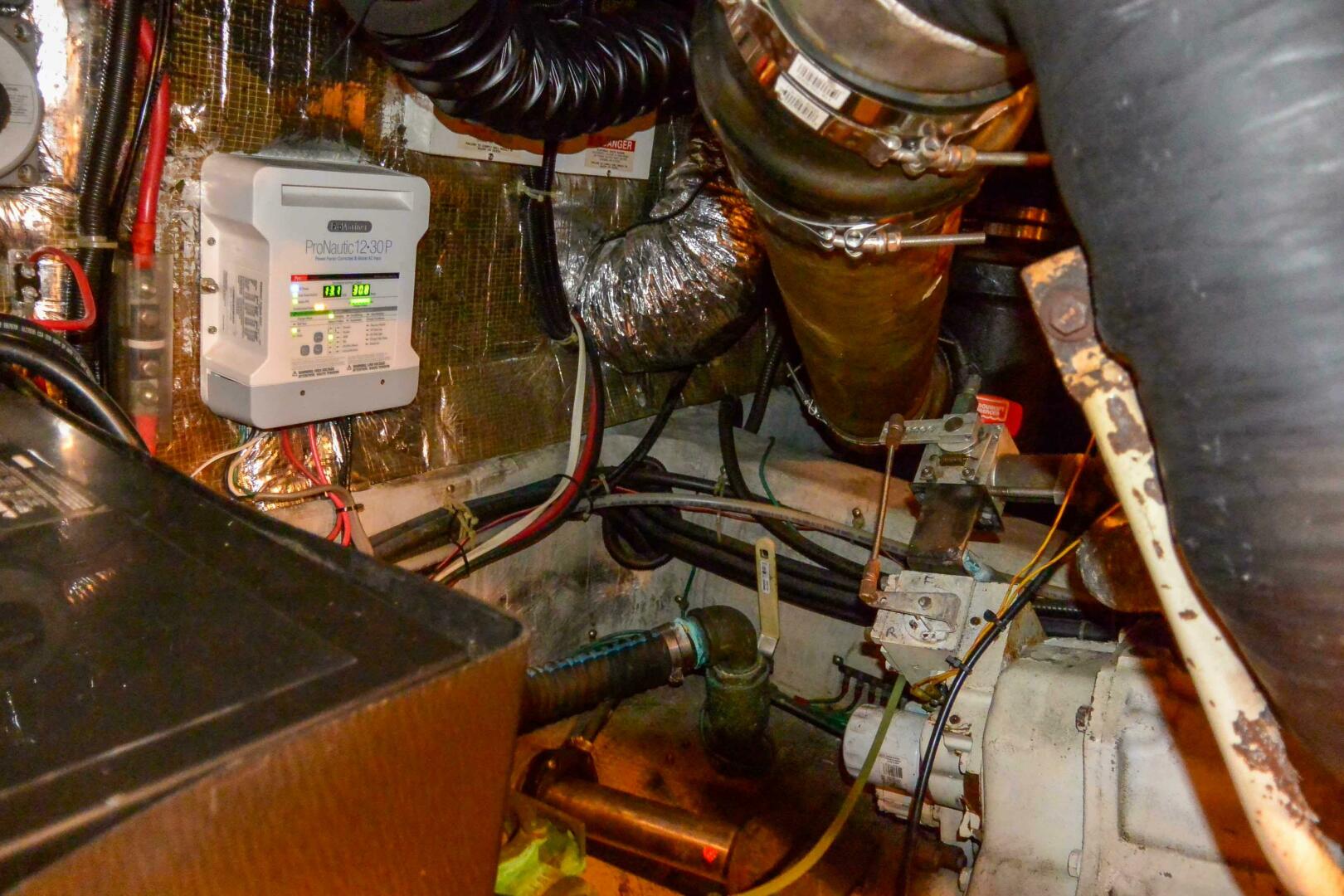

Charging system- ProMariner ProNautic 12-30P

Charging system (Alternator) each engine

Shore power- 50A/220V 50’ power cord on a CableMaster automatic cable dispenser/retractor

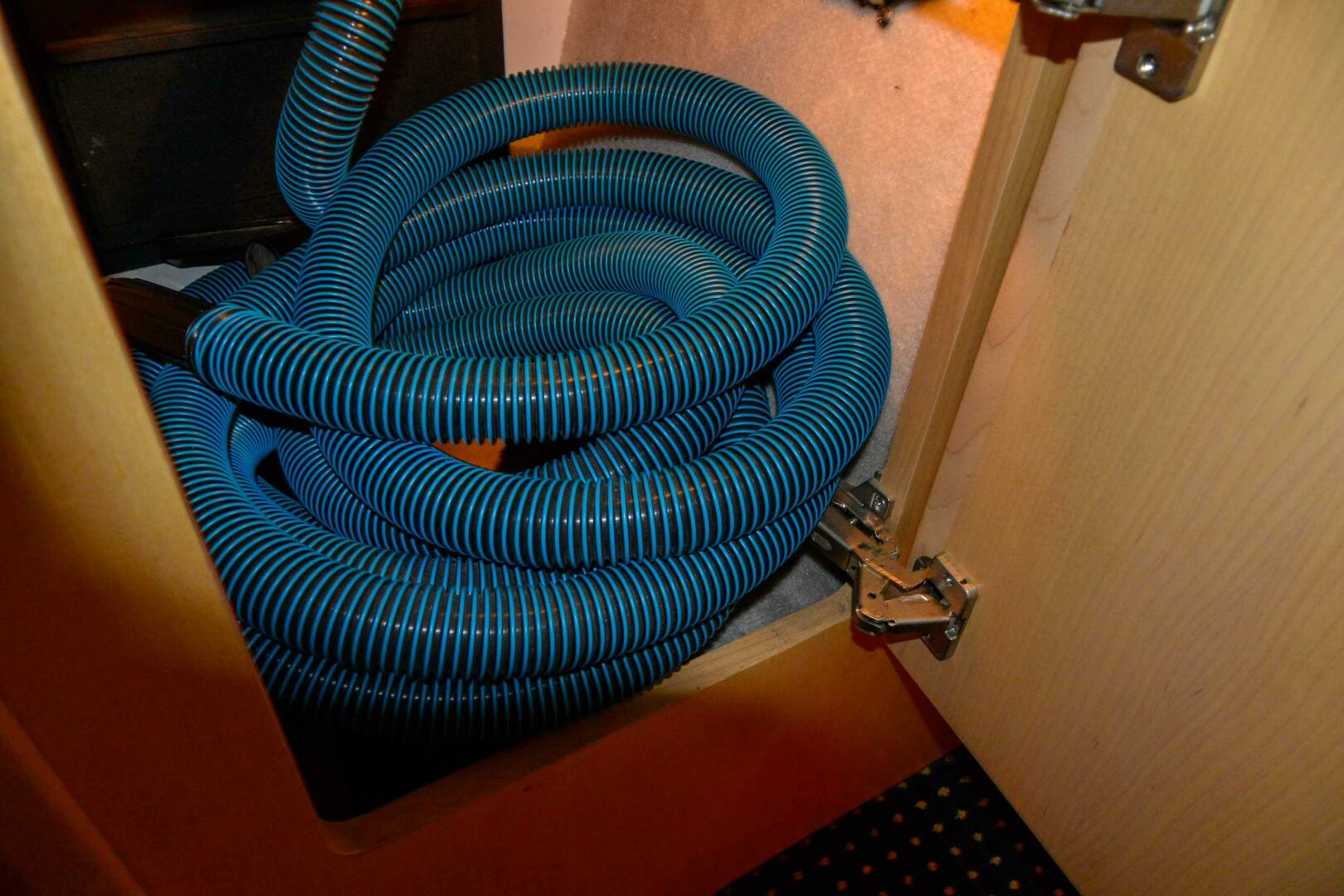

Central Vacuum system

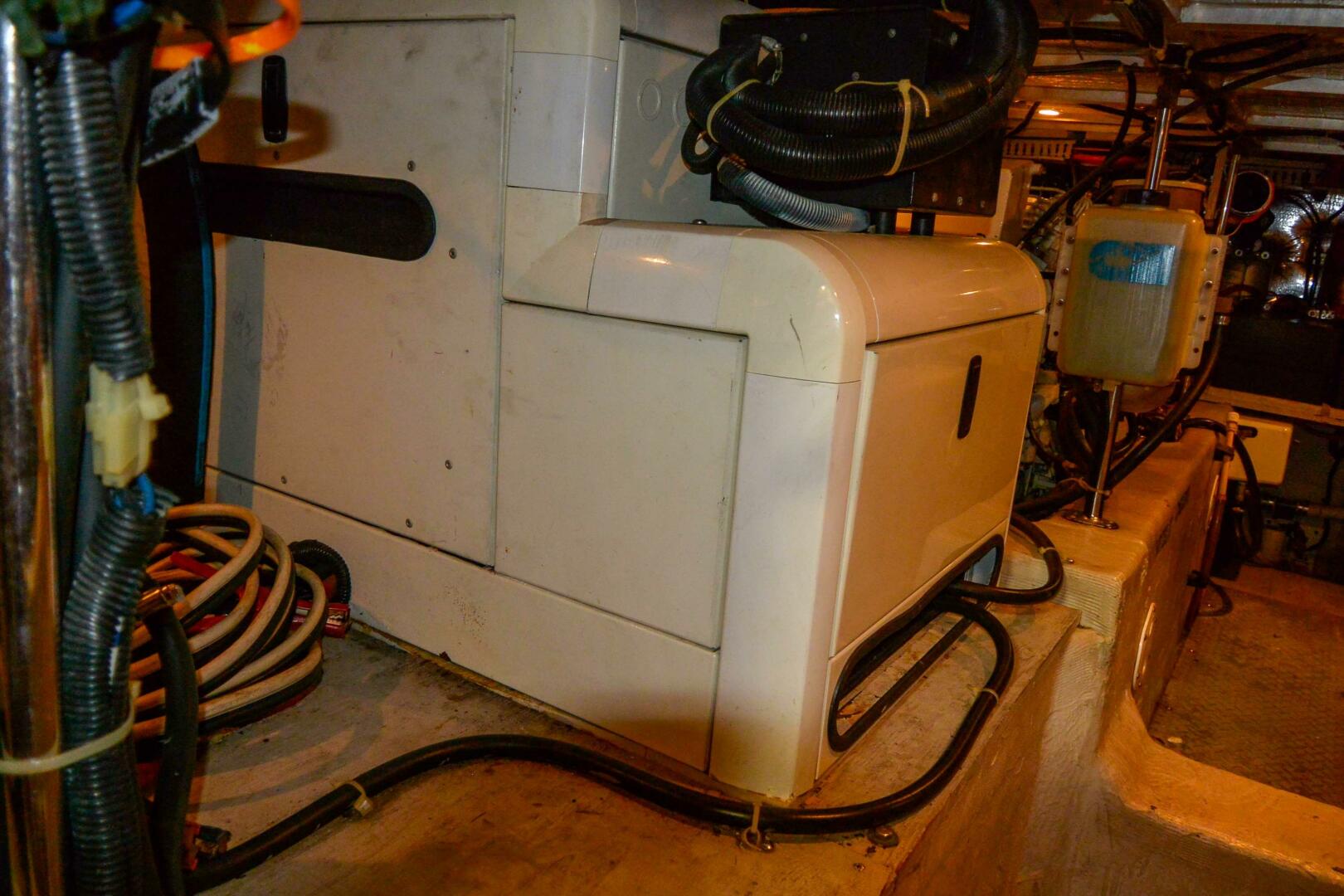

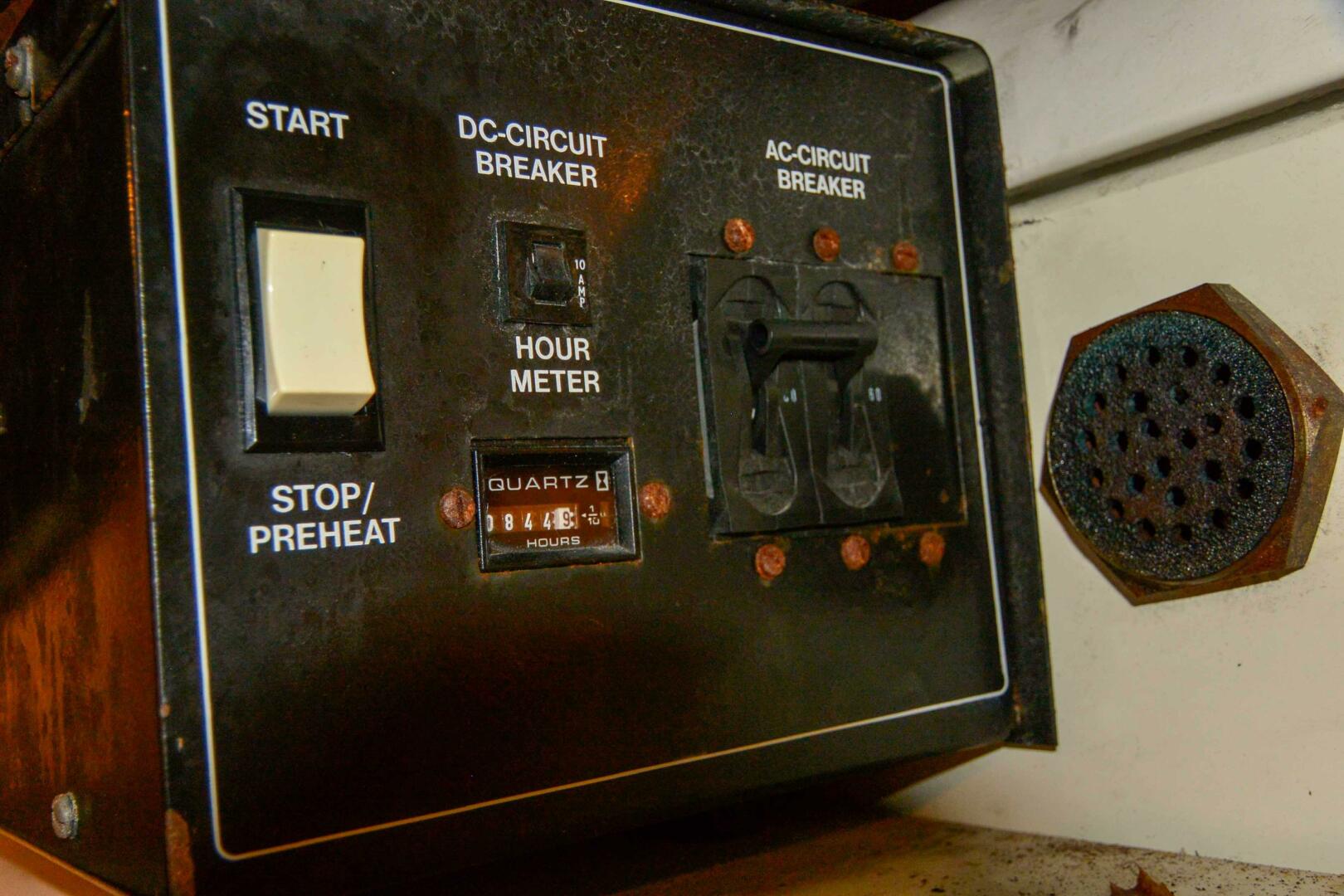

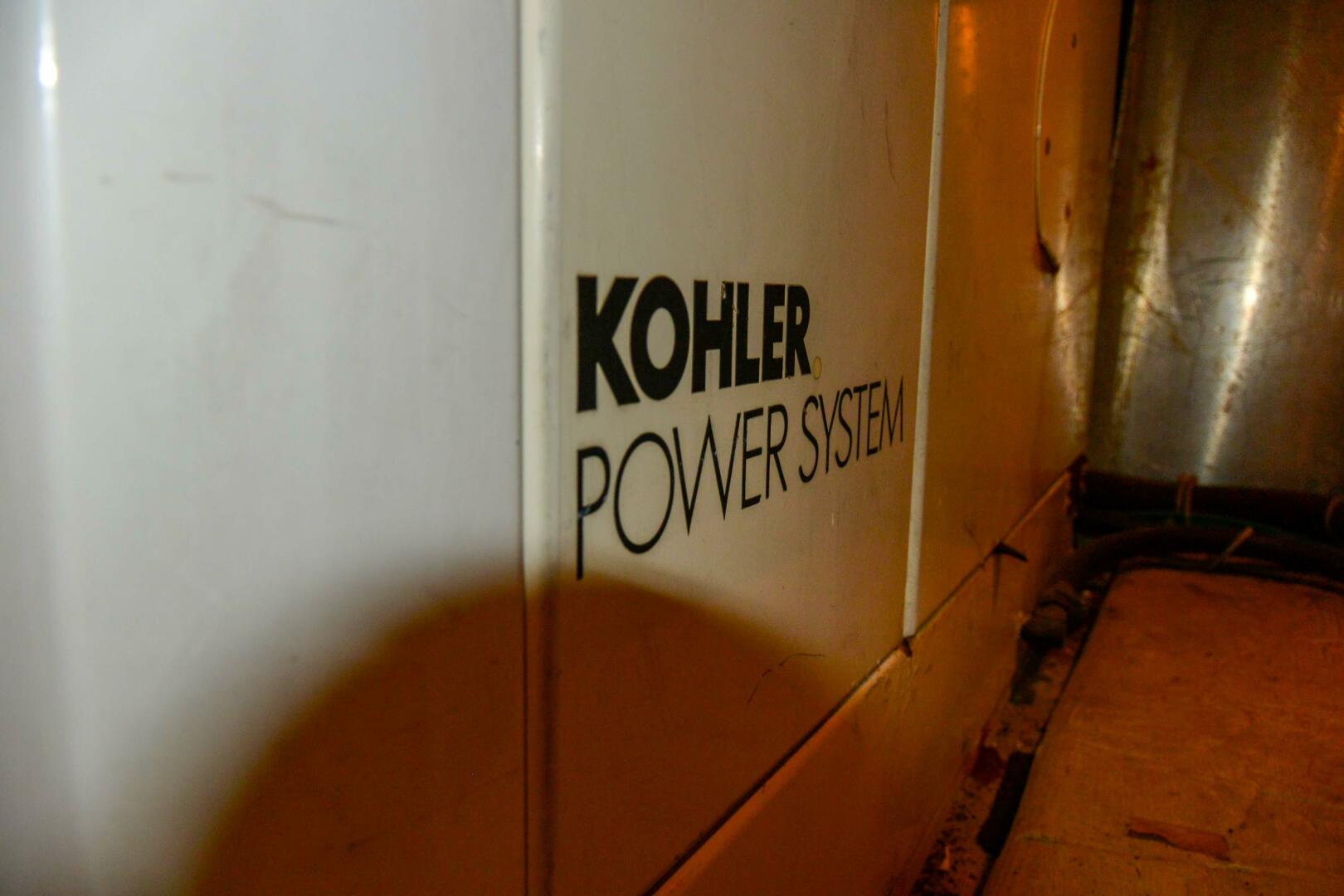

Generator- Kohler 13.5KW serial # 16878, 120/240 voltage rating, hours = 844 @10/5/2023 per meter

Electronics

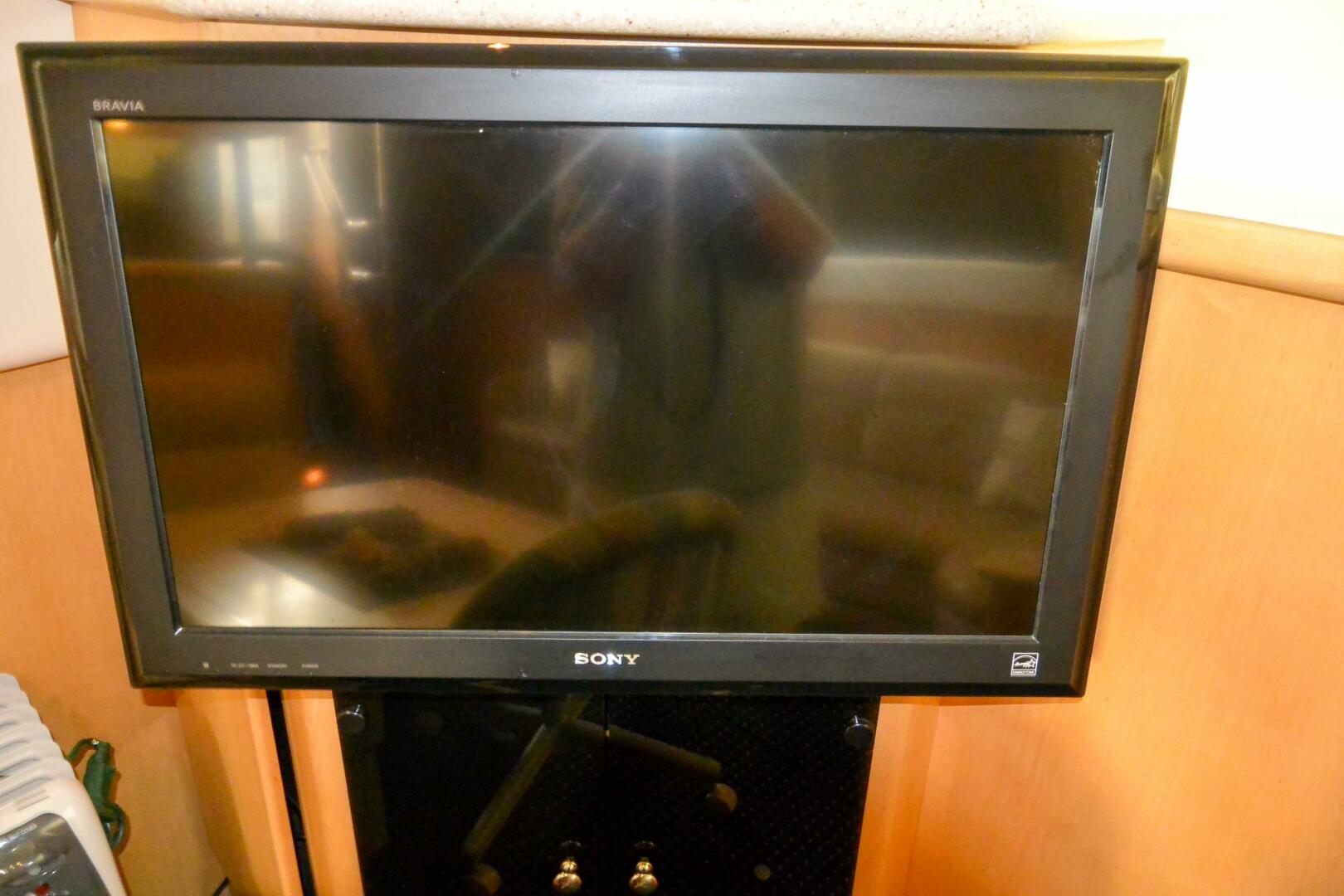

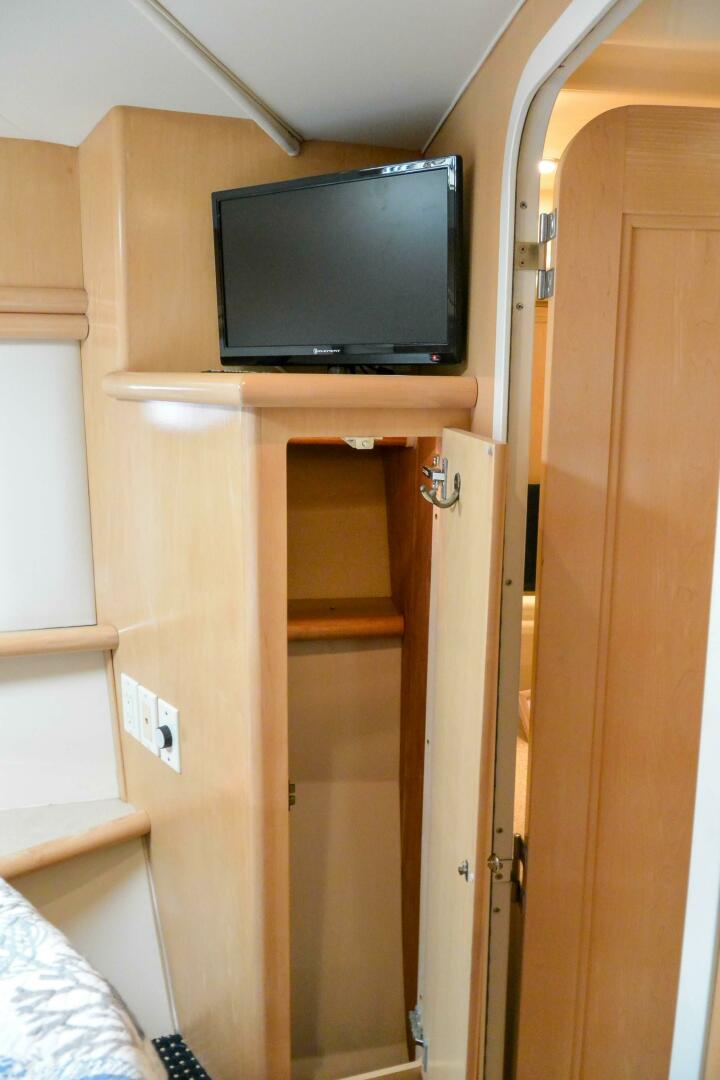

Flat screen TV in each stateroom and salon

Audio / receiver sound system with speakers through out interior sunroom and bridge

Engine/Mechanical

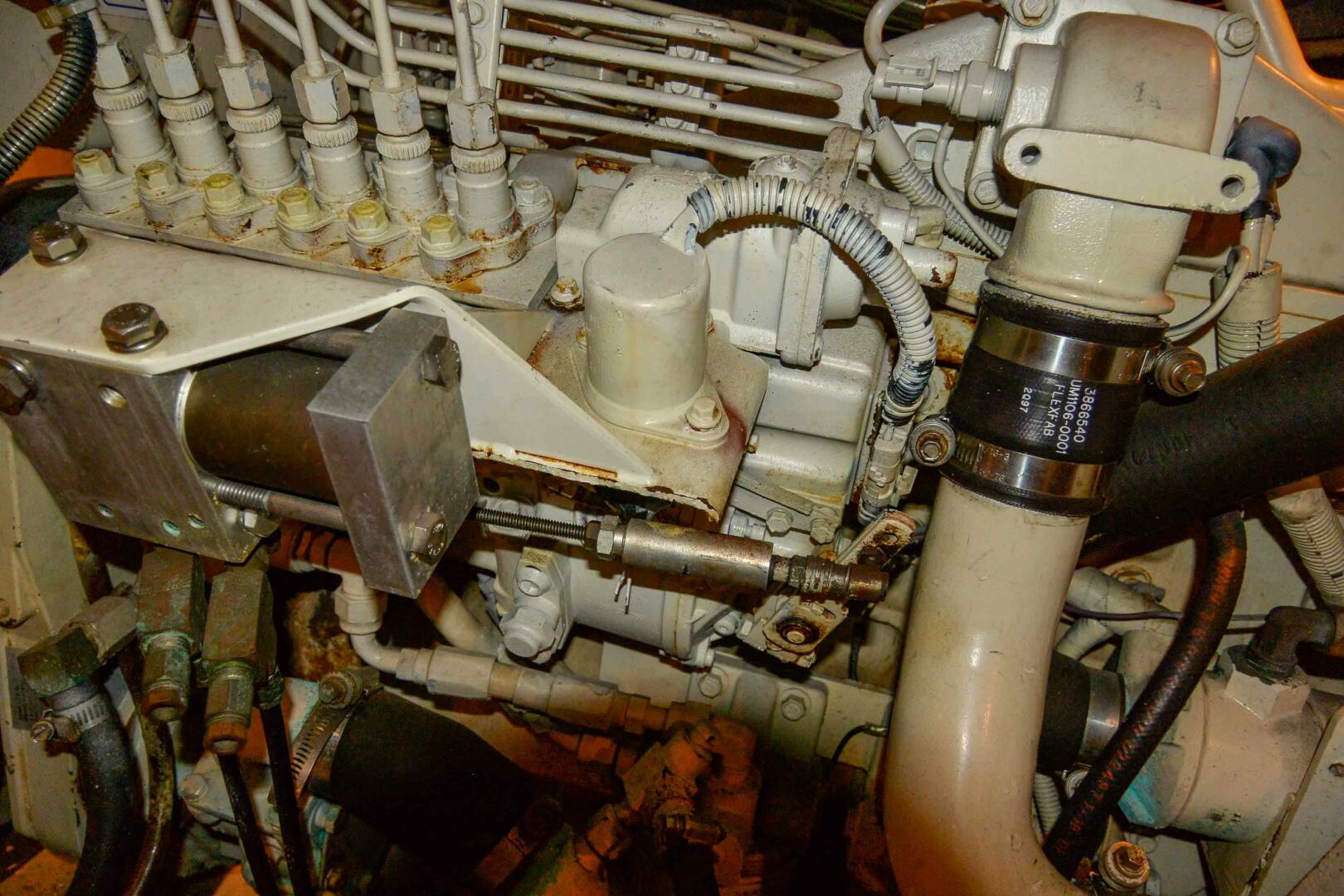

Twin Cummins Diamond Performance Series Model 6C8.3-M 450HP @ 2600-RPM each

Port: hours 1175 hrs. @ 10/5/2023 per meter Serial # 45622028

Starboard: hours 1124 hrs. @ 10/5/2023 per meter Serial # 45560963

Engine synchronizer Cummins Marine

Steering system- Hydraulic Seastar

Engine throttle and shift controls are Hynautic hydraulic controls

Transmissions- ZF, Model ZF301A

 Shaft 2.25”

Propellers- 4 blade NIBRAL 32X37

Trim Tabs- stainless steel tabs with dual cylinder hydraulics

Bow Thruster- SIdepower 24 volt - 2 model 8A27M batteries has its own battery charger.

Dripless packing gland

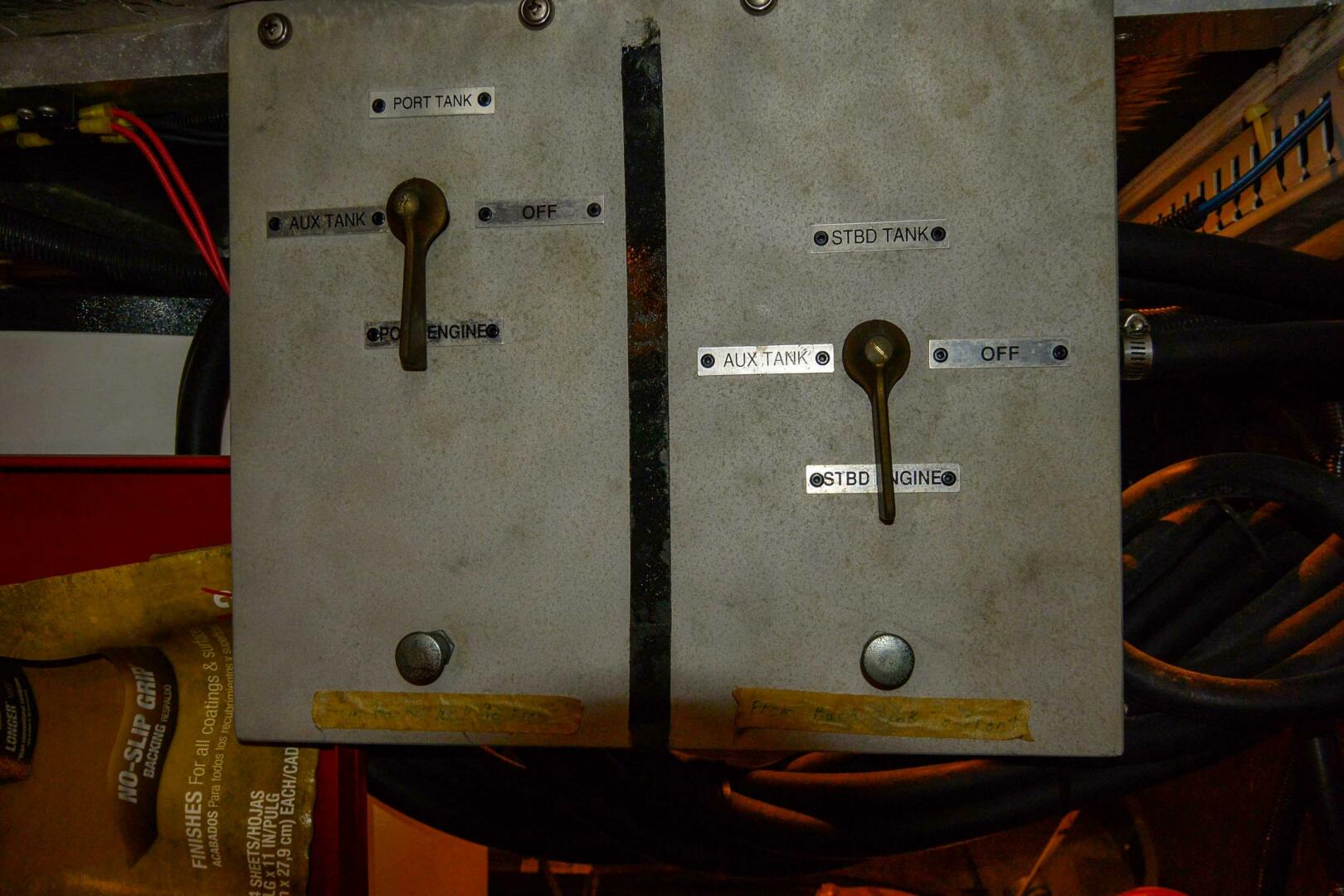

Fuel tanks- Aluminum main saddle tanks 232gal each aft auxiliary tanks 114 gal each total of 692 gallons.

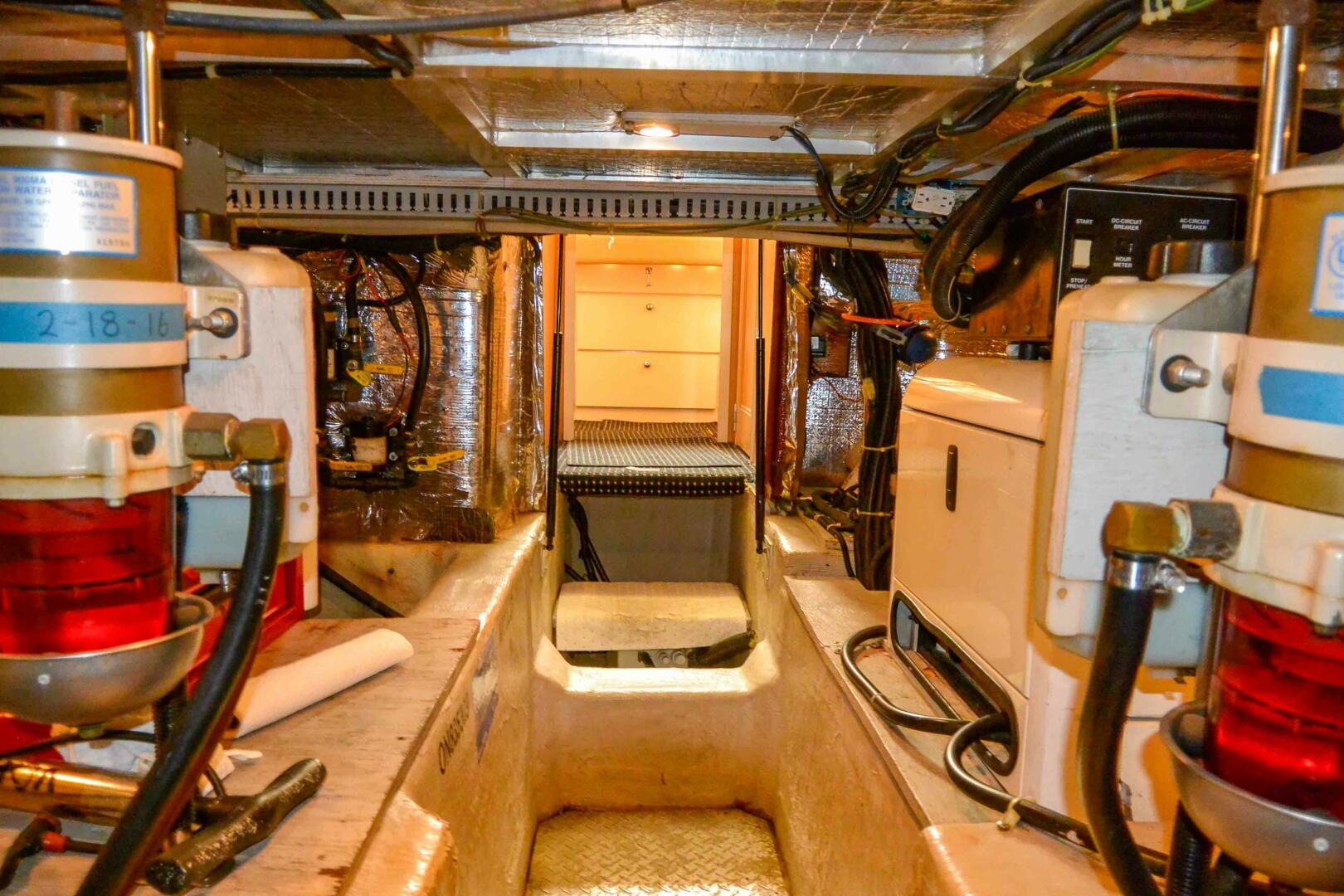

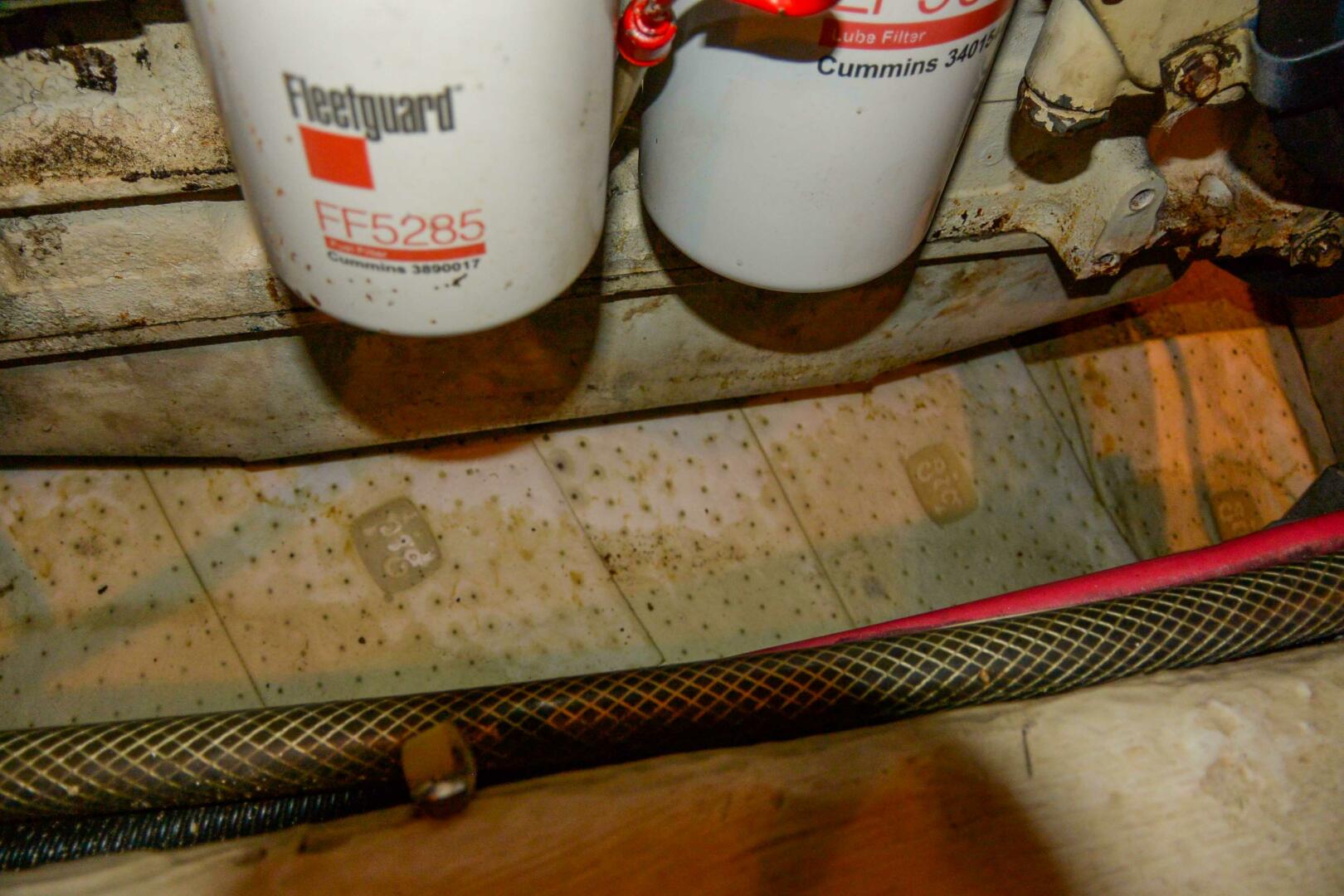

Fuel filters- remote mounted Racor element 2040

Fuel transfer pump- 2 vane Puppy 12VDC

Lube transfer pump - Graco

Hot water system - Ritan 20 gal.

Generator- Kohler 13.5KW serial # 16878, 120/240 voltage rating, hours = 844 @10/5/2023 per meter

Deck Equipment

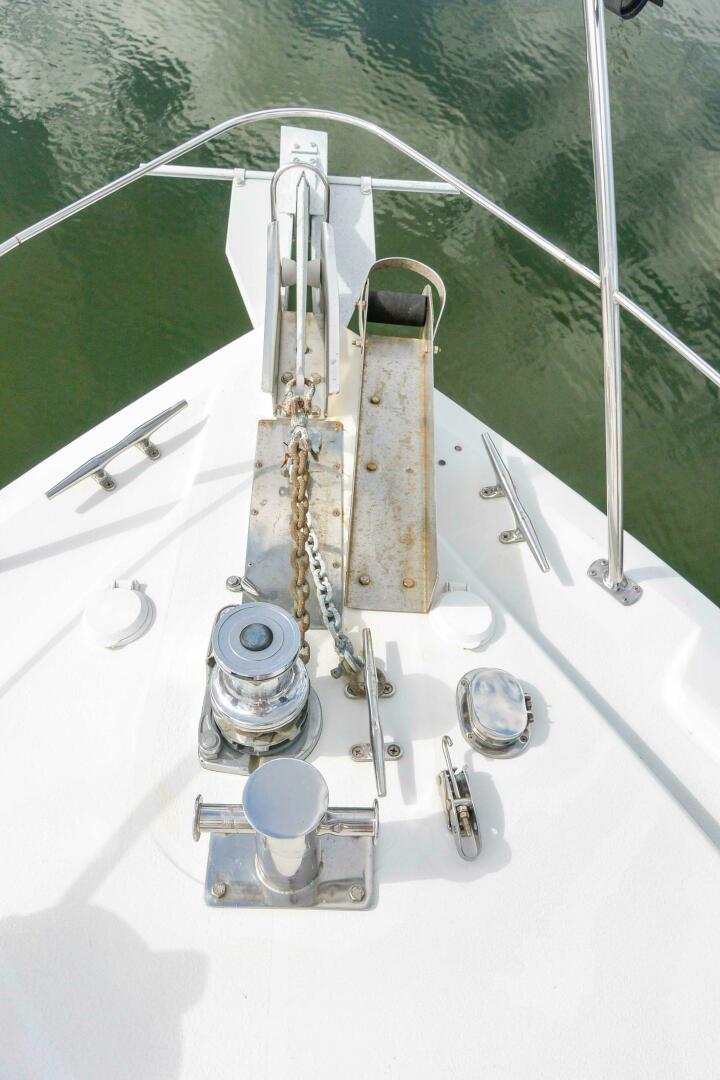

Windless two-way bow and helm controls

Anchor Danforth style Fortress FX-55

Chain rope rode est. 200’

Deck nonskid cored FRP cockpit and swim platform deck covered with Seadek

Bow pulpit and bow rails stainless steel stanchions and rail system

Stainless steel grab rails port and starboard of cabin house superstructure

Deck hatches 1 Bomar opening ventilation and escape hatch forward cabin trunk and 2 of same type in flybridge hardtop.

Windshield aluminum frame tempered glass

4 fenders with bow rail holders

Safety Equipment

Navigation lights & Anchor light

Co2 detector

Fire protection- 2 Fireboy XINTEX engine room auto fire extinguisher systems

Bilge pumps- 3 Rule 2000 located aft, engine room, forward bilges

Hull

April 2023 - Fresh bottom paint Sea Hawk shark skin black ablative, zincs: on shaft, rudder, trimtab, bow thruster and hull compounded and waxed

Exclusions List

Salon and bathroom staging decorations
