Curtis Stokes & Associates is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

CONSTRUCTION

Hull/Superstructure:  Iroko Wood on oak frames / Mahogany

Deck material:           Teak

External Designer:      Chantier Grassi

Internal Designer:      Classic Works, La Ciotat

PERFORMANCE

Speed: +/- 8 knots under engine

TANKAGE

Fuel:               798L

Fresh water:   645L

Black water:   250L

PROPULSION & STEERING

Propeller:                   Variprop DF 140 RH controllable pitch. Diameter: 24”

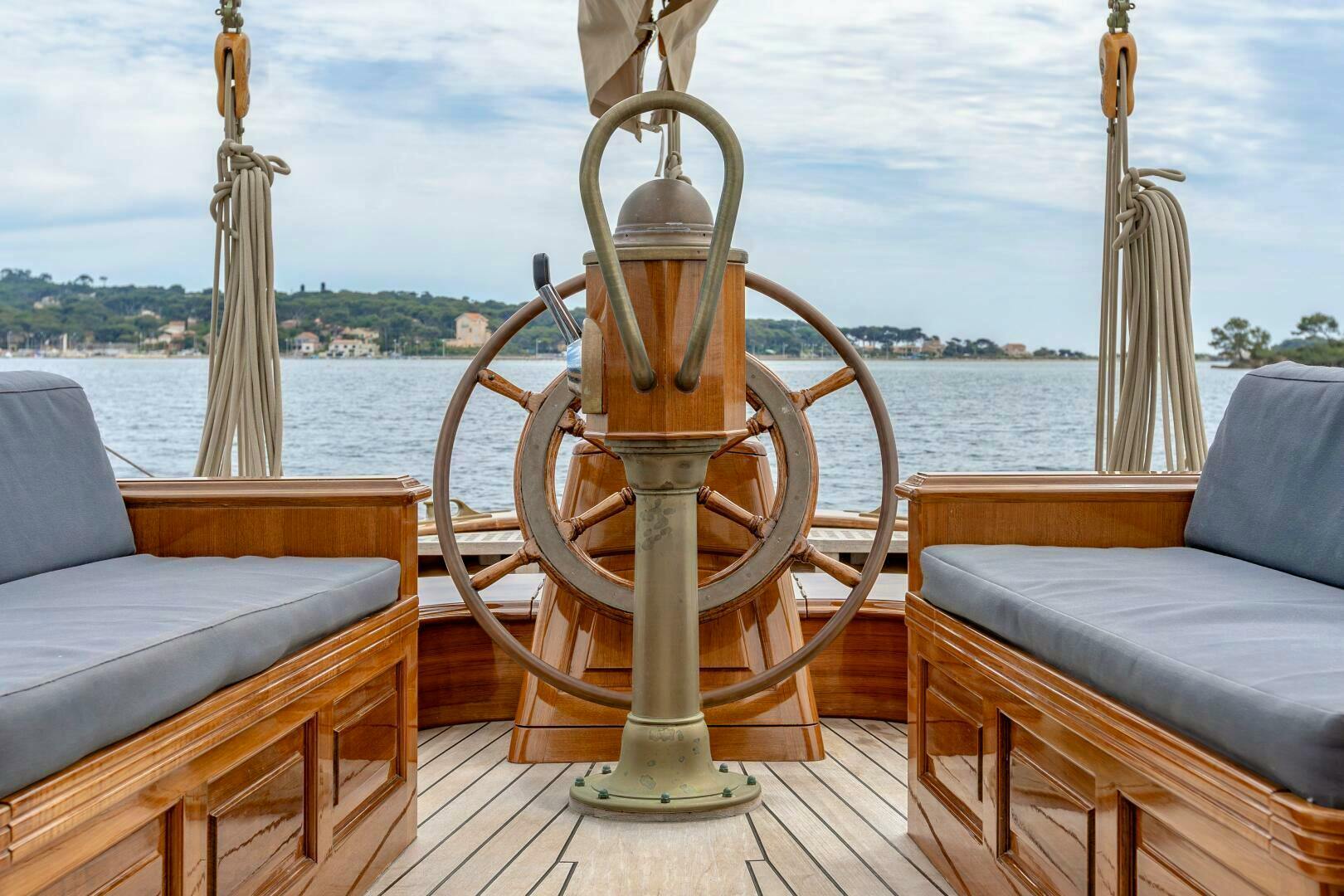

Steering wheel:          Classic helm wheel / Mahogany & Bronze

Bearing system:          SPW greased stern tube

Rudder:                      Full keel rudder

MECHANICAL

Bilge pumps:  -    Jabsco / 24V / diaphragm pump / 19 lpm / JAB5089-1100

-       Jabsco / main engine driven clutch pump / 160lpm / JAB50200-2111

-       Jabsco / Manual pump / Warrior

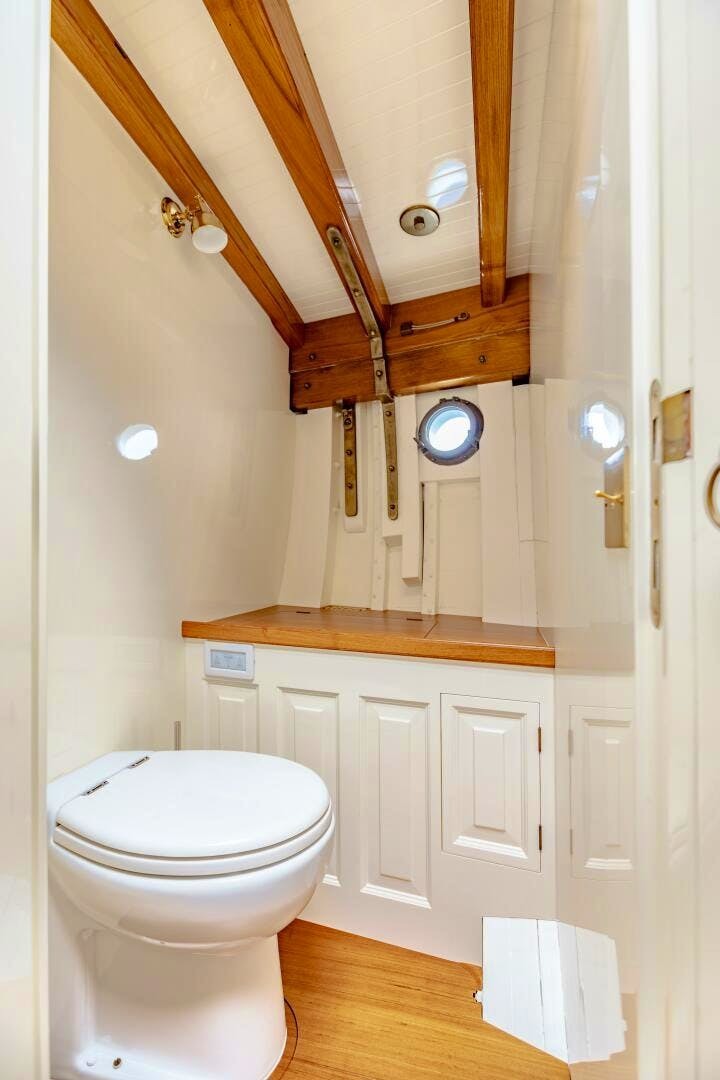

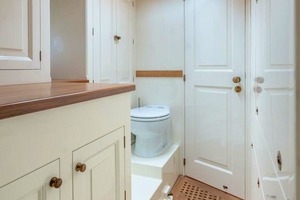

WC’s:              2 Planus electric toilets / fresh water centralized system

Air-Conditioning: BTU and maker N/A

Fridges: 2 –                             Frigonautica 24V drawer fridges / 1x 40l / 1x 130l

Ventilation in bathroom:        overhead hatches

Gas Hob / Oven:                     Techimpex 3 Burners Oven + Grill

ELECTRICAL

Inverter:                                 Victron 24V/220V 5000VA

Engine Service Alternator:     Mastervolt 24V / 150amp

House bank charger:              Victron 24V 100A

Engine battery charger:         Victron blue smart 12V 30A

House Batteries:                    Super B / 6x 12V 160A Lithium / connected as 24V 480ah bank

Water heater:                        Vetus WH75C /220V & Engine heated / 75l

Fresh water pump:                 Vetus HYDR type 19

Sea water deck wash pump: Jabsco / JAB82605

COMMUNICATION & NAVIGATION EQUIPMENT

VHF:    I-com IC-M423G at nav-station / relay stations in doghouse and at helm

Navigation

Plotter:                       - Garmin GPSMAP7416 at nav-station & Doghouse

                                  - Garmin GPSMAP 7410 at helm station

                                   - Garmin GPSMAP722 repeater in crew cabin

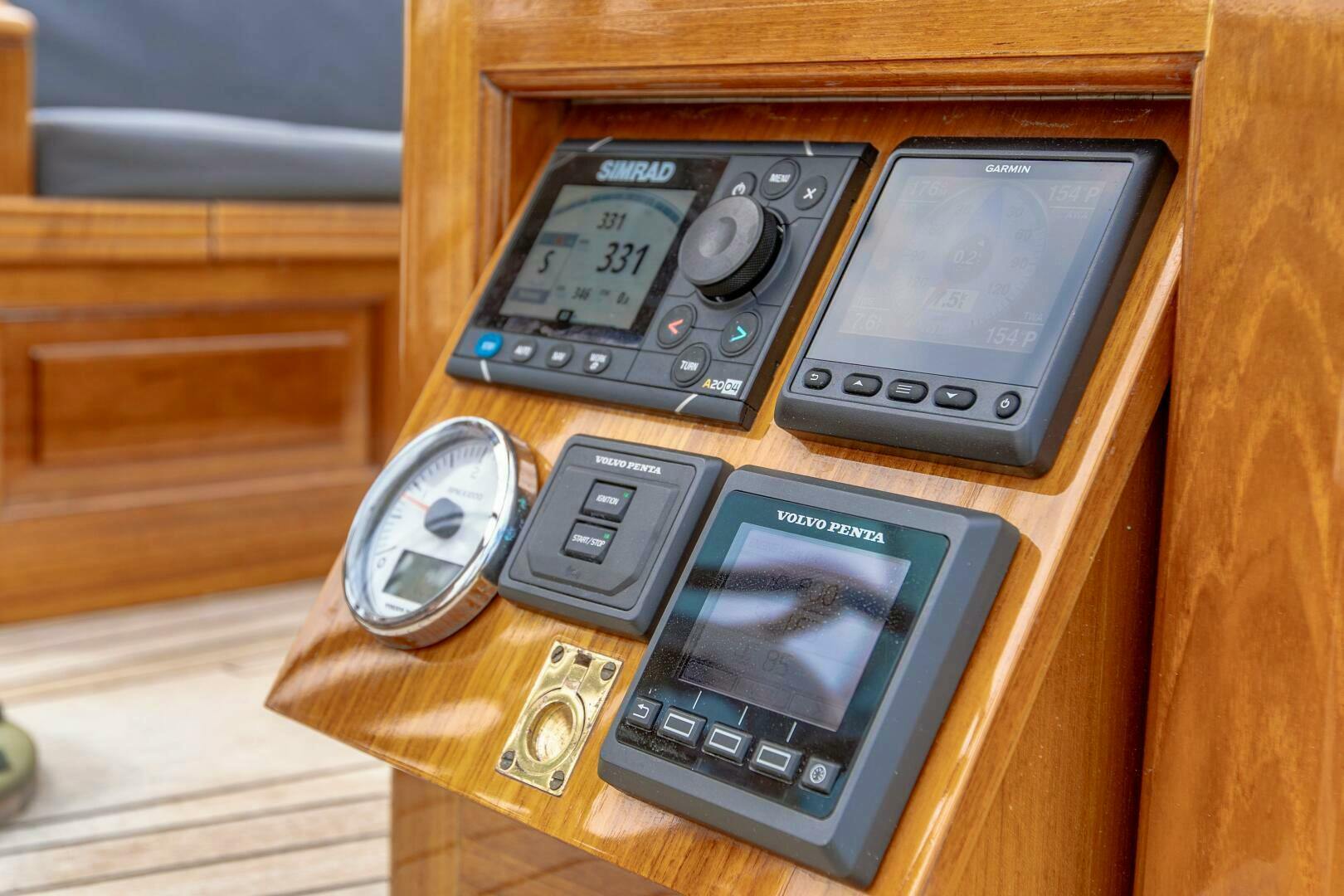

Autopilot                    Simrad AP 48

GPS receiver               Garmin

Echo sounder             Garmin

Wind instruments      Garmin GMI 20

AIS Transponder         Garmin AIS 600 send & receive

INTERIOR DESCRIPTION SUMMARY

Owners stateroom: 1 x double bed

Guests stateroom: Twin beds bed

Crew: 1 double bed plus 1 single bed

ACCOMMODATION

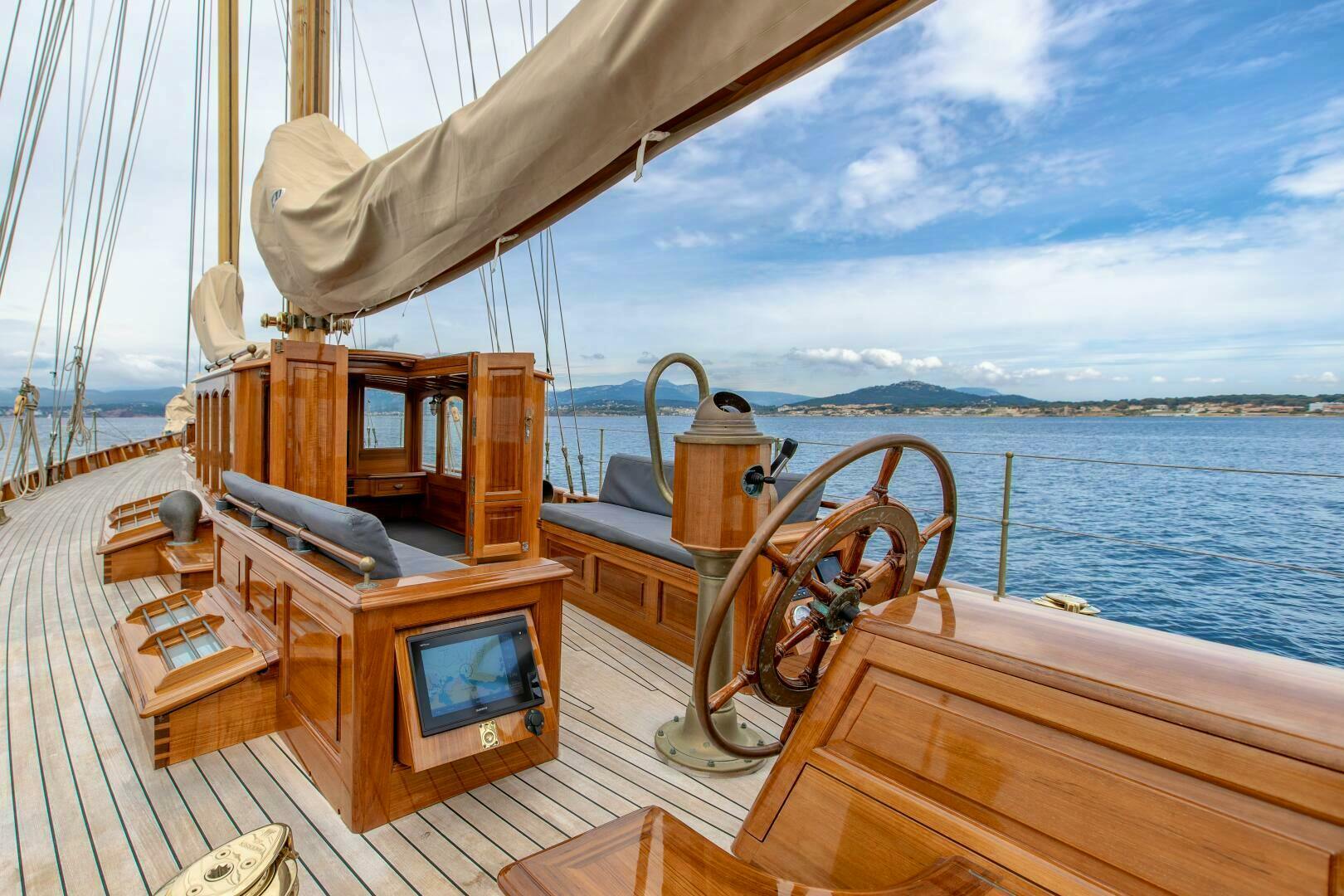

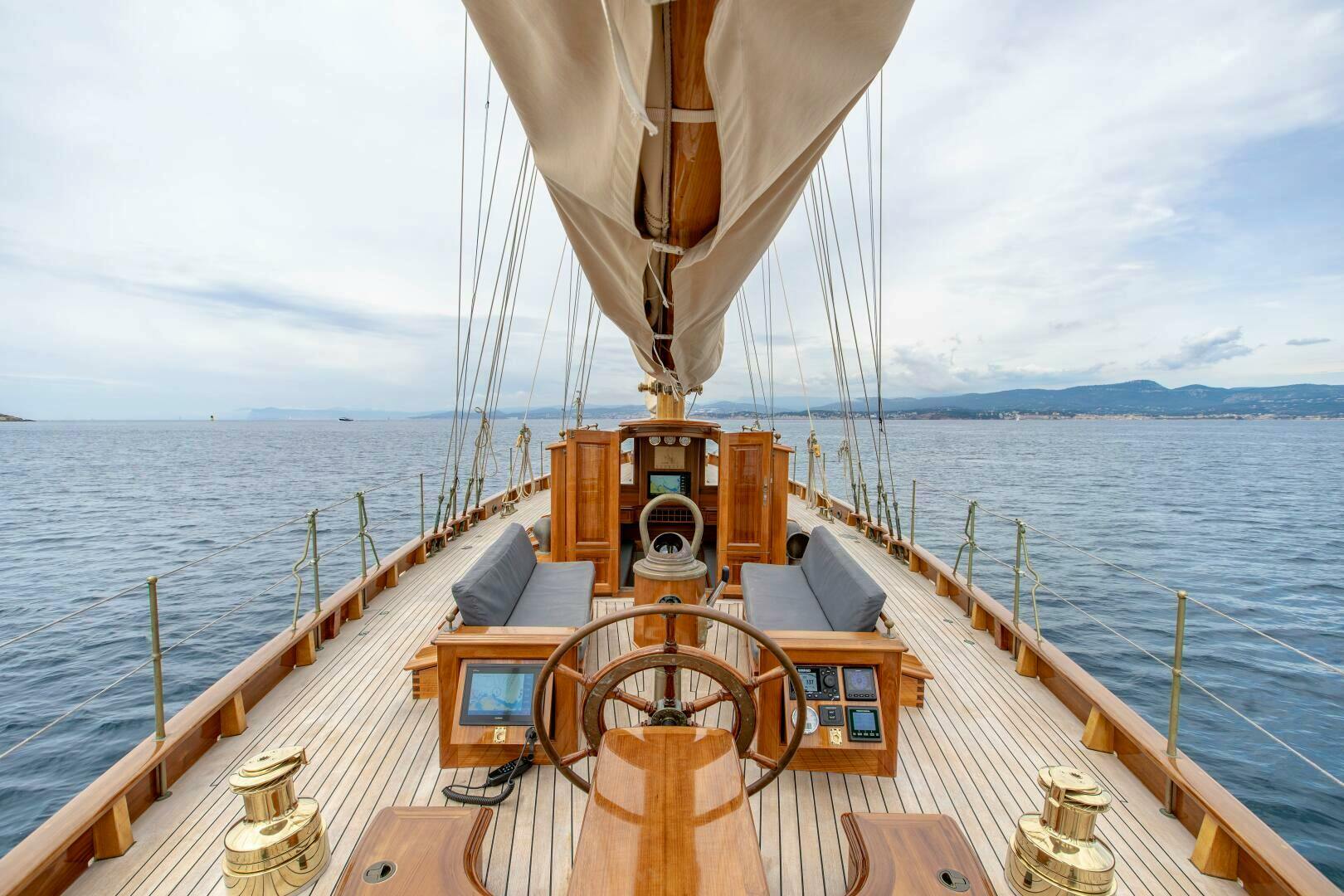

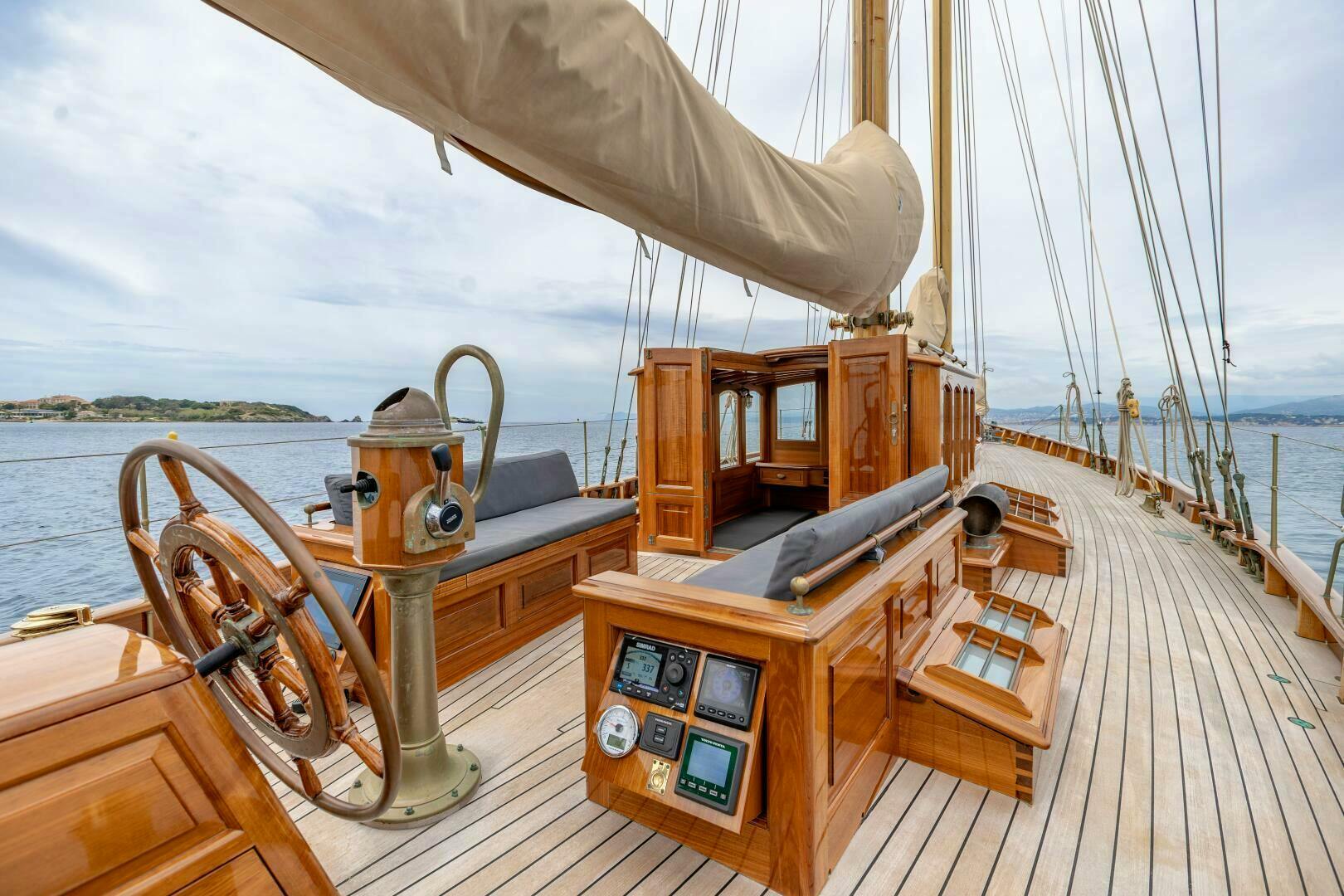

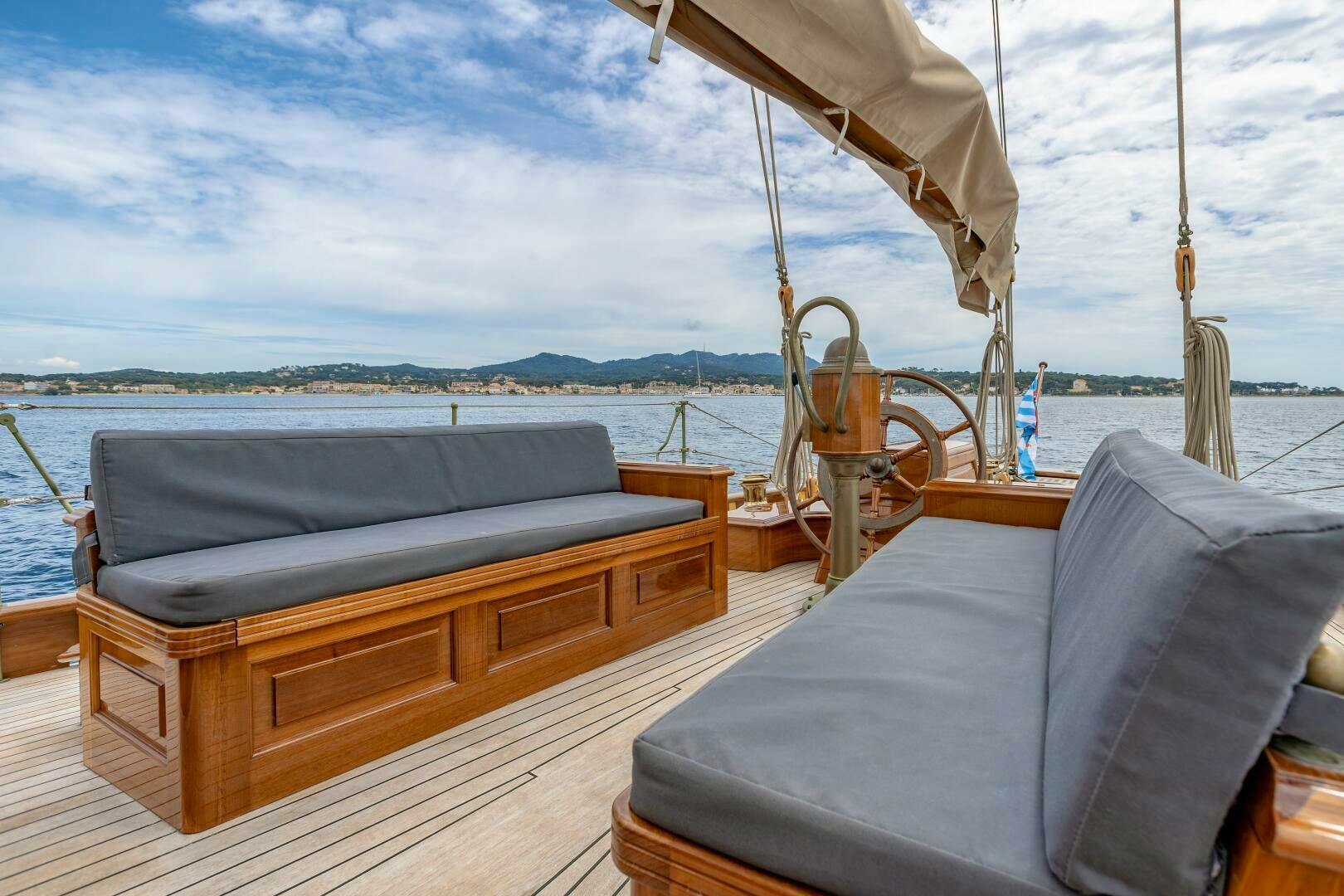

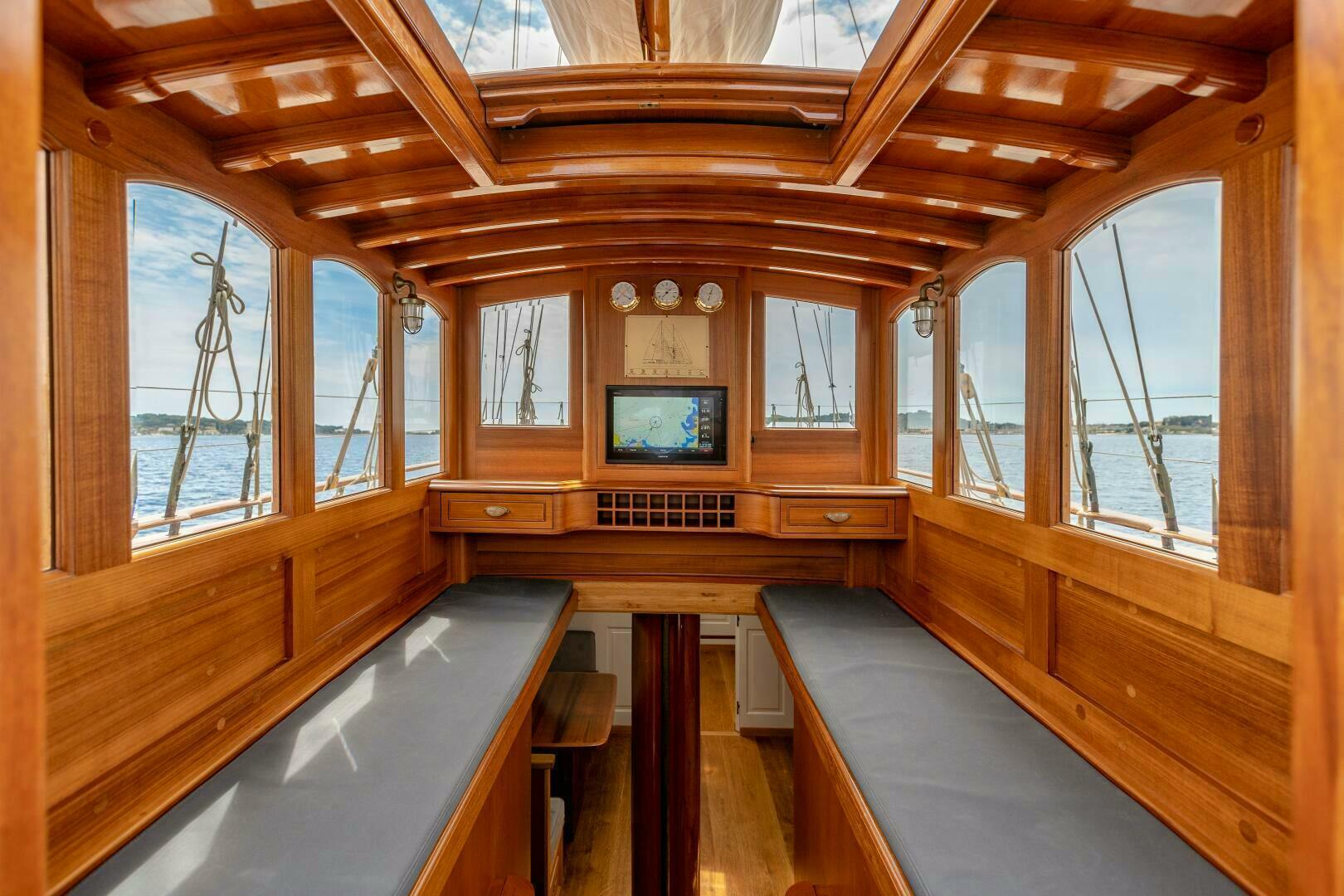

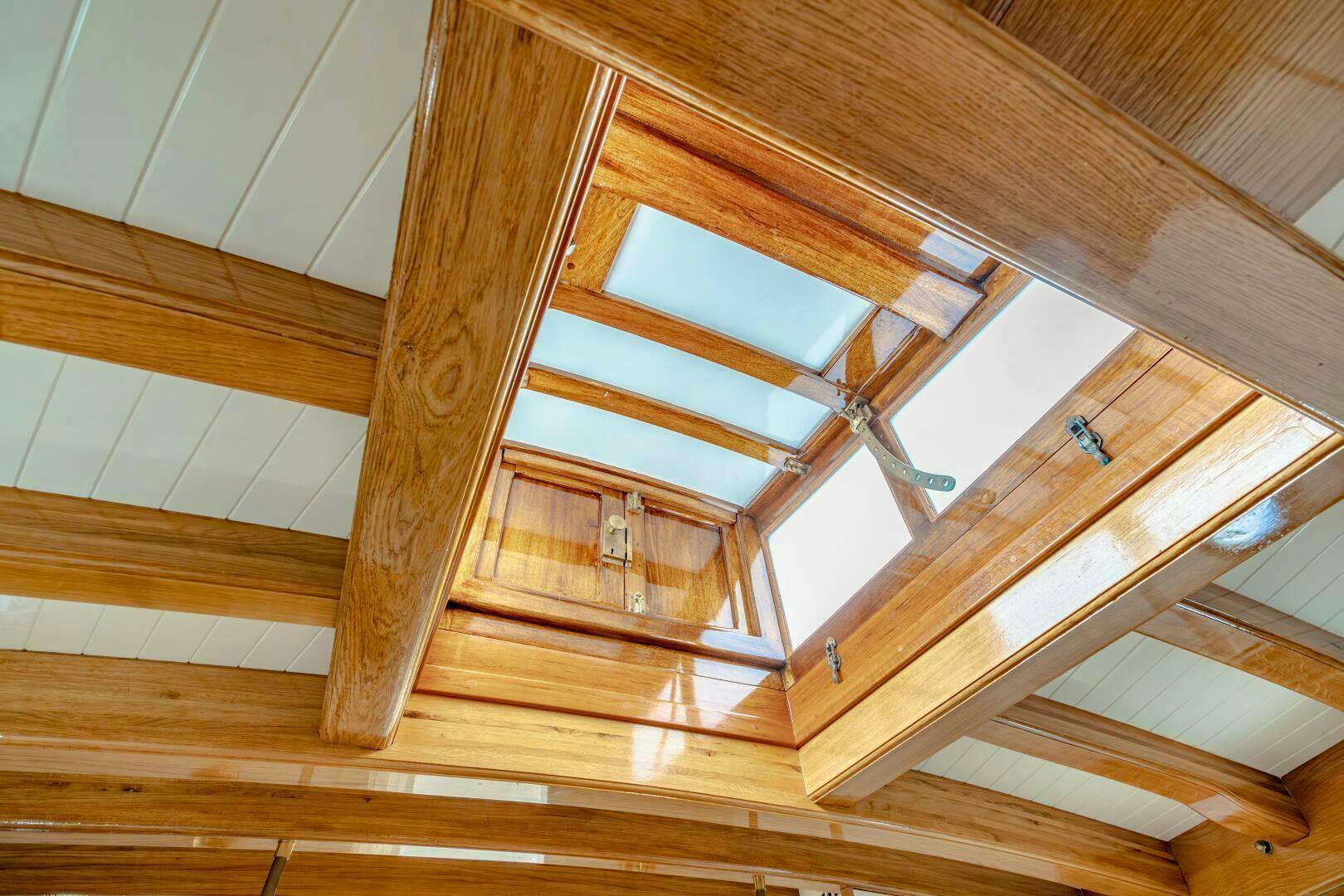

After the passerelle, on deck, you first have the doghouse which is the main cockpit opposite the steering wheel, where you can find the new Garmin navigation equipment. Then the skylights and the mahogany cabinetry.

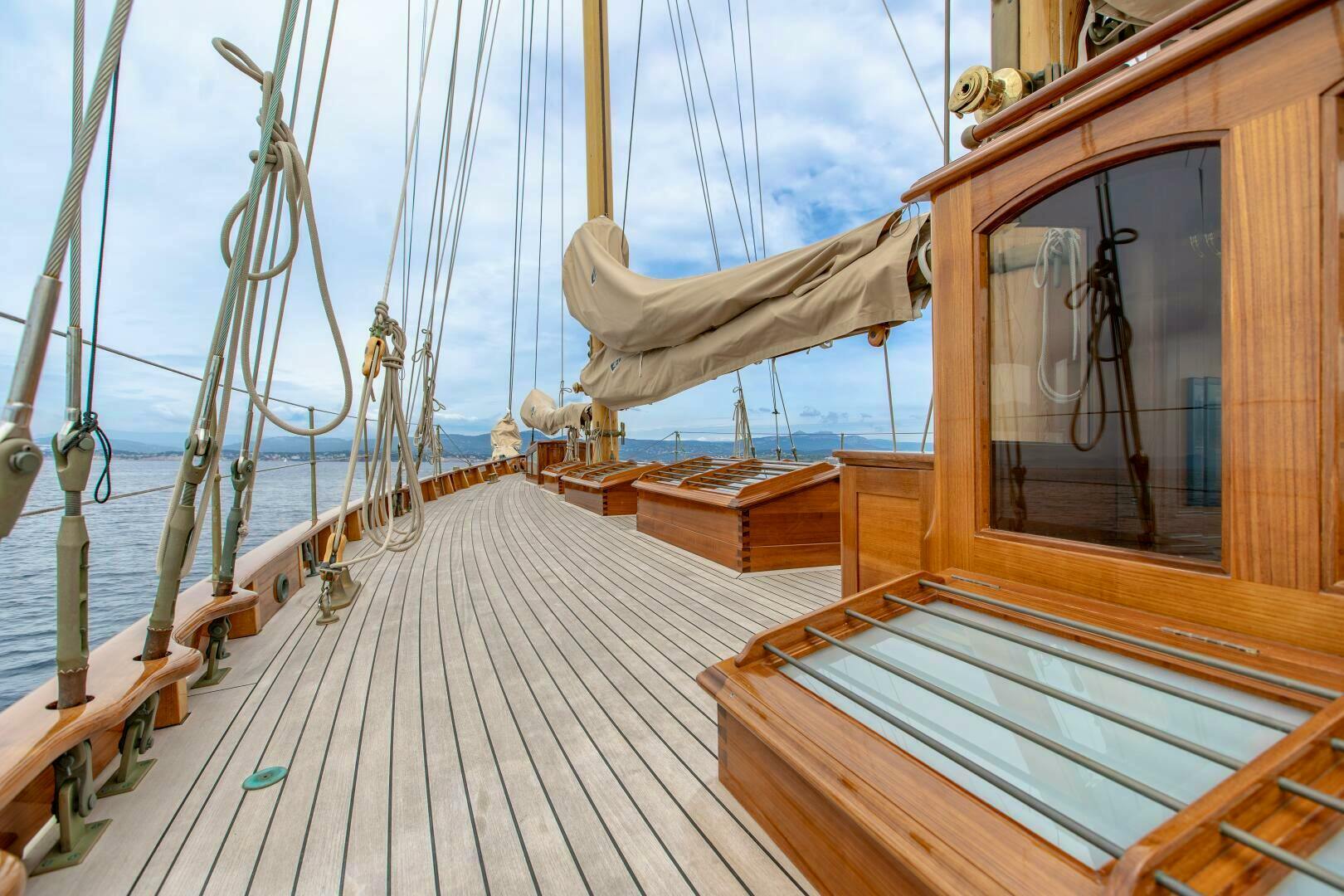

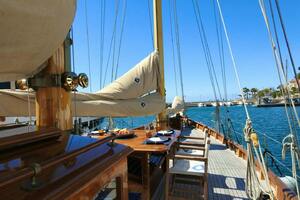

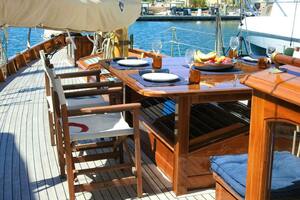

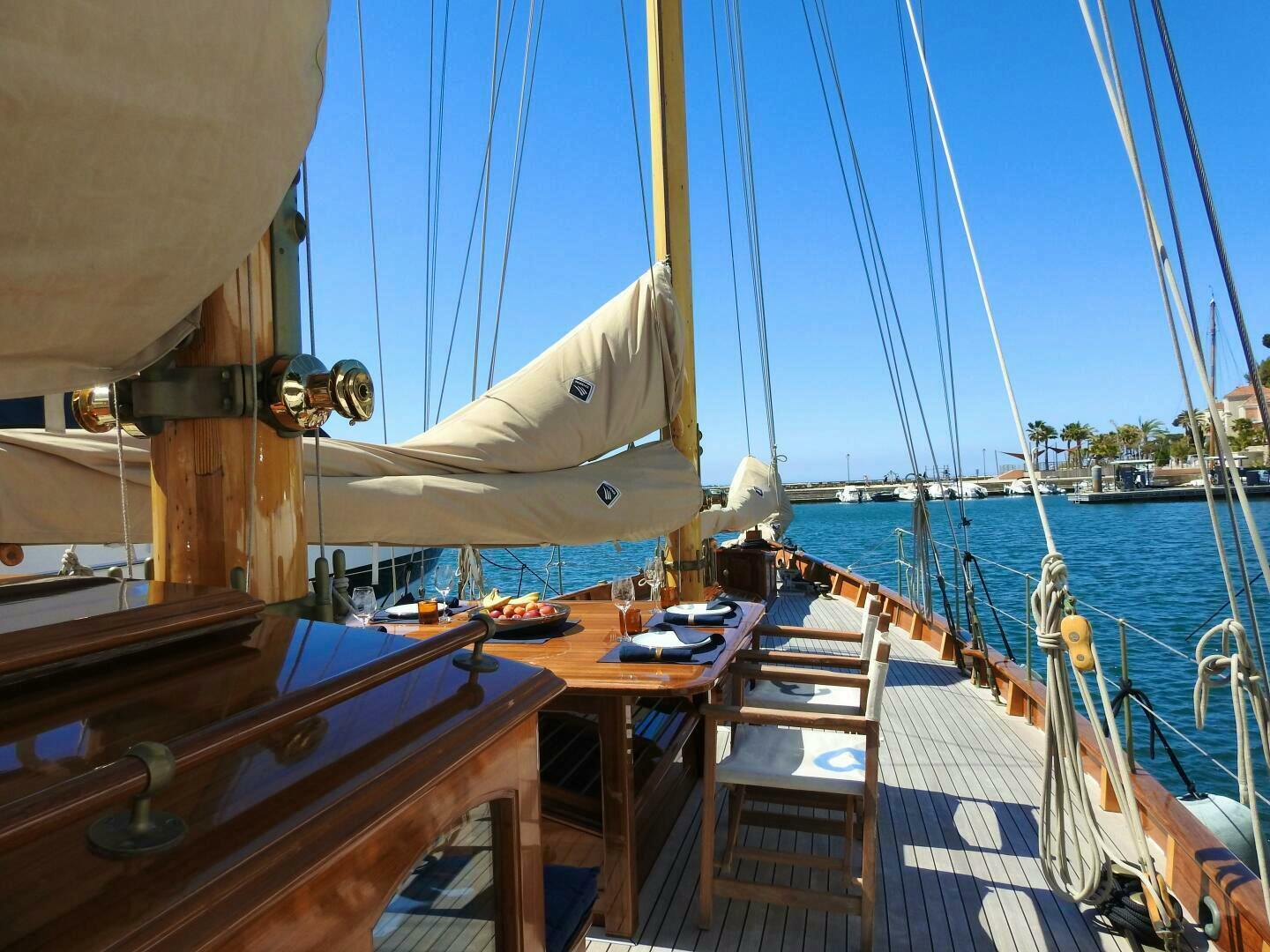

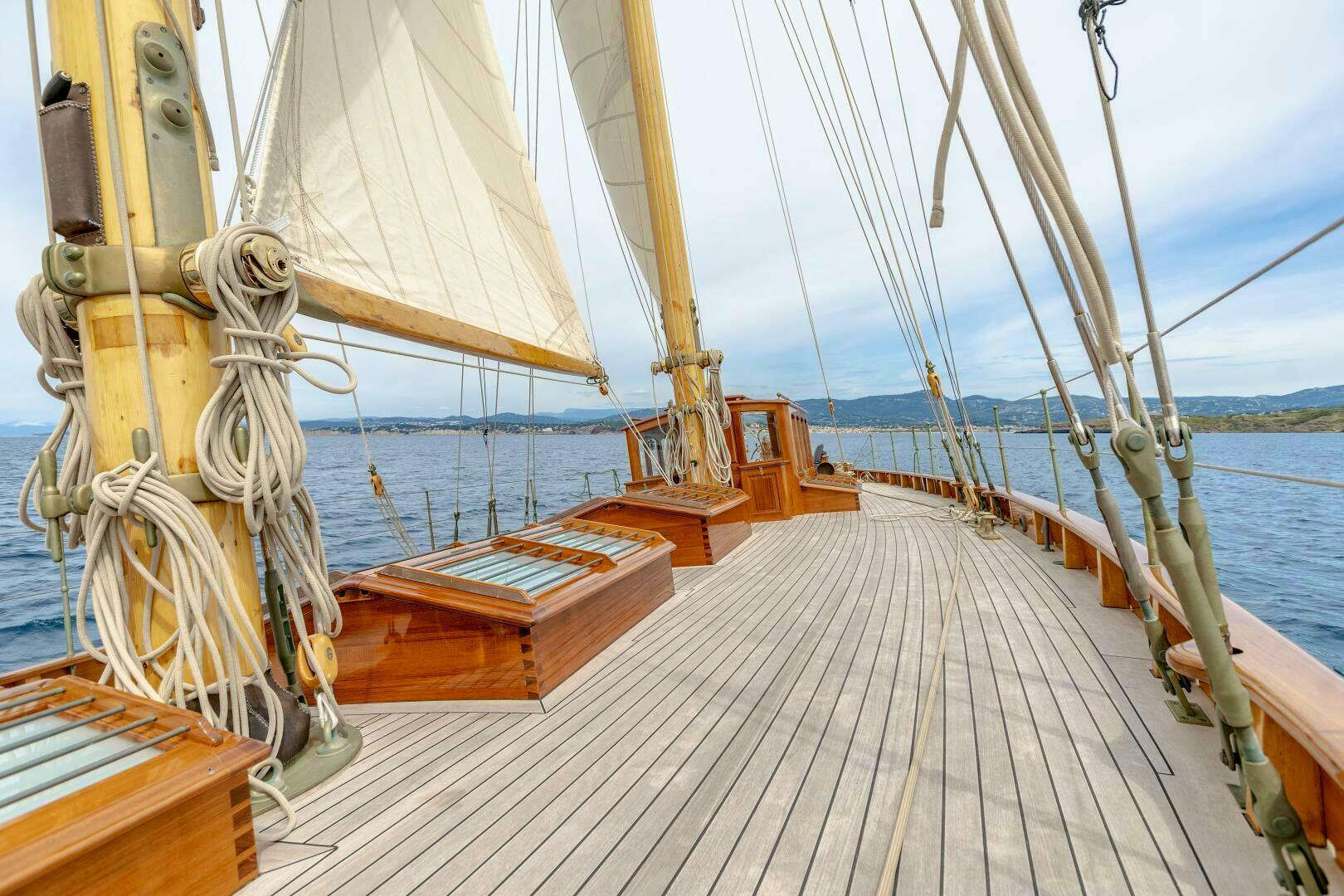

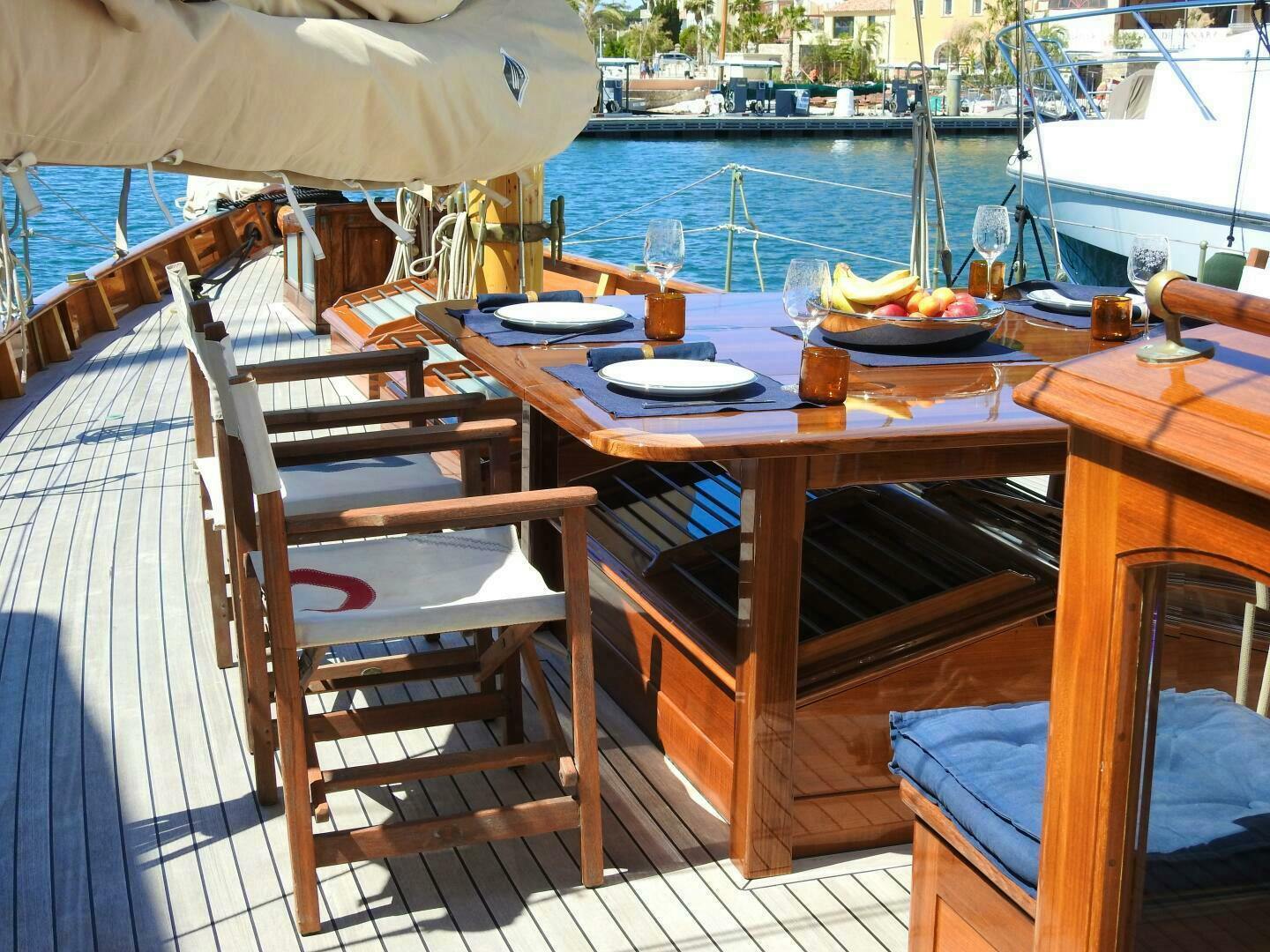

You can see all the new standing rigging which is stainless steel, the two original masts with all new sails, and then all the running rigging that was all replaced. There is nice space where to put a proper dining table when at the anchor or in an harbour somewhere.

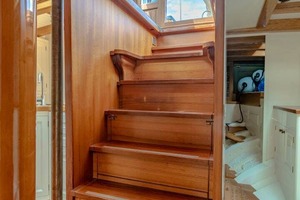

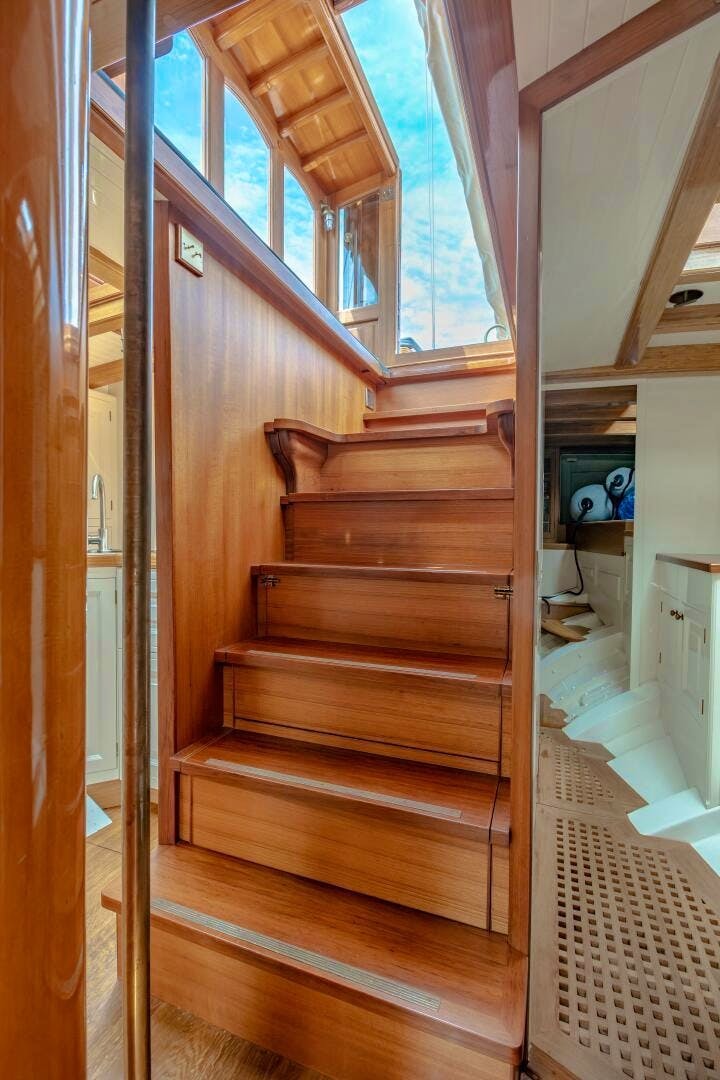

Back in the doghouse, you can find comfortable stairs down. Beneath the stairs when you go down below you can access the engine room. There are three different accesses to the engine room which is really great and makes maintenance much easier.

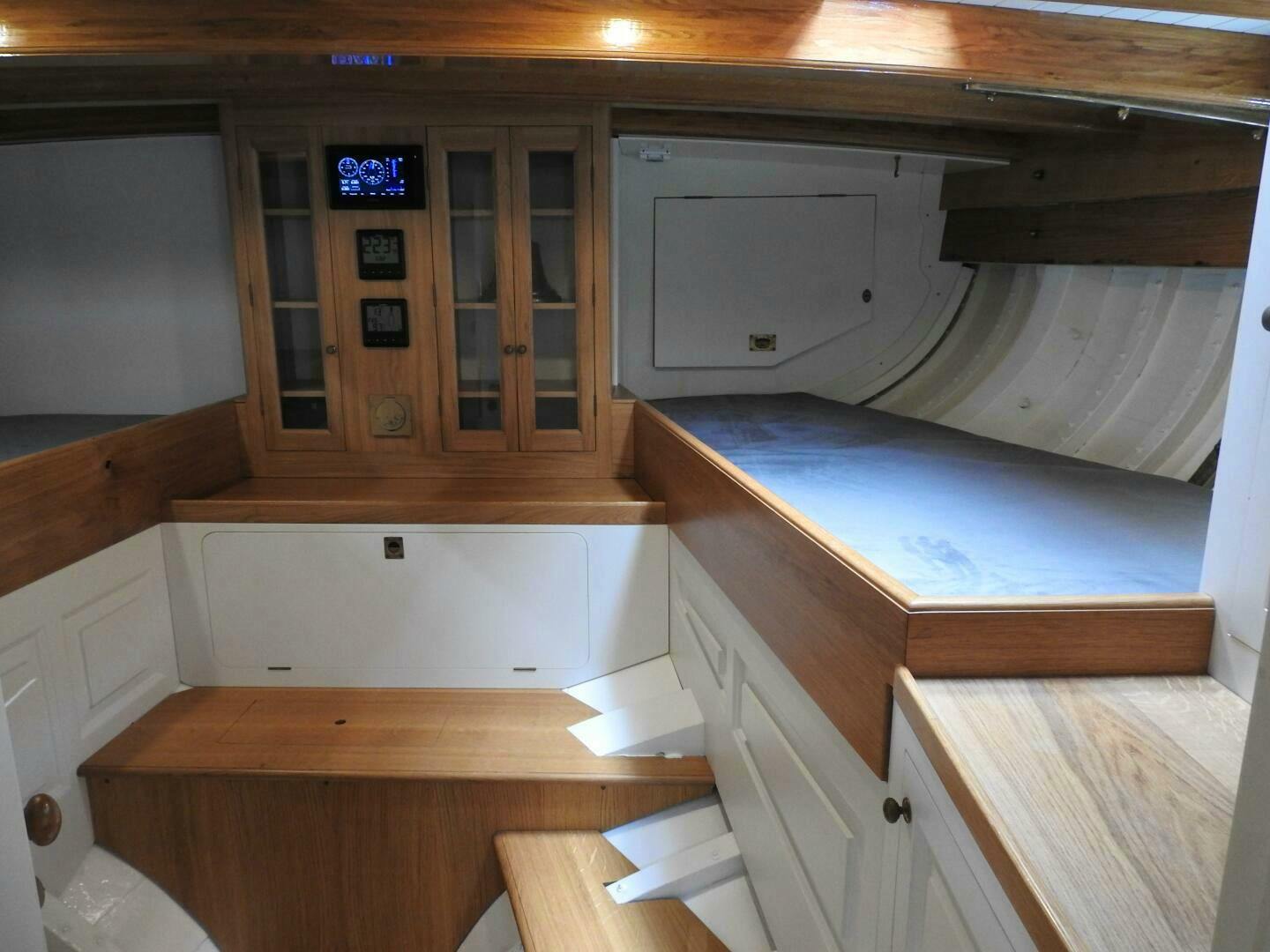

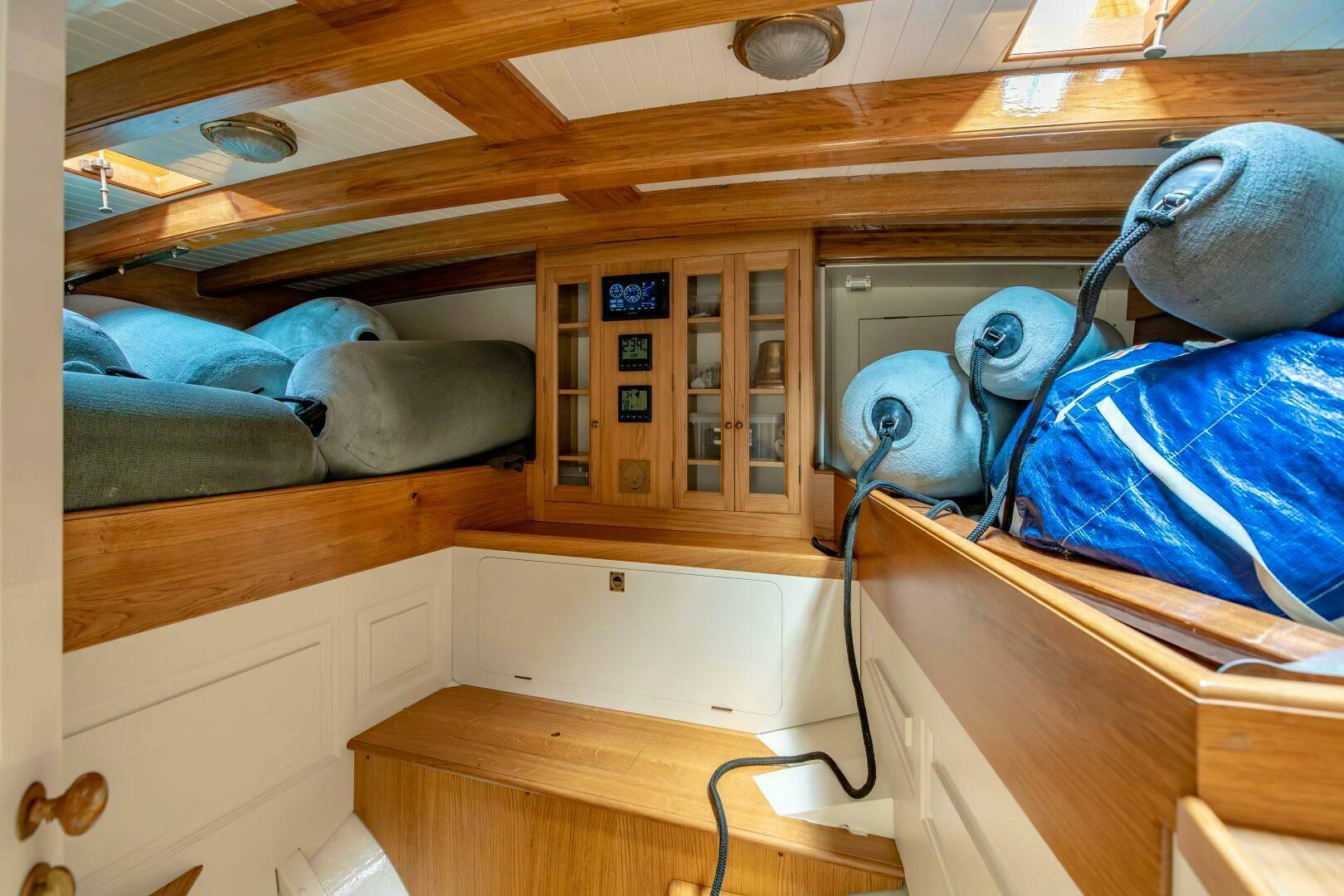

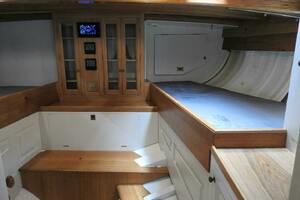

One other of these is in the aft twin cabin where the crew sleeps and where you can find repeaters of all navigation equipments.

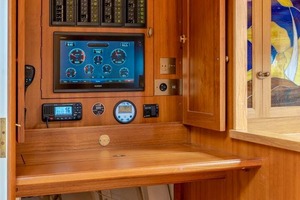

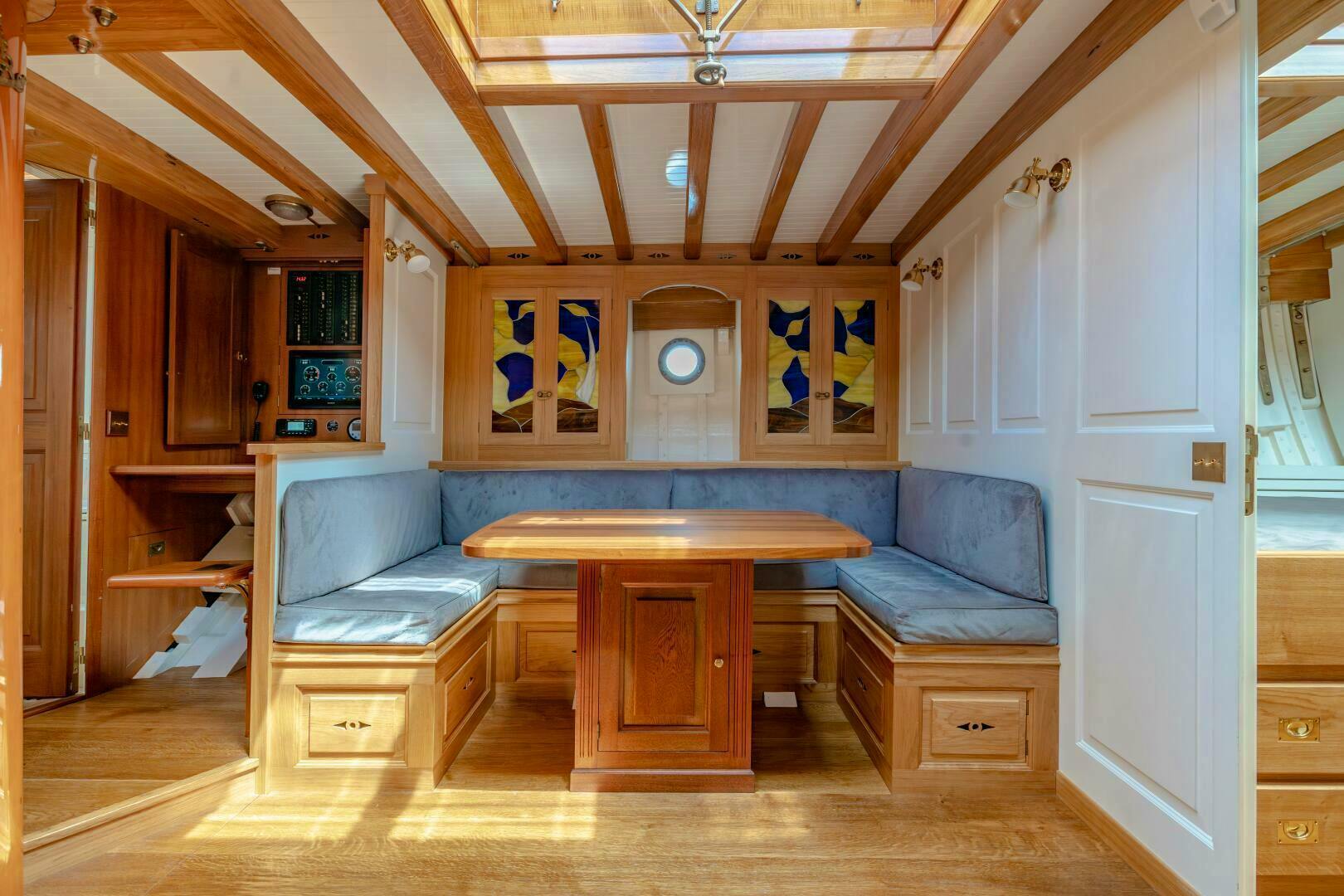

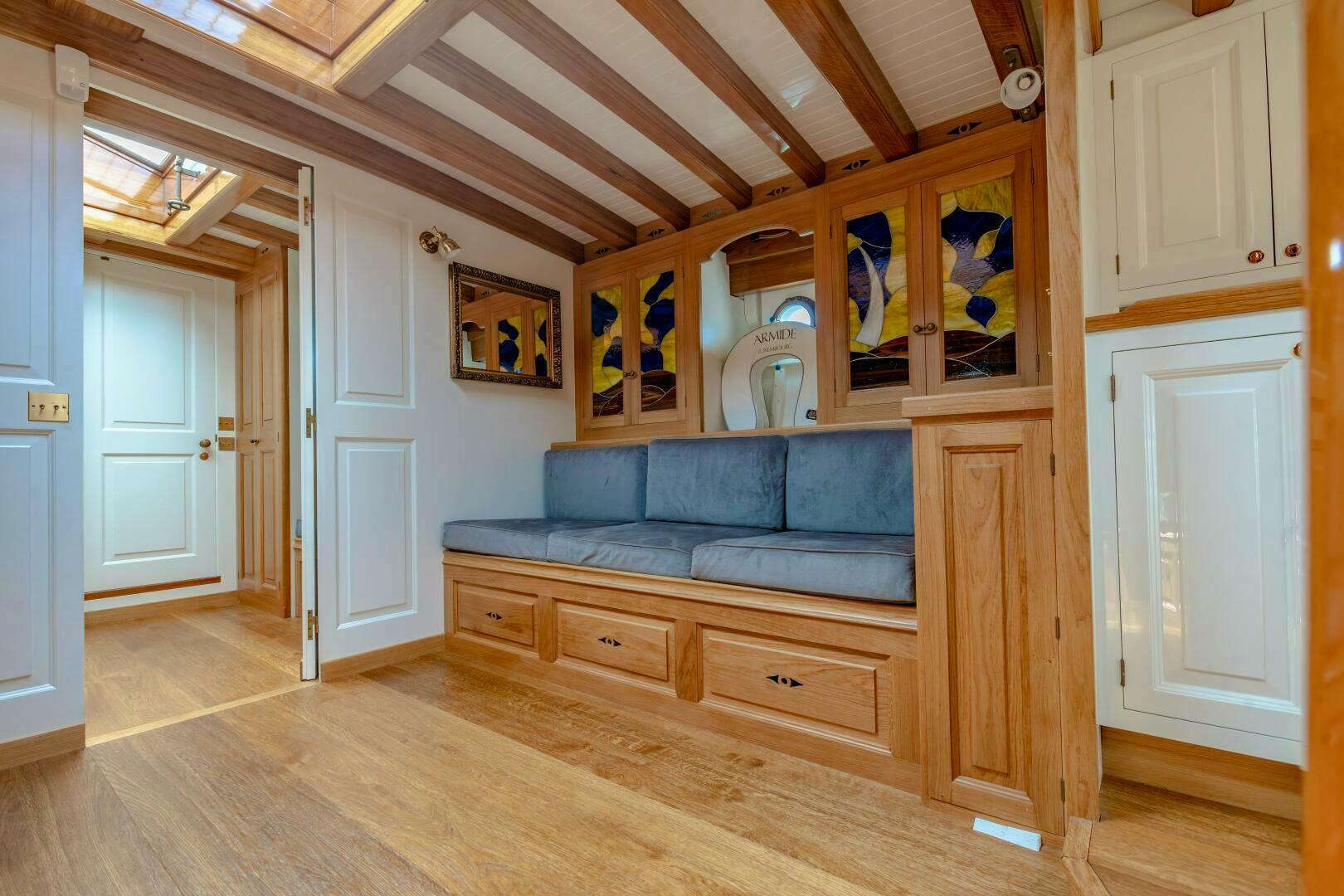

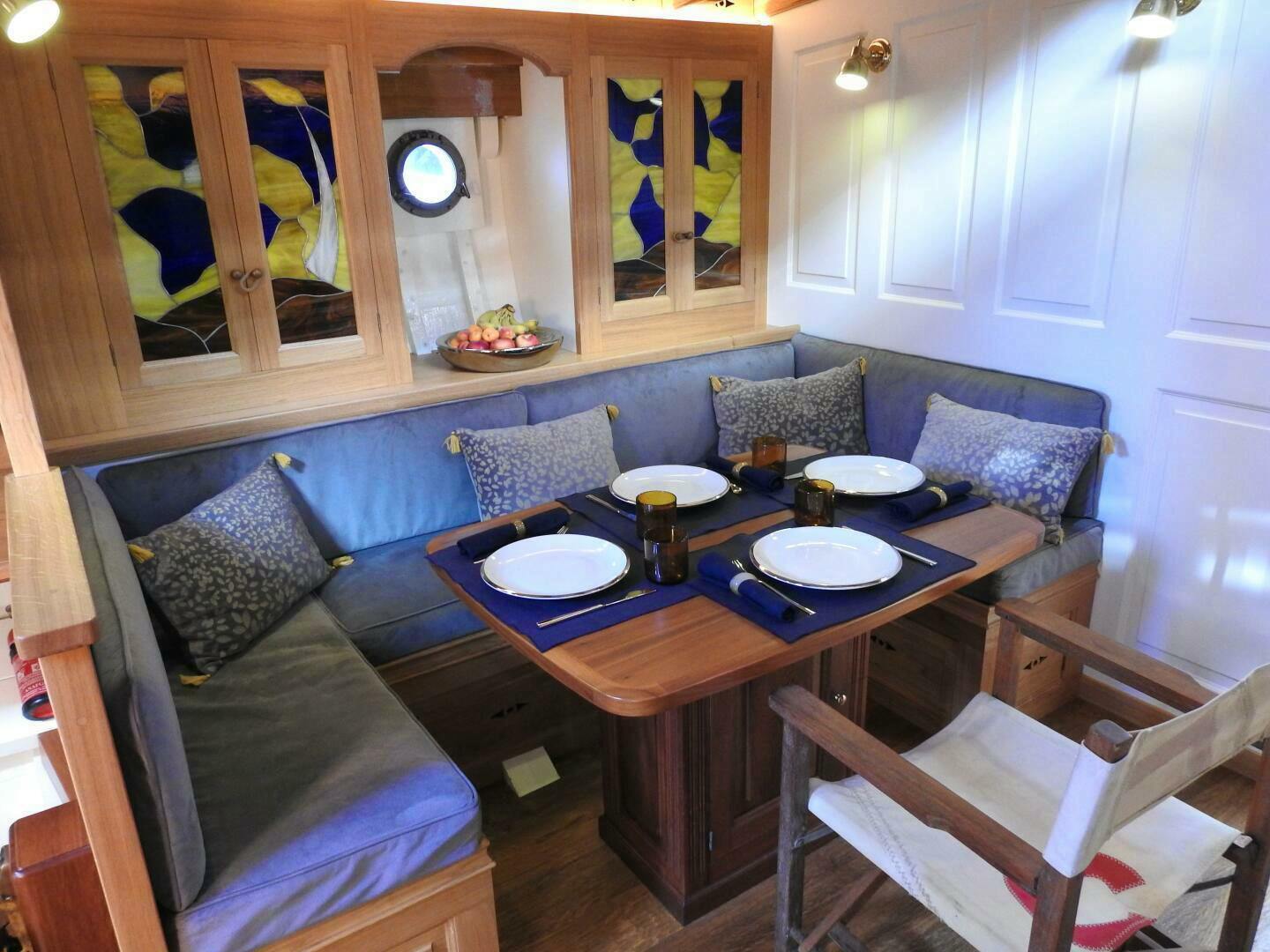

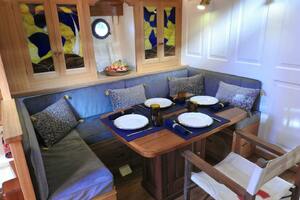

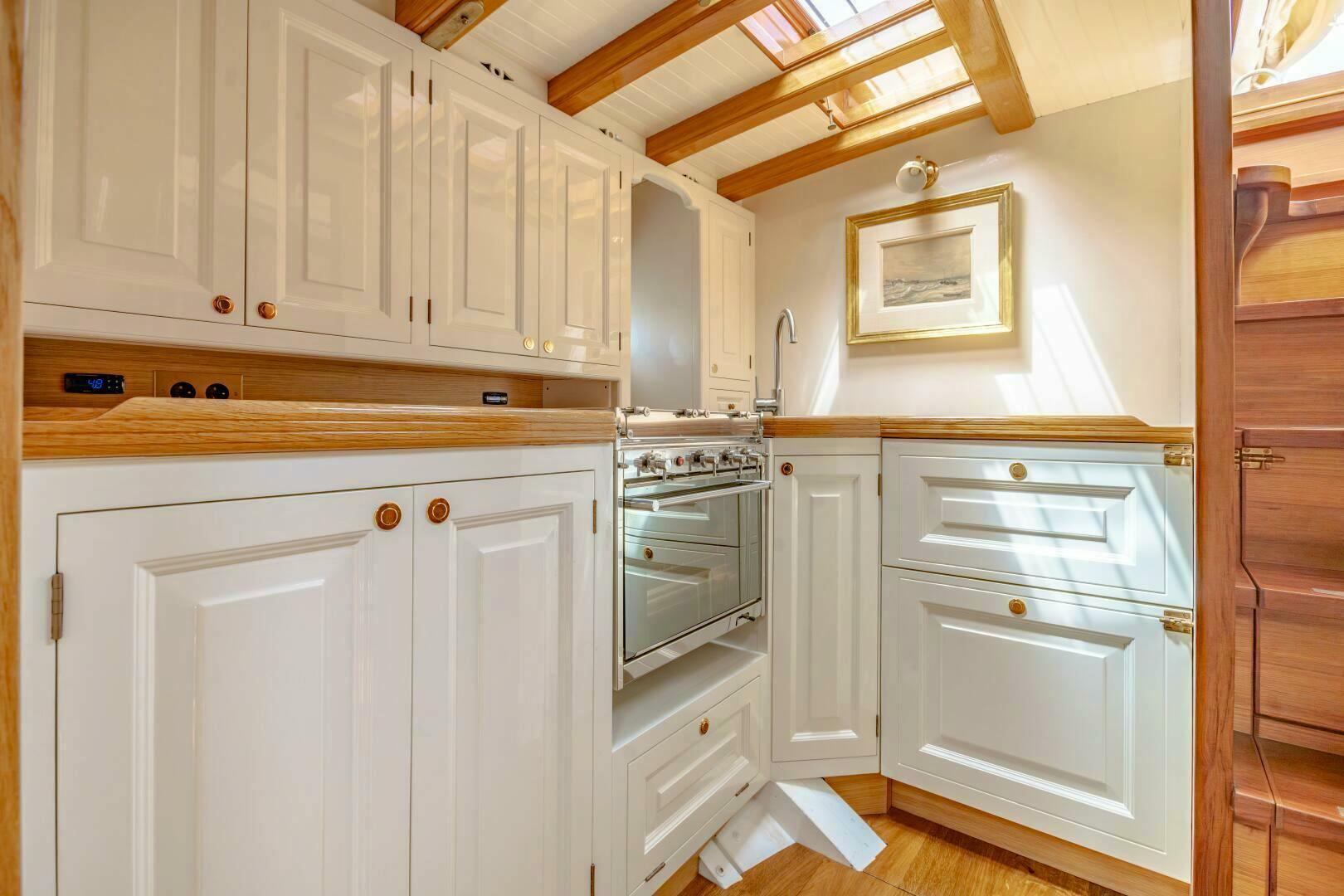

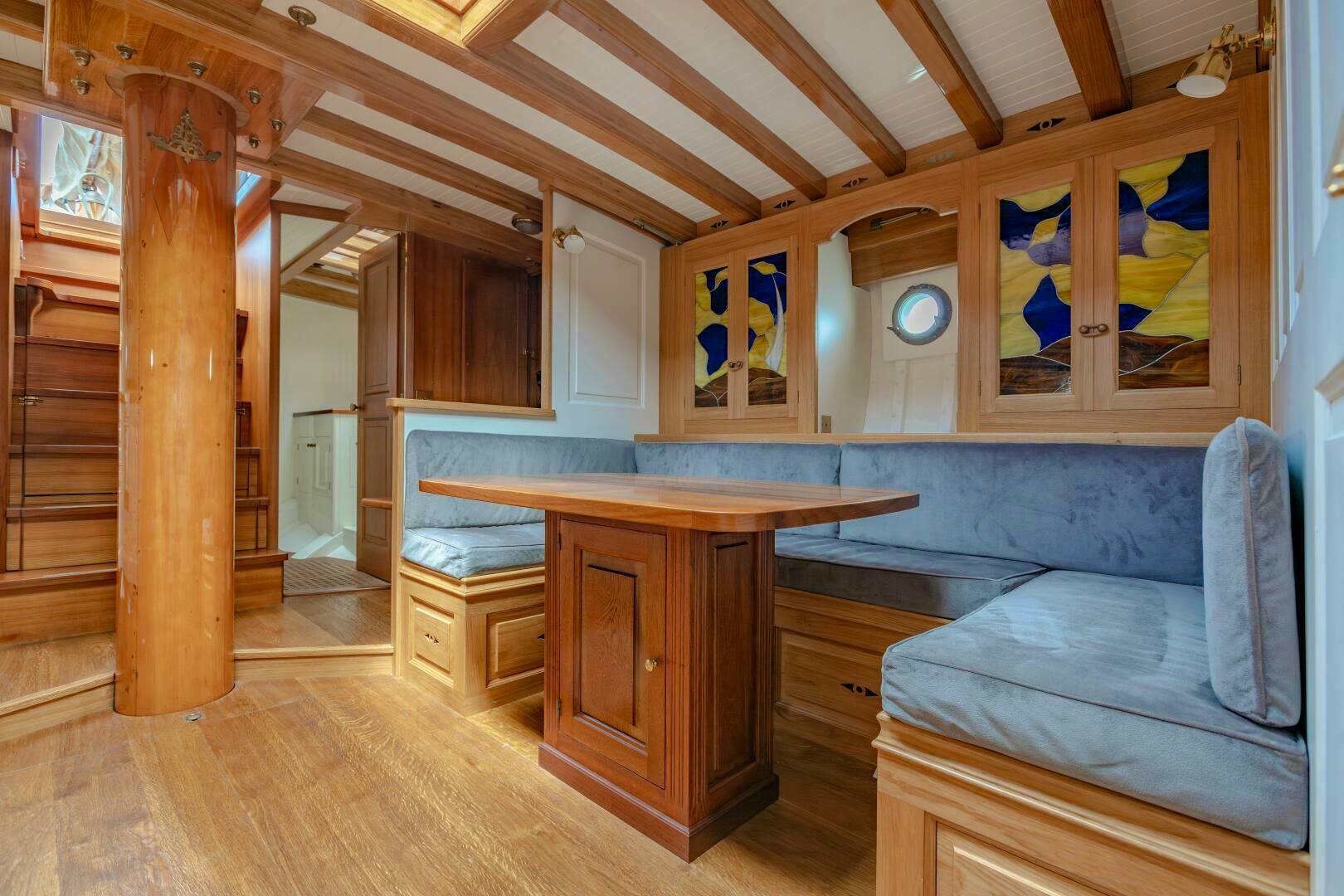

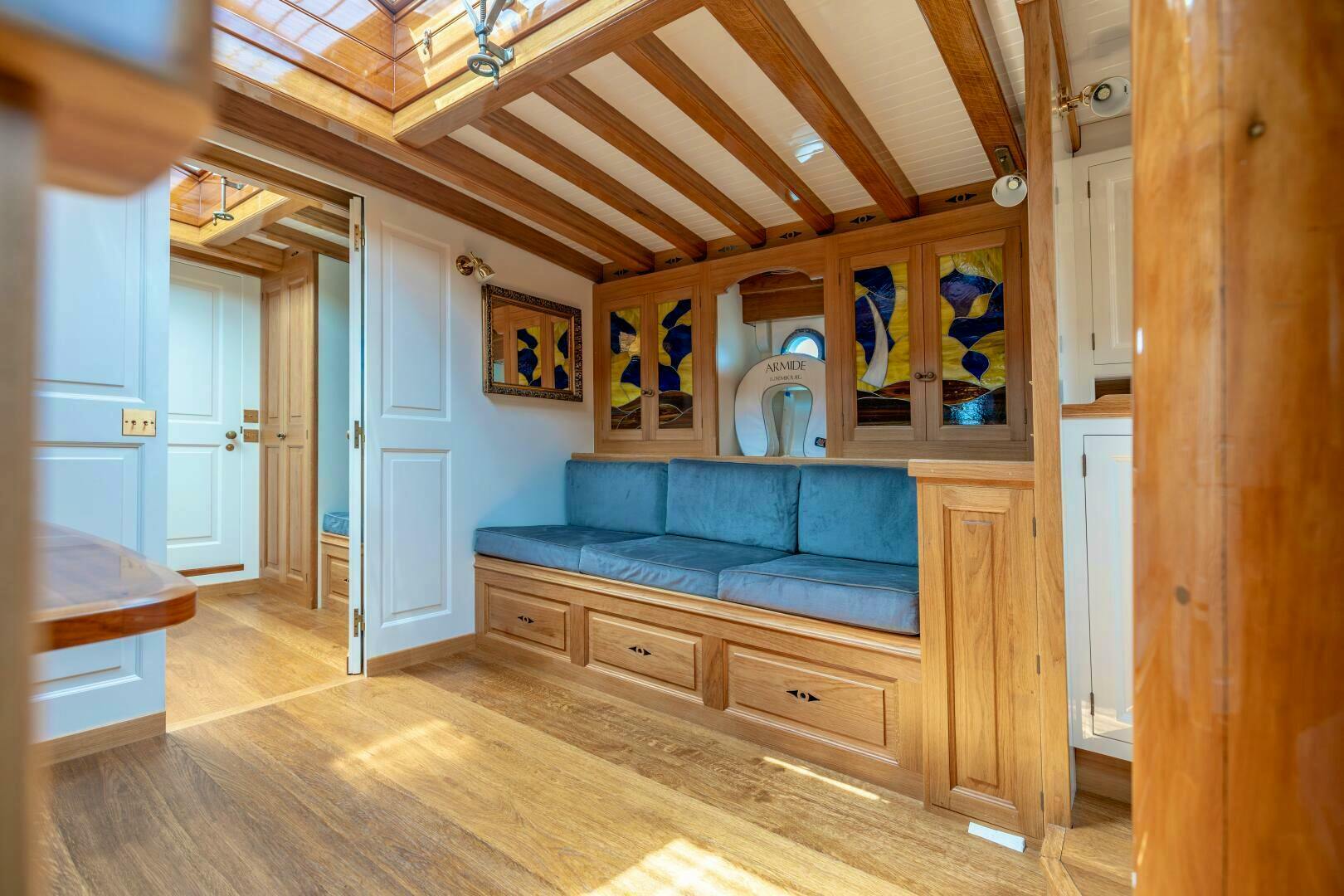

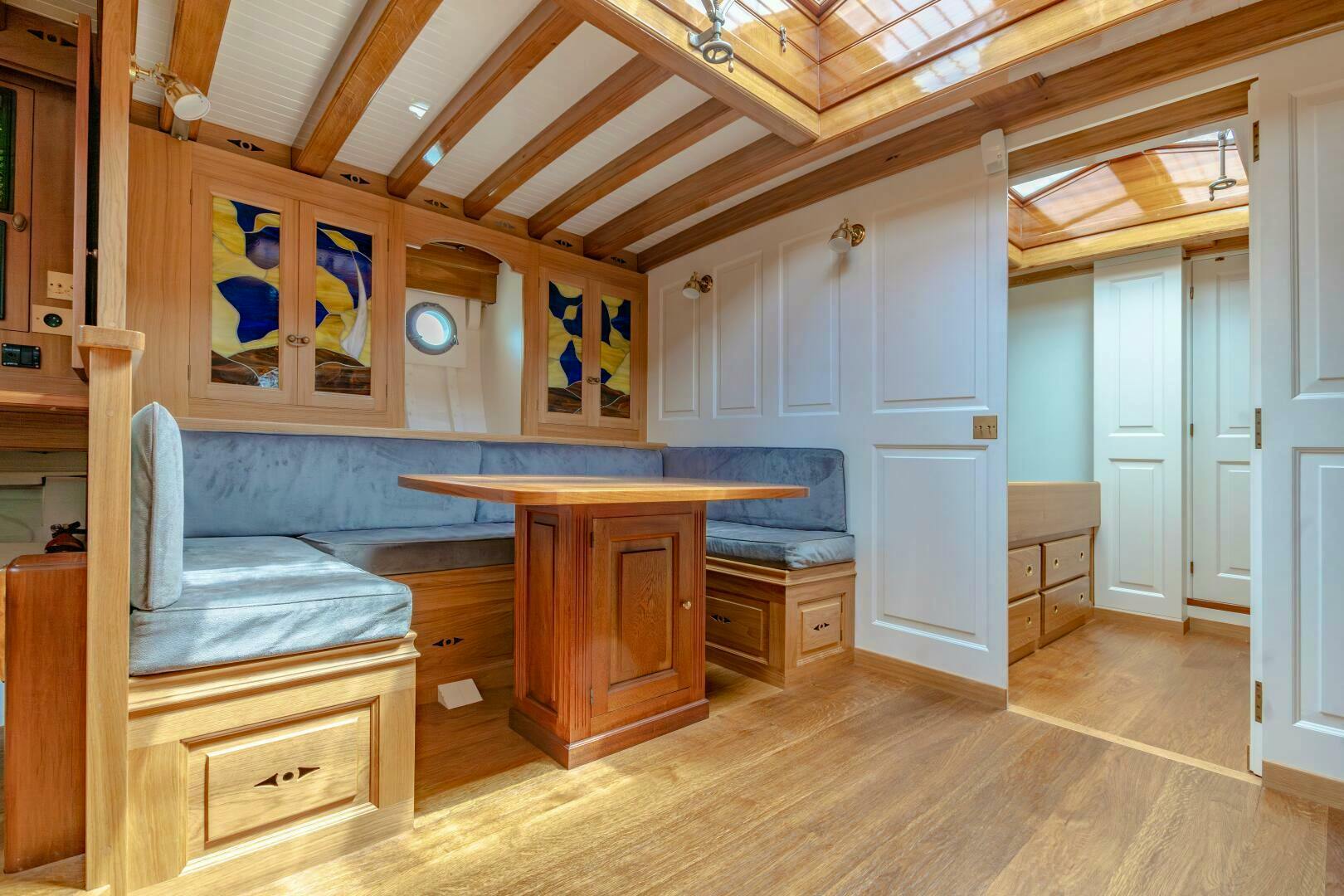

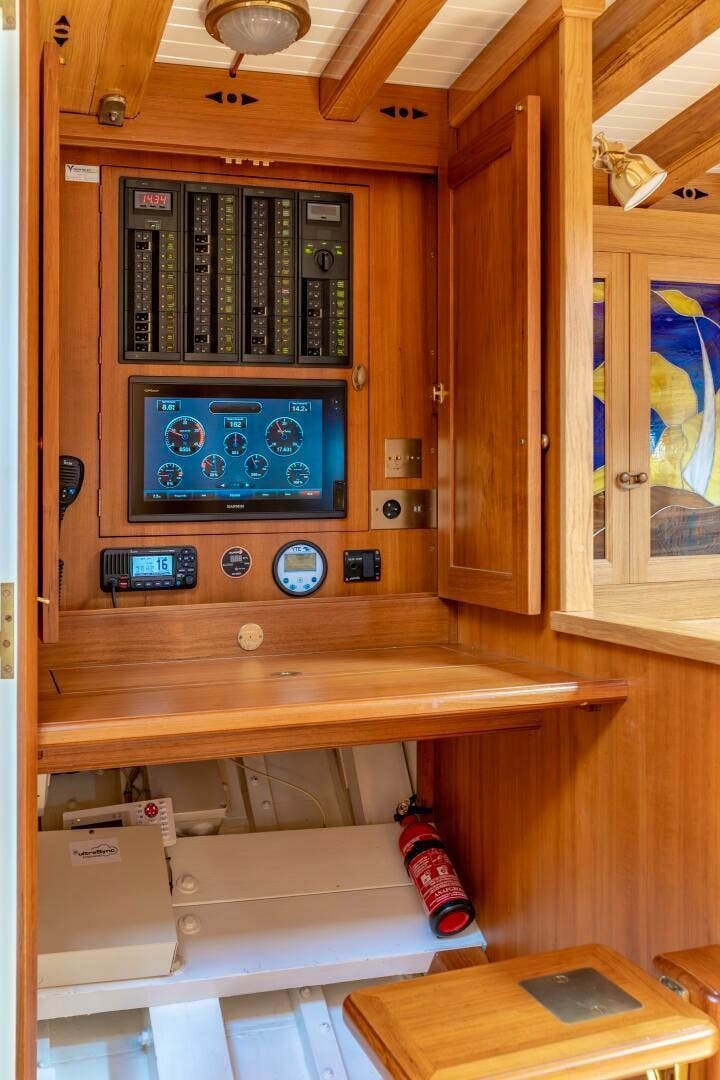

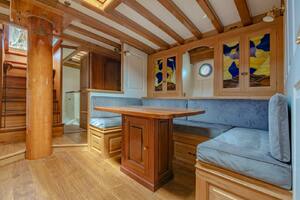

Moving forward you find the chart table, dining table on port side, sofa on starboard side and beautiful galley behind you.

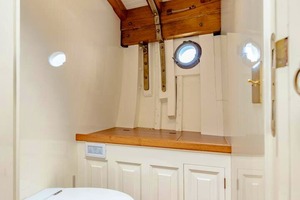

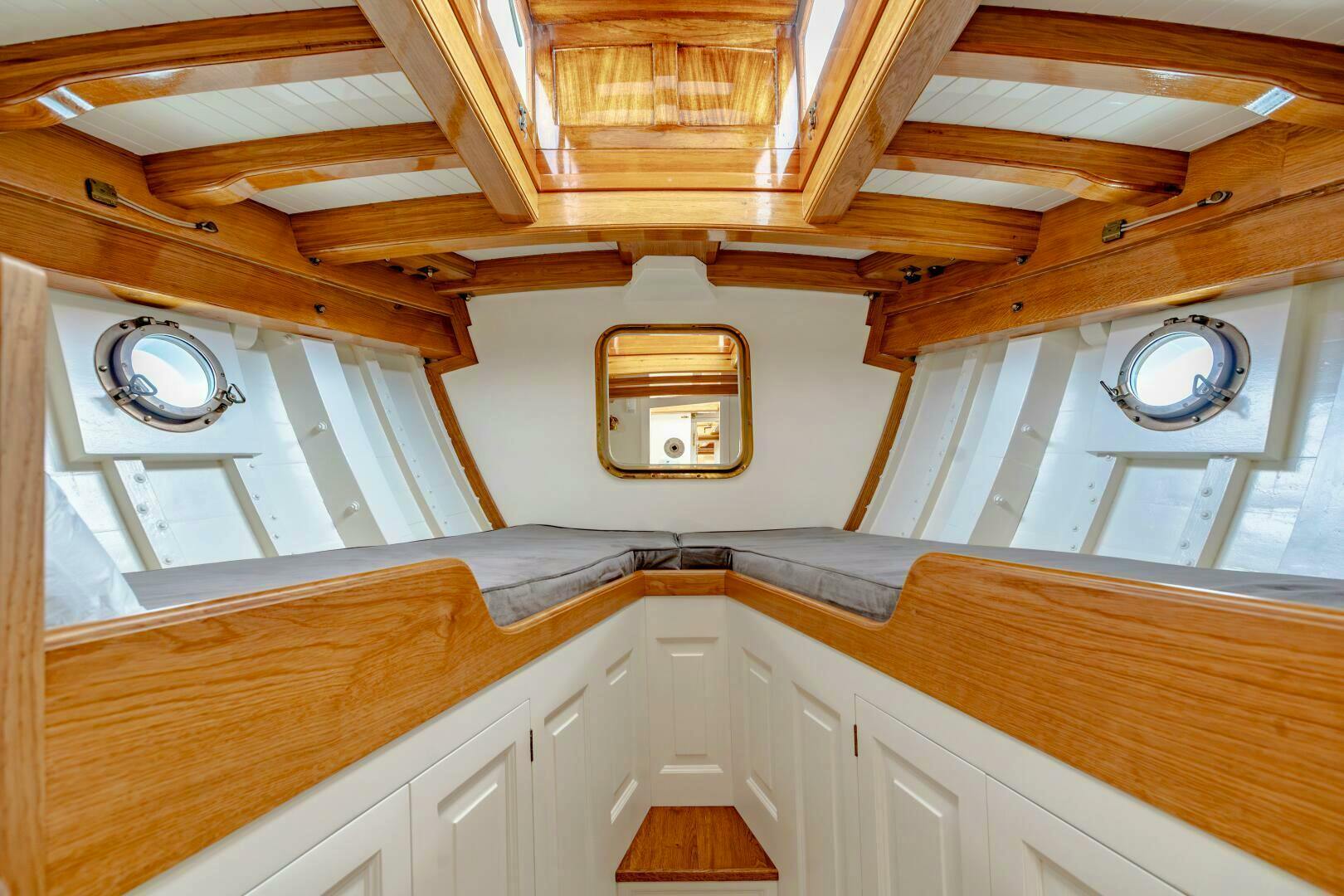

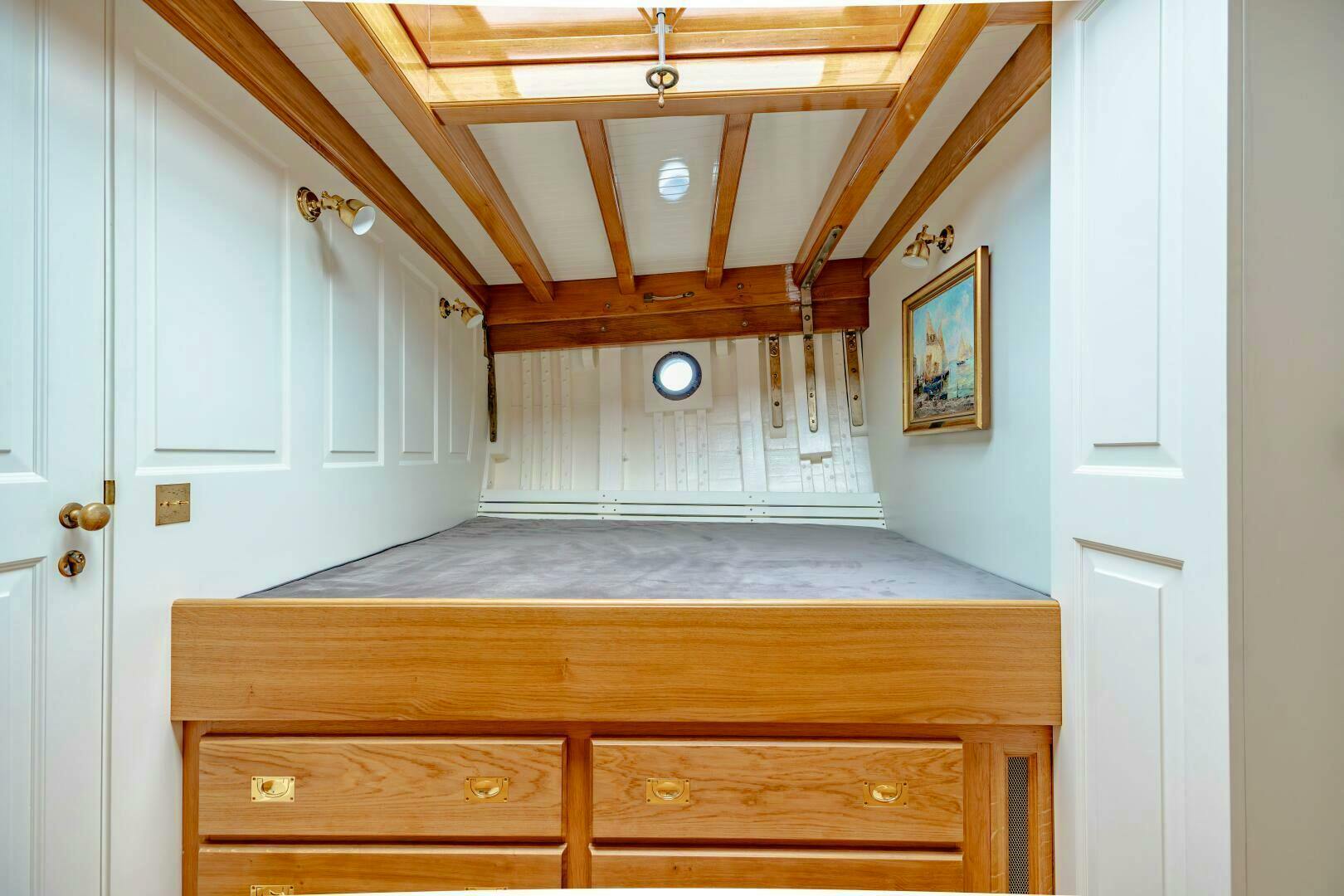

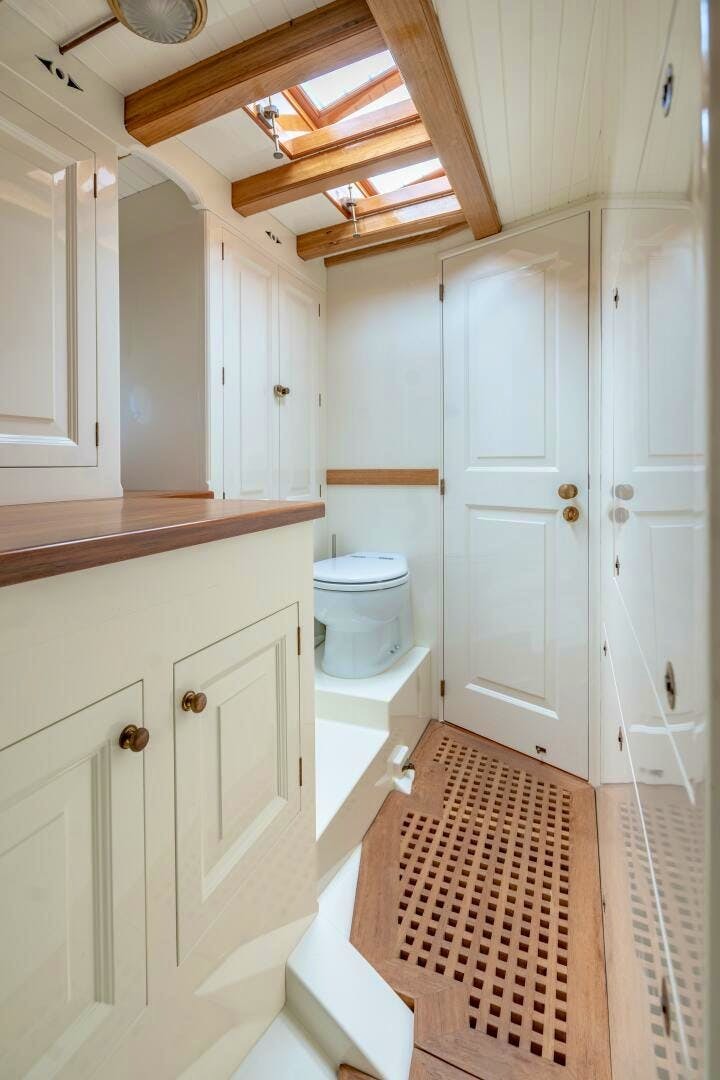

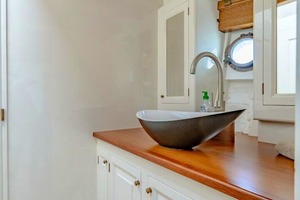

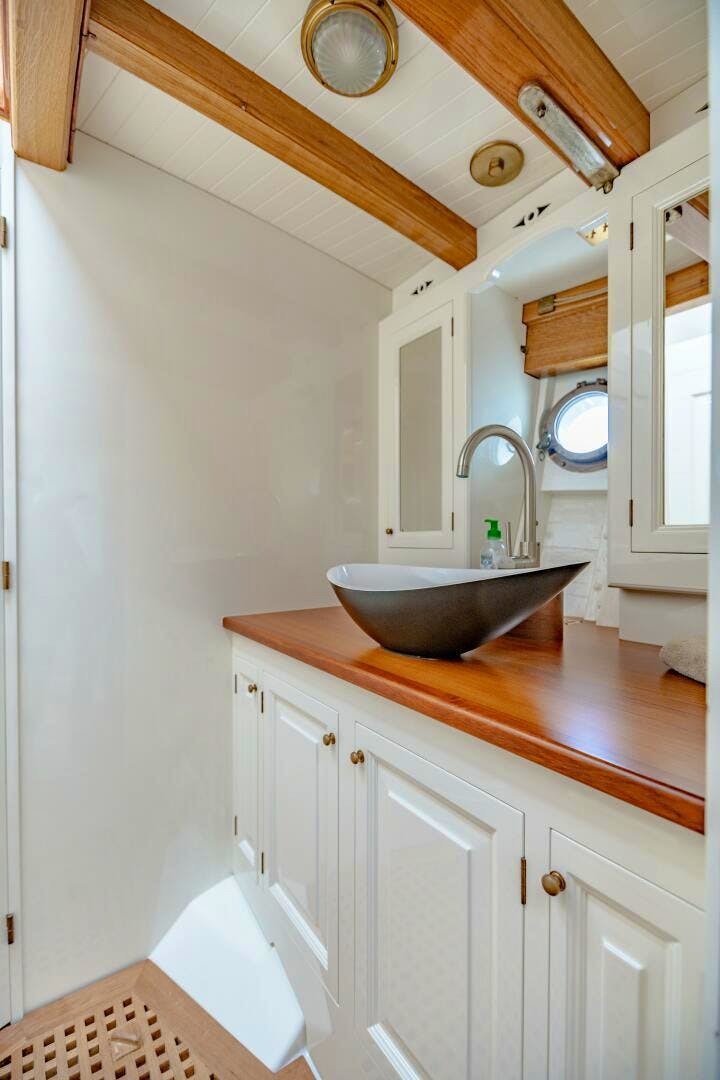

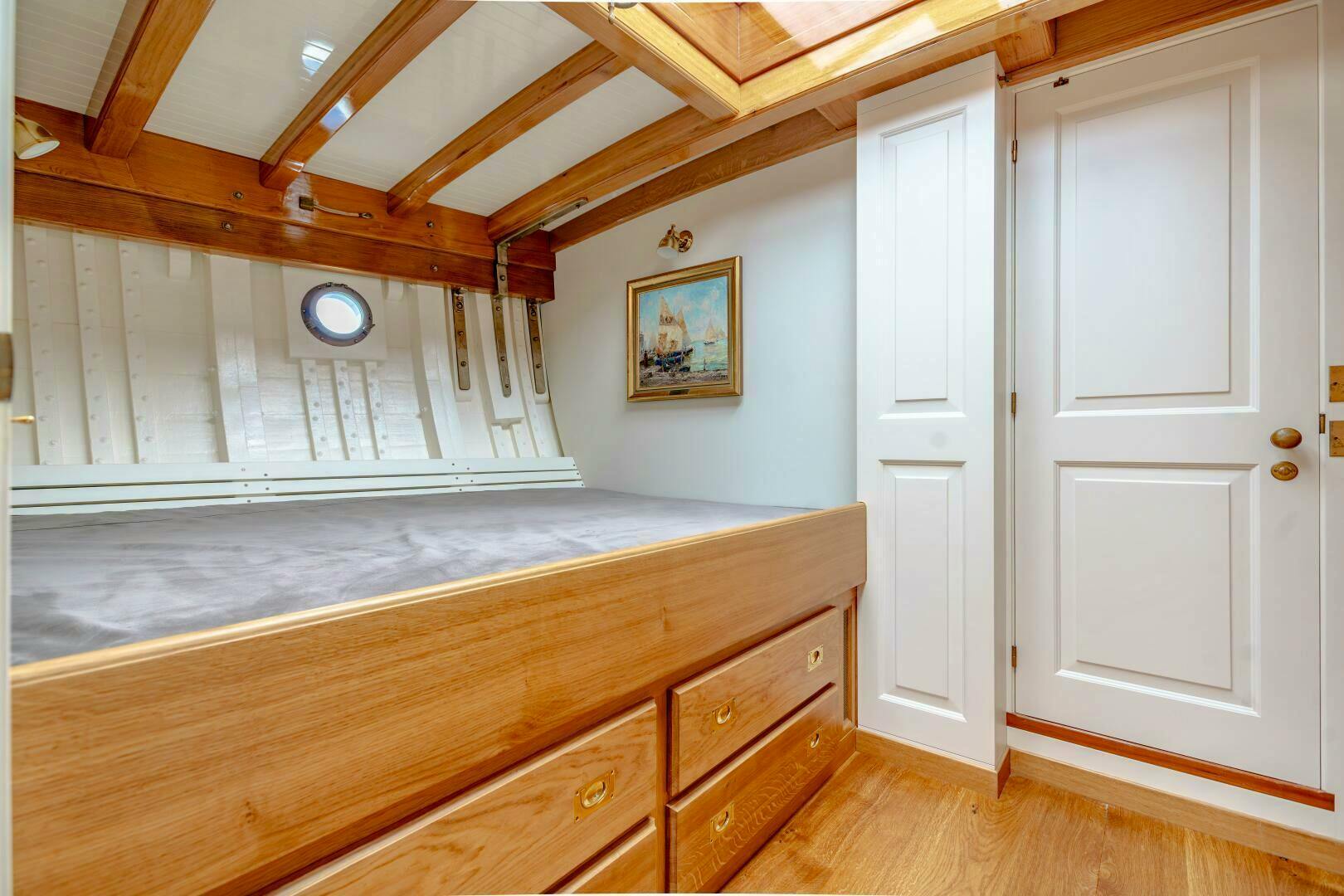

Moving forward you access the very comfortable double guest cabin located amidship, then the shower room and finally, another twin cabin.

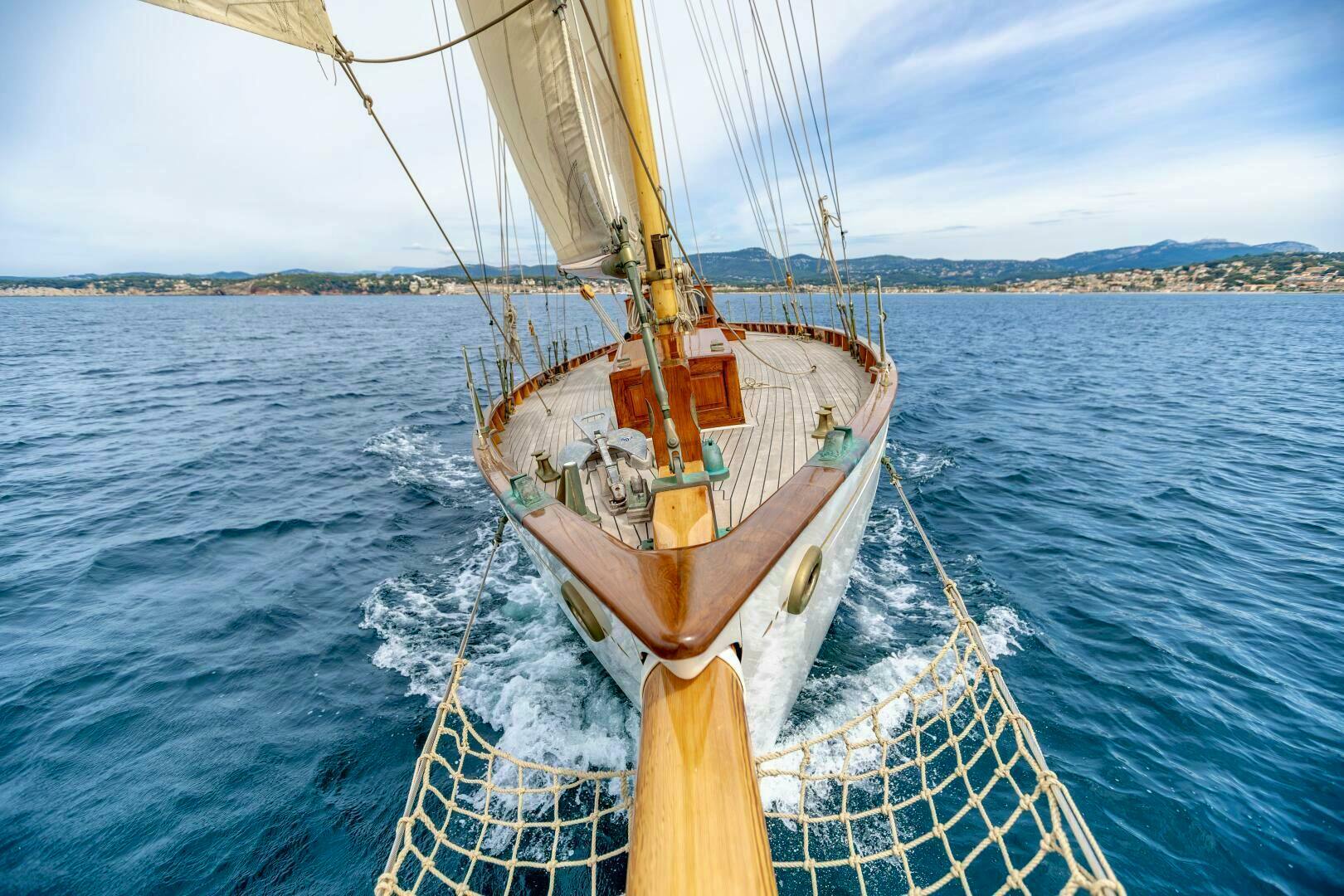

DECK

Anchor Windlass        1x Wilmex 2500 hydraulic

Hydraulic Winches     1x Wilmex 2500 / Vertical / fore deck

Electric winches:        3x Andersen 62ST / above deck compact motor 24V / aft deck

Manual winches:        - 2x Andersen 62ST / aft deck

                                  - 4x Andersen 40ST / 2 on each mast

PTO pumps:                Danfos OMR 25 electric

Navtec cylinders for all rigg

Anchor system:

- FOB HP anchor / 40 KG / Deck stored / Galvanized steel

- 100m galvanized steel chain / 13mm

- 10m spectra securing line / 14mm

- David launch an retrieving system

Hydraulic windlass

Passerelle material: New Mahogany structure / Bronze fittings / Teak planking

Teak new 2018

PAINT JOB

Topsides Paint job:     - Awlgrip primer, fairing compounds & Topcoat G/H line Oyster White - done in 2018

Underwater strip, re fair, new underwater epoxy treatment and antifouling – 2018, sanding & new coat yearly

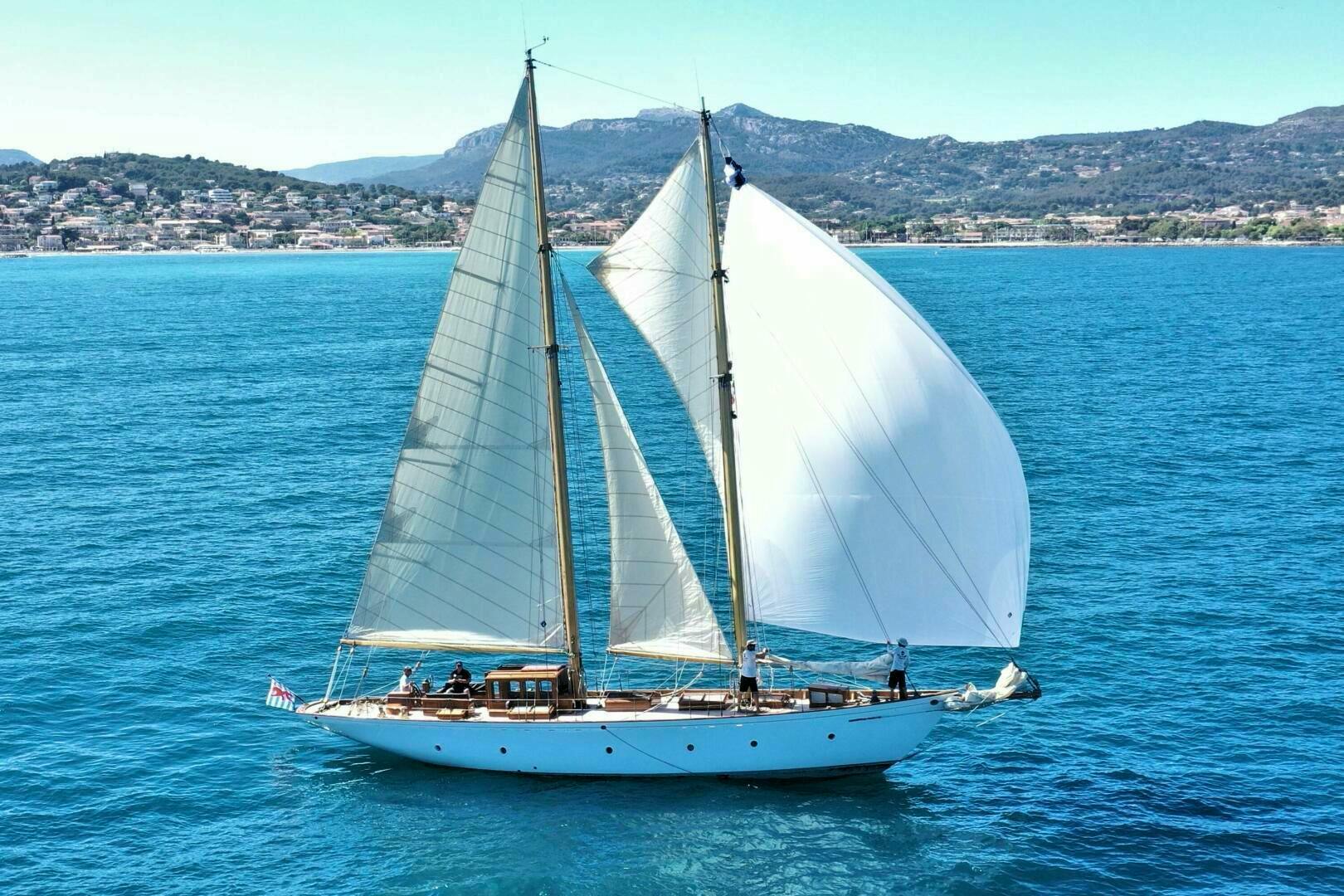

Mast & Rigging

Hall mast and boom   - 2 Masts Douglas Fir

                                  - 3 Booms Douglas Fir

                                   - 1 Bowsprit Douglas Fir

Standing rigging         - Stainless steel wire rope shrouds

                                   - bronze turnbuckles

                                   - bronze chain plates

                                   - bronze mast fittings

                                   - bronze stanchions

                                   - Dyneema running backstays

Running rigging          - All dyneema core ropes

                                   - Elmwood blocks with bronze sheaves

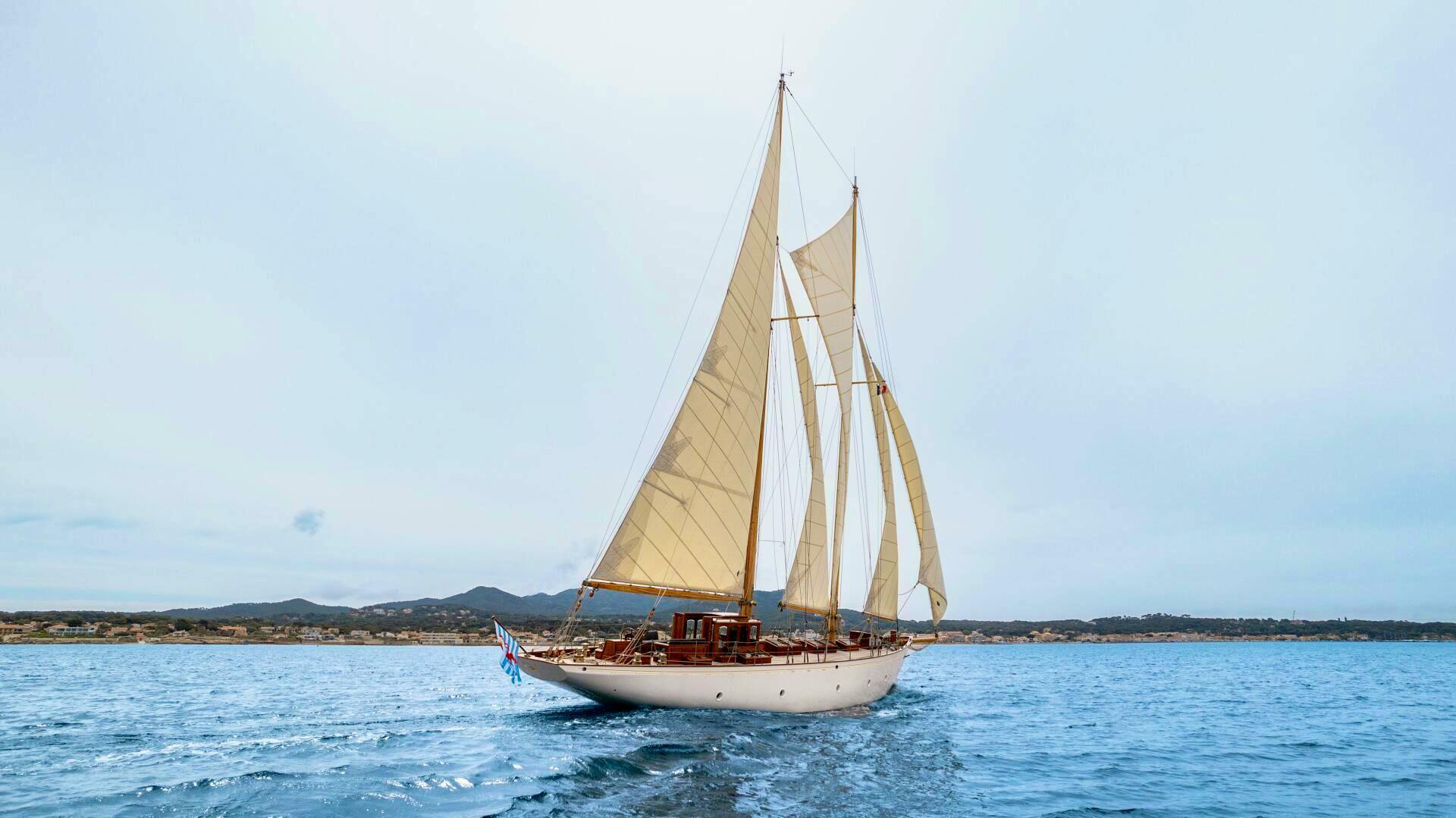

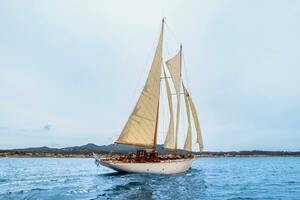

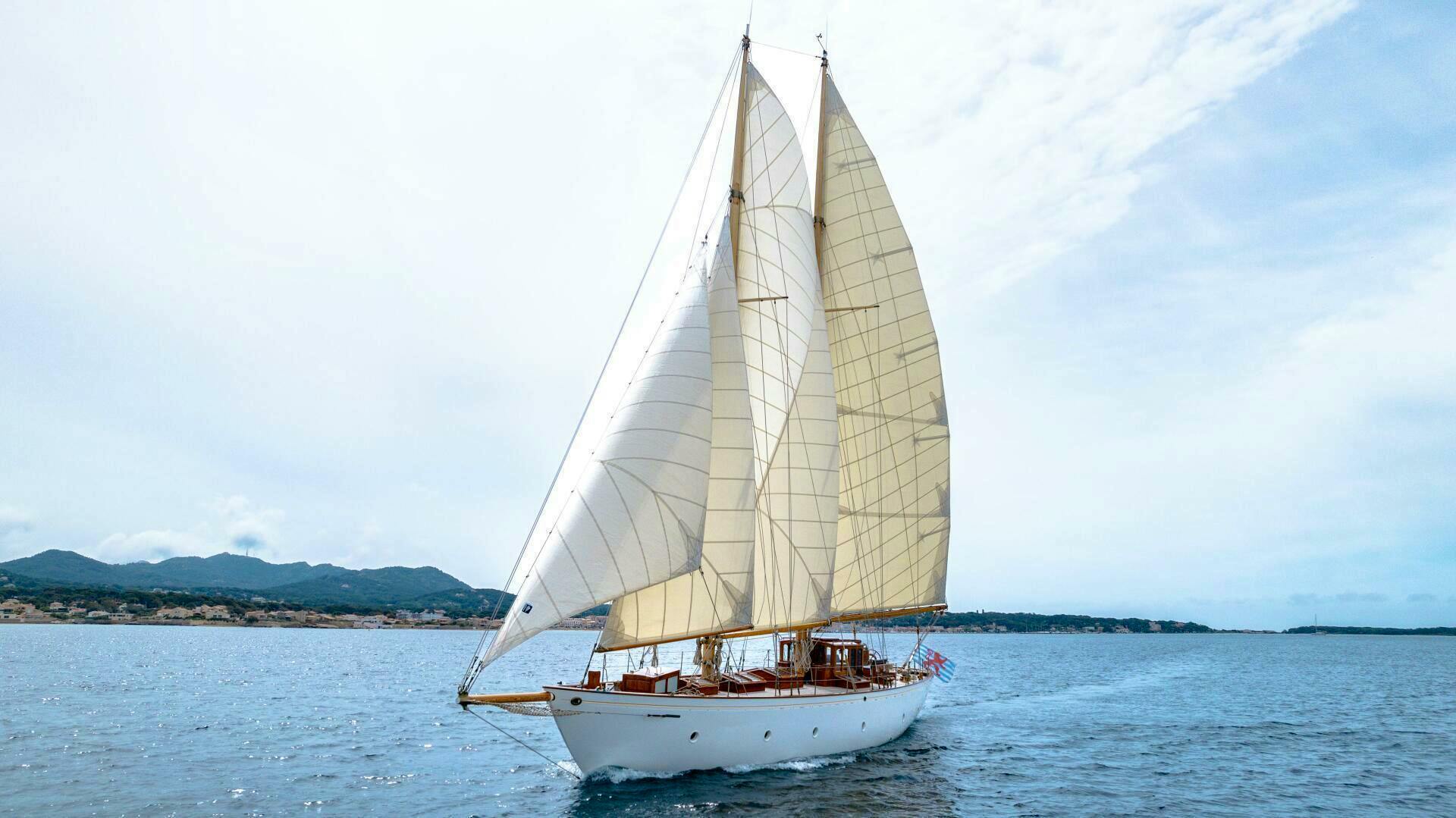

SAILS

- Main sail       68m2

- Main staysail 21m2

- Fisherman    20m2

- Staysail         19m2

- Jib                 30m2

- Jibtop 10m2

- Genaker       80m2

- All sails new in 2020

SAFETY & SECURITY

Alarm System: 4G Connected Alarm system including fire & smoke detector in saloon

Bilge alarm sensor - motion detectors in- & exterior

Life rafts:1x 4W / 6 person / Group A

Flare kit
